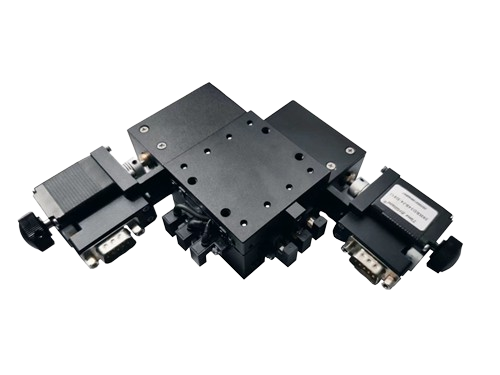

VL Integrated XY Stage

Part Number: VL-XY60-20

Advantages: Long-life precision lead screw, stable accuracy; ultra-compact for embedded integration.

Differentiation: 5kg load is lower, but high performance density in a tiny form factor.

Applications: Handheld spectrometers, microfluidic chip positioning, portable optics with extreme space constraints.

Images are for display purposes only.

Specifications

Travel Range	Table Size	Load Capacity	Max Speed	Resolution	Weight
20 mm	60 x 60 mm	5 kg	5 mm/sec	5μm / 0.25μm	1.2 kg

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Load Capacity	Table Size	Weight	Resolution	Max Speed
	VL-XY95-20	20 mm	10 kg	95 x 95 mm	3.2 kg	5μm / 0.25μm	6 mm/sec		VL-XY300-170	170 mm	60 kg	300 x 300 mm	10.3 kg	20μm / 1μm	25 mm/sec
