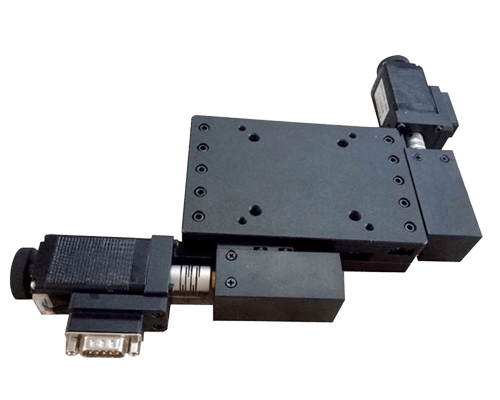

VL Integrated XY Stage
Integrated Low-Profile Precision 2D Stage
- Integrated Design: No stacking; shared base, lower CG, no perpendicularity errors.
- Rigid Guiding: Cross-roller guides, μm smoothness under load/lateral force.
Overview
Ultimate Compactness, Native Orthogonality
The VL-XY series is a planar motion solution tailor-made for space-constrained scenarios. It addresses the pain points of traditional stacked stages, which are "too thick and too wobbly", and ensures the perfect orthogonality of the X and Y axes through an integrated molding process. Whether it is for micro handheld devices or industrial heavy-load detection, it can provide the most stable two-dimensional precise positioning with the minimum space occupation.
Applications
- Microscopy: Automated whole-slide/dish scanning.
- Precision Alignment: Chip packaging, fiber array coupling.
- Vision Inspection: Display scratch detection, PCB defect inspection.
- Laser Machining: UV laser marking and micro-cutting.
Technical Specifications

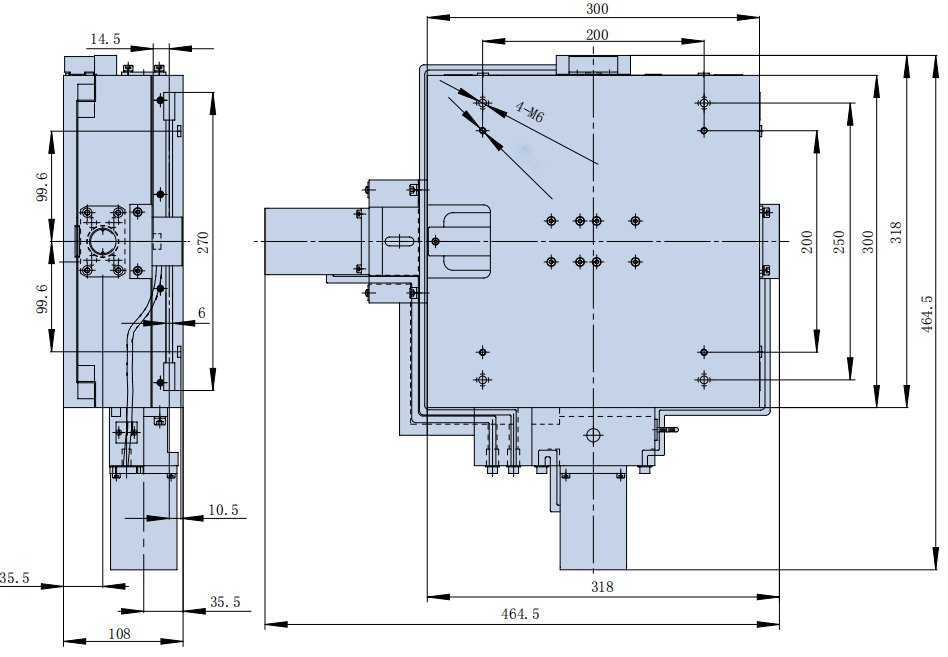

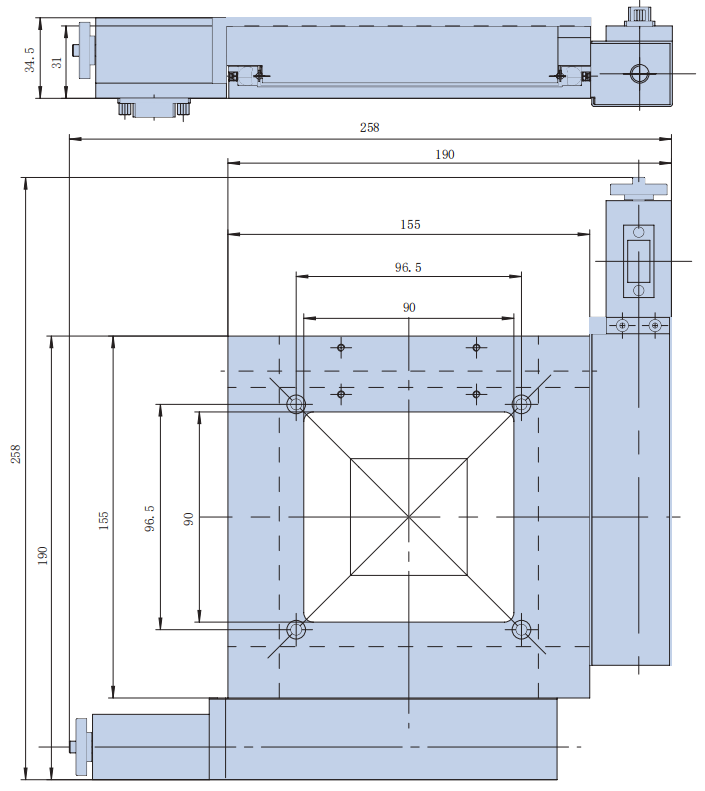

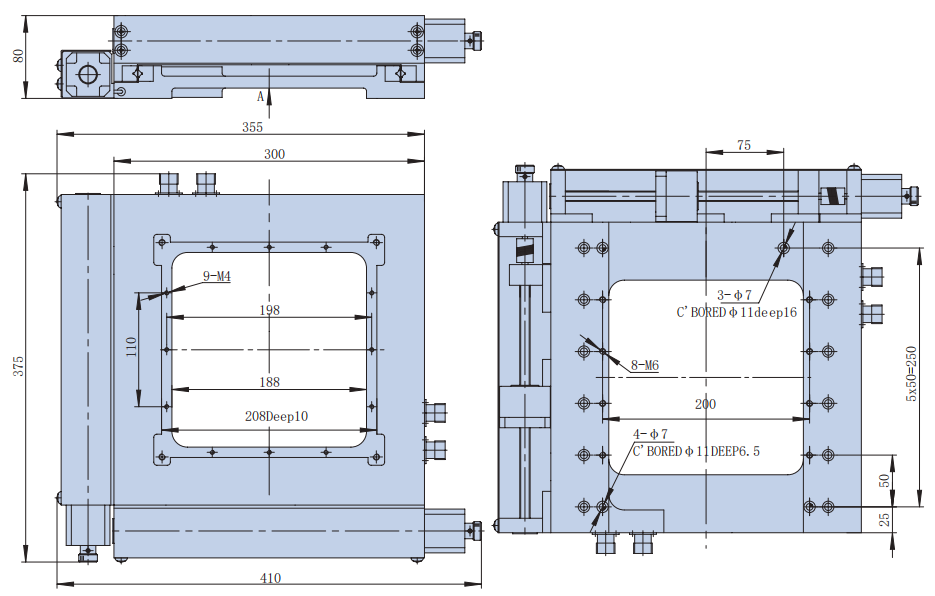

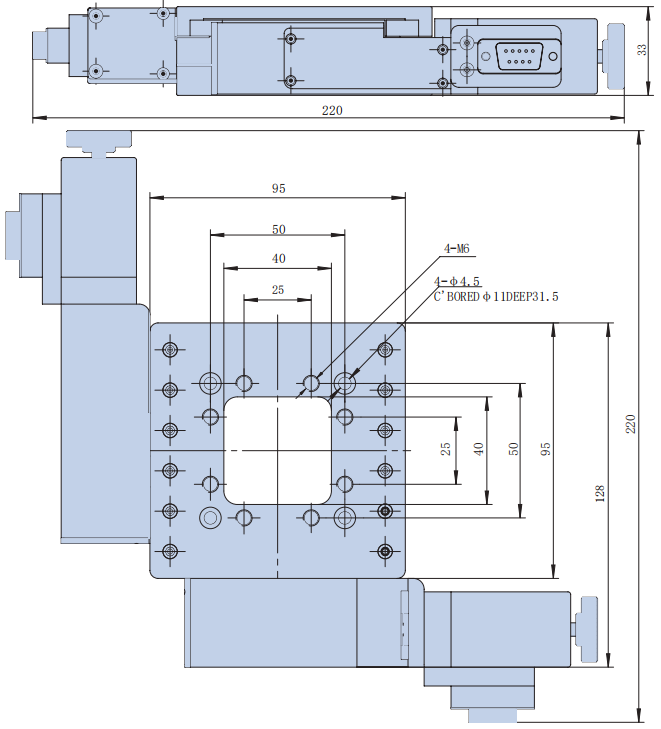

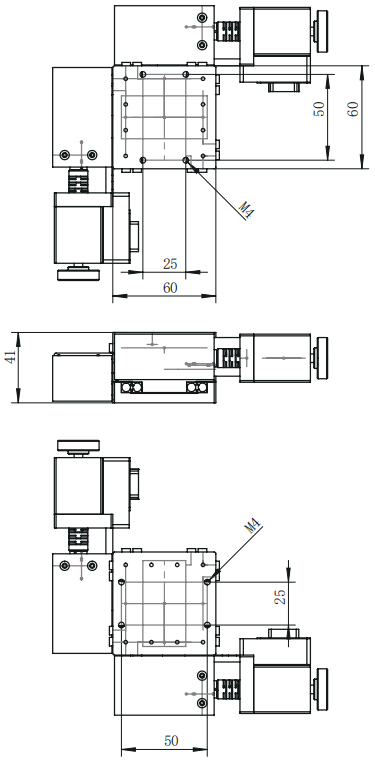

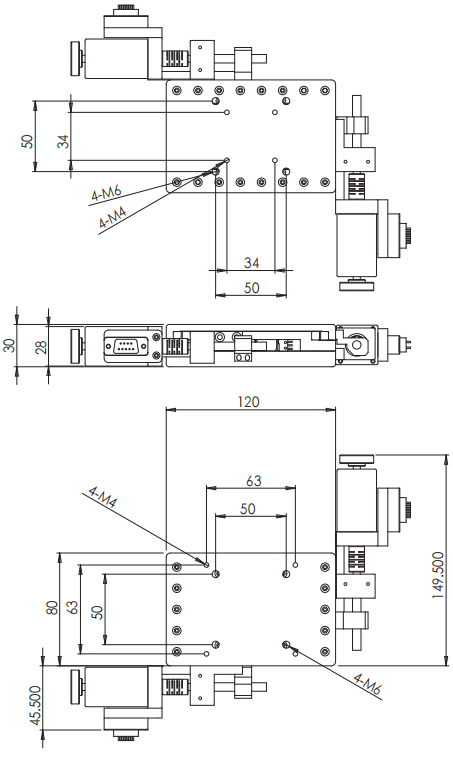

Mechanical Dimensions
