Overview
Introduction:
This product uses an indium gallium arsenide detector with a photosensitive range of 800nm~1700nm, suitable for near-infrared light measurement. It is an amplifying detector with 8 adjustable gain levels, capable of quantitative photoelectric conversion, featuring a wide dynamic range and a wide range of application scenarios. It is seamlessly compatible with the same model of Thorlabs, with more optional target surface sizes, excellent performance and high cost performance, and provides comprehensive technical support and non-standard customization services.
Features:
It adopts an indium gallium arsenide detector, covering the measurement of near-infrared light in the 800 - 1700nm range;
An amplifying detector with 8 adjustable gain levels, enabling quantitative photoelectric conversion;
It has a wide dynamic range, suitable for various photoelectric development scenarios;
Seamlessly compatible with the same model of Thorlabs, with optional multiple target surface sizes;
It has excellent performance and high cost performance, and provides technical support and non-standard customization services.
Dimension:
Specifications
Adjustable Gain Parameters

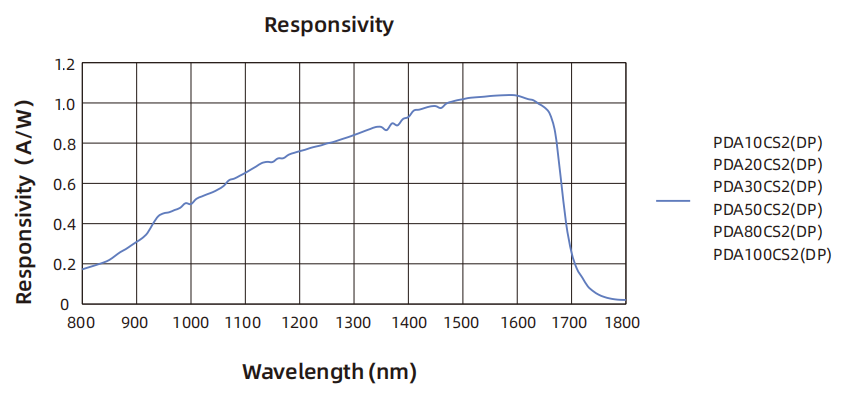

Responsivity
Serivce & Support
Explore Series
Model
Photosensitive Size
NEP
Response Time Constant
Bandwidth Range
Action
PDA10CS2(DP)
ф1.0mm
6.1×10⁻¹¹~2.28×10⁻¹² pW/Hz¹/²
10ns
DC~13MHz
PDA20CS2(DP)
ф2.0mm
4.6×10⁻¹¹~2.24×10⁻¹² pW/Hz¹/²
25ns
DC~11MHz
PDA30CS2(DP)
Ф3.0mm
3.8×10⁻¹¹~2.17×10⁻¹² pW/Hz¹/²
120ns
DC~4MHz
PDA50CS2(DP)
Ф5.0mm
2.2×10⁻¹¹~2.01×10⁻¹² pW/Hz¹/²
300ns
DC~1MHz
PDA80CS2(DP)
Ф8.0mm
1.5×10⁻¹¹~1.57×10⁻¹² pW/Hz¹/²
650ns
DC~100KHz
PDA100CS2(DP)
ф10.0mm
--
1200ns
DC~10KHz
