InGaAs-DET-Bd-Conv Photodetector

Low-cost, high-stability general-purpose photoelectric conversion devices

Indium gallium arsenide wide spectrum
Low bias, low noise, fast response
Compatible with Thorlabs conventionally
Stable, reliable and customizable

Download

Data Sheet

Overview

Introduction:

This indium gallium arsenide detector has a photosensitive range of 500~2600nm, suitable for visible light and infrared light measurement. It is designed as a biased type, featuring extremely low noise, fast response, and no gain. It has low cost and is suitable for conventional photoelectric detection scenarios. It is seamlessly compatible with the same model of Thorlabs and boasts excellent performance and high cost-effectiveness. Comprehensive technical support and non-standard customization services are provided.

Features:

Indium gallium arsenide material, 500~2600nm light measurement
Bias design with no gain, low noise and fast response
Low cost, compatible with conventional photoelectric detection
Excellent performance, with comprehensive technical support
Non-standard customization services can be provided on demand

Dimension:

Specifications

InGaAs-DET-Bd-Conv Series Specifications Sheet

Parameter Category	Same Parameter Content
Detector Material	Indium Gallium Arsenide (InGaAs)
Product Type	Biased, conventional photodetector

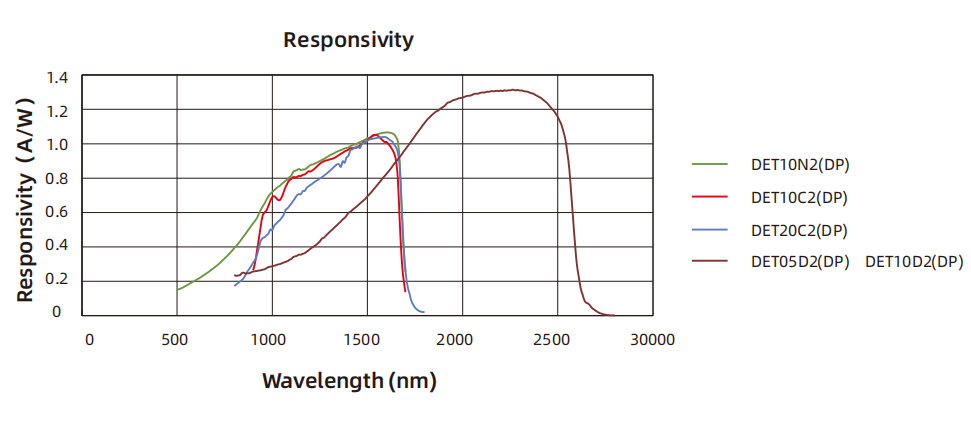

Spectral Response Attribute	All cover sub-bands within 500~2600nm, suitable for visible and near-infrared light measurement
Gain Characteristic	No gain
Output Voltage	Approx. 9V under Hi-Z load, approx. 170mV under 50Ω load
Dimensions	2.79"×1.96"×0.89" (70.9mm×49.8mm×22.5mm)
Net Weight	0.1kg
Operating Temperature	10~50℃
Storage Temperature	-20~70℃
Power Supply Battery	A23, 12VDC, 40mAh
Signal Interface	BNC female connector
Optical Interface	SM1×1, SM0.5×1
Compatibility	Compatible with THORLABS equivalent products
