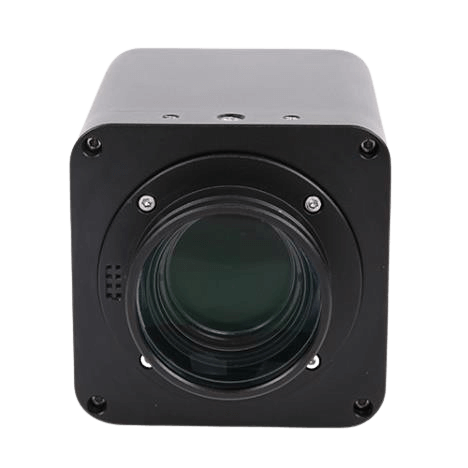

VLAFDM-SC412 Microscope Cameras
Precise focusing + high-definition output
- AFDM Auto-Focus and Dynamic Matching
- High-definition and high-frame-rate imaging performance
- Strong compatibility and convenient integration
- Scene-specific Imaging Optimization
Overview
Introduction:

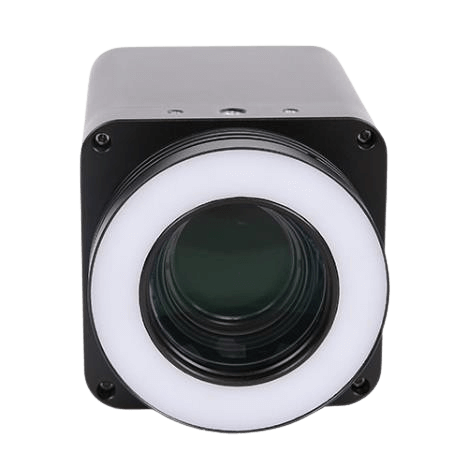

VLAFDM-SC412 is an integrated digital microscope system that combines an electric continuous zoom lens, an automatic focusing module, a high-sensitivity CMOS camera, and an intelligent lighting system. It is specifically designed for scenarios such as industrial inspection, medical observation, teaching, and scientific research.
Its core technical architecture includes:
- Electric continuous zoom lens
- Automatic focusing system
- 4K imaging module
- Low noise
As part of VenusLab's selected imaging product portfolio, AFDM412 features both industrial-grade and scientific research-grade performance as well as ultra-high cost-effectiveness, enabling researchers, engineers, and educators to achieve more precise adaptation to scenarios.
Features:
- 5 groups 16 elements EMZO with 0.0218~0.392X, 18 zoom ratio, supports auto and manual focus
- 250mm standard working distance with 205~255mm depth of field
- Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio

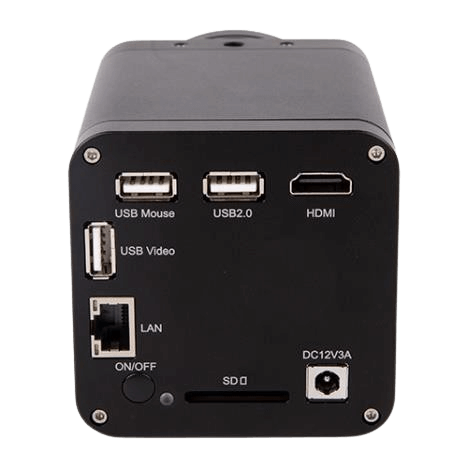

- 4K HDMI/USB/ETH/WiFi multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Built-in mouse control software XFCamView, all functions can be realized with USB mouse

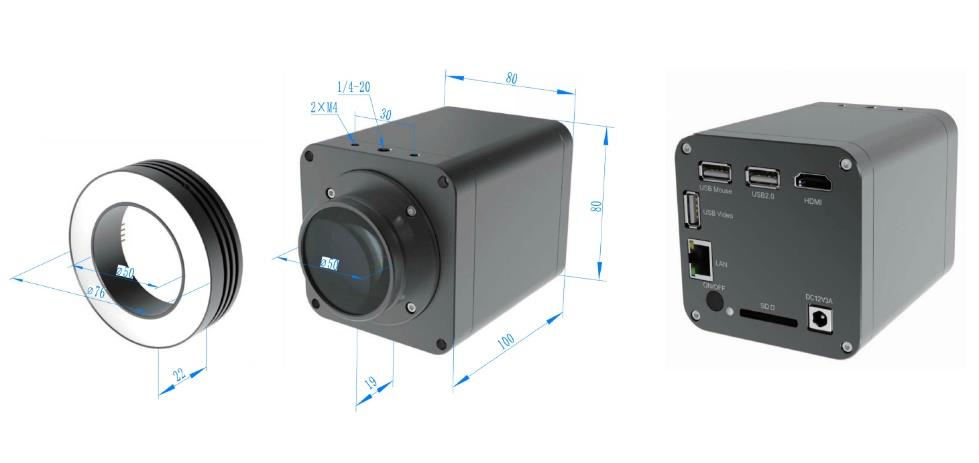

Dimension:
Specifcations

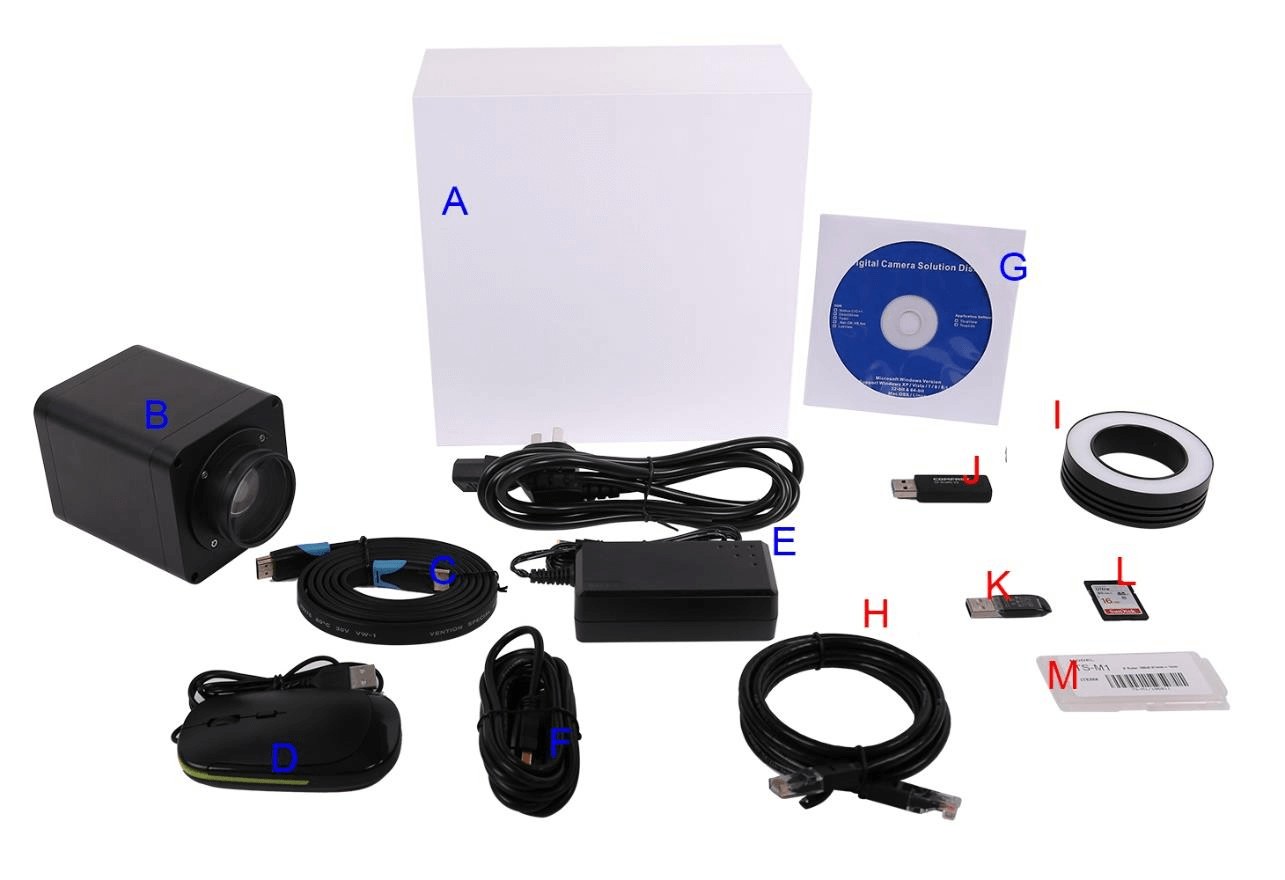

Packing List

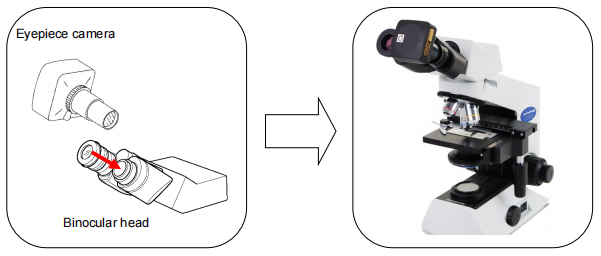

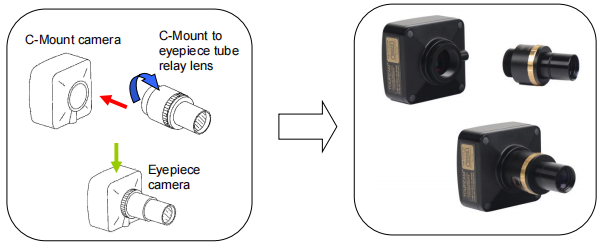

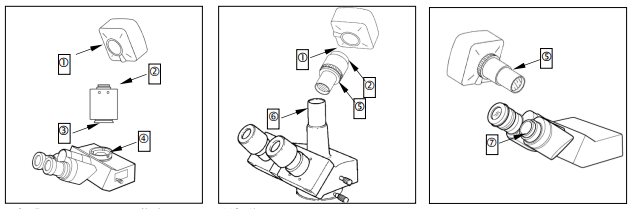

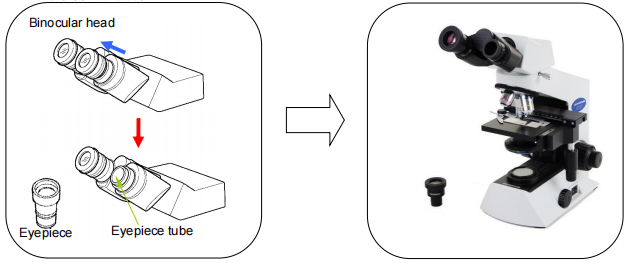

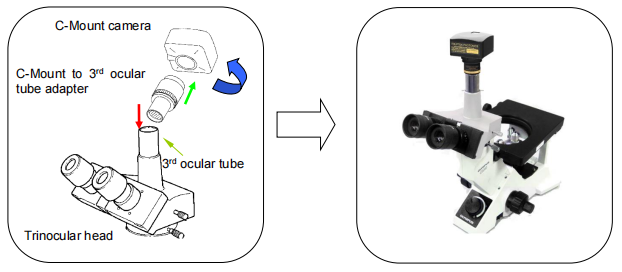

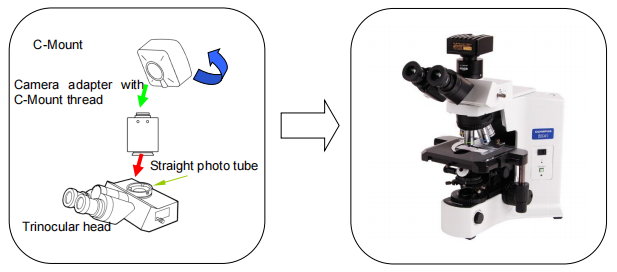

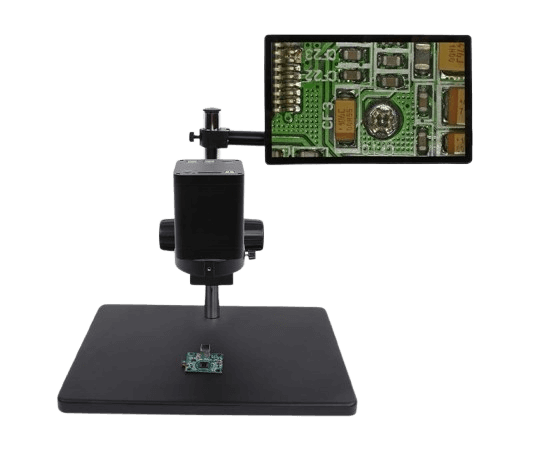

Microscope Configuration
