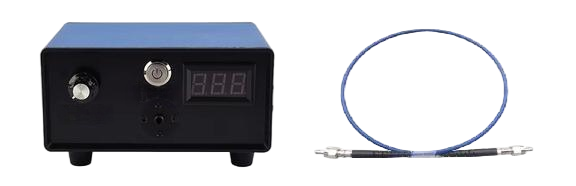

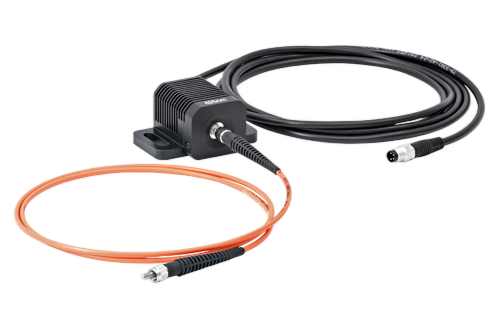

Venuslab™ Series - Fiber Coupled LED Specifications

Model Name	Wavelength	Power Output (approx.)	Spectral FWHM (Line Width)	Interface
VL-FC-280	280 nm	2 mW	15 nm	SMA905/FC
VL-FC-308	308 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-325	325 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-340	340 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-365	365 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-375	375 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-385	385 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-395	395 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-405	405 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-415	415 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-430	430 nm	0.5 mW	15 nm	SMA905/FC
VL-FC-455	455 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-470	470 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-490	490 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-505	505 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-530	530 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-554	554 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-565	565 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-590	590 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-595	595 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-617	617 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-625	625 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-660	660 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-680	680 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-700	700 nm	8.5 mW	15 nm	SMA905/FC
VL-FC-740	740 nm	9 mW	15 nm	SMA905/FC
VL-FC-780	780 nm	9 mW	15 nm	SMA905/FC
VL-FC-810	810 nm	9 mW	15 nm	SMA905/FC
VL-FC-850	850 nm	9 mW	15 nm	SMA905/FC
VL-FC-880	880 nm	9 mW	15 nm	SMA905/FC
VL-FC-940	940 nm	9 mW	15 nm	SMA905/FC
VL-FC-970	970 nm	9 mW	15 nm	SMA905/FC
VL-FC-1060	1050/1060 nm	9 mW	15 nm	SMA905/FC
VL-FC-1100	1100 nm	9 mW	15 nm	SMA905/FC
VL-FC-1200	1200 nm	9 mW	15 nm	SMA905/FC
VL-FC-1300	1300 nm	9 mW	15 nm	SMA905/FC
VL-FC-1450	1450 nm	9 mW	15 nm	SMA905/FC
