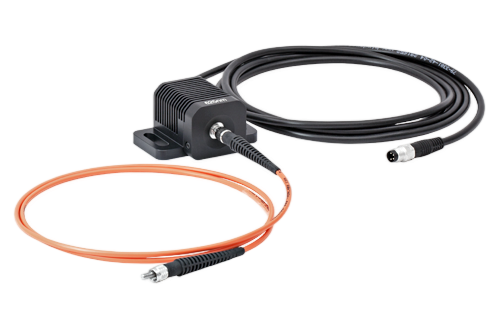

Infrared LED

High-end optoelectronic solutions designed for advanced research, biomedical, and industrial precision inspection.

Full Spectrum Technology
High Radiant Intensity
Flexible Beam Control
Industrial Reliability

Download

Infrared LED

Overview

Venuslab™: Redefining Laboratory-Grade Precision Light Sources

The Venuslab™ Laboratory Precision Infrared/Optoelectronic LED Series represents the pinnacle of high-performance solid-state illumination technology, engineered to meet the rigorous demands of modern photonics research, biomedical instrumentation, and high-precision industrial sensing.

Unlike standard commercial-grade LEDs, the Venuslab series not only covers a vast spectral range from Ultraviolet (UV) and Visible to Near-Infrared (NIR) and Short-Wave Infrared (SWIR), but also delivers a qualitative leap in beam quality and radiometric stability.

This series features industrial-standard TO-18, TO-39, and T-1 3/4 hermetic metal or epoxy packages, integrated with high-precision glass lenses or parabolic reflectors. This optical design significantly enhances photon extraction efficiency, generating high-intensity output beams. Addressing the inherent divergence of LEDs, the Venuslab series is optimized to function either as standalone high-radiance point sources or to couple perfectly with Venuslab’s aspheric lens kits to output high-quality collimated parallel light, thereby solving the technical bottleneck of coupling traditional LEDs into optical fibers or spectrometers.

Detailed Applications

Optical Coherence Tomography (OCT)
Non-invasive Glucose & SpO2 Monitoring
Fluorescence Excitation
NIR Spectroscopy Analysis
Gas Sensing & Environmental Monitoring
Security & Night Vision Illumination
Fiber Optic Component Testing
Free Space Optics (FSO)

Usage & Storage Recommendations

Drive & Thermal Management: LEDs are current-driven devices and must be powered by a Constant Current Source. For high-power models exceeding 100mA (e.g., TO-39 packages), it is recommended to mount them on aluminum or copper heat sinks to prevent junction temperature rise, which can cause wavelength drift or lifetime degradation.

ESD Protection: Infrared LED chips are sensitive to electrostatic discharge. Always wear anti-static wrist straps when handling and ensure soldering equipment is properly grounded.

Optical Cleaning: If dust accumulates on the glass lens surface, gently wipe it with anhydrous ethanol and optical lens paper. Do not use rough cloths to avoid scratching the lens surface and degrading beam quality.

Technical Specifications Table

Venuslab™ Series - Infrared LED Specifications

Model Name	Center Wavelength	Optical Power	Spectral FWHM	Viewing Half Angle	Max DC Forward Current	Package
VL-LED781G	780 nm	6 mW	35 nm	55°	100 mA	TO-18
VL-LED780G	780 nm	18 mW	30 nm	10°	100 mA	T-1 3/4
VL-LED851G-W	850 nm	8 mW	40 nm	55°	100 mA	TO-18
VL-LED851G-N	850 nm	18 mW	40 nm	10°	100 mA	TO-18
VL-LED870G	870 nm	22 mW	40 nm	10°	100 mA	T-1 3/4
VL-LED880L-Pro	880 nm	50 mW (0.6 W Pulsed)	80 nm	7°	500 mA	TO-39
VL-LED880G-Max	880 nm	100 mW	80 nm	55°	500 mA	TO-39
VL-LED910G	910 nm	12 mW	35 nm	7°	100 mA	T-1 3/4
VL-LED940G	940 nm	18 mW	50 nm	10°	100 mA	T-1 3/4
VL-LED1050G	1050 nm	2.5 mW	55 nm	15°	100 mA	T-1 3/4
VL-LED1070G	1070 nm	7.5 mW	80 nm	15°	100 mA	T-1 3/4
VL-LED1200G	1200 nm	2.5 mW	100 nm	15°	100 mA	T-1 3/4
VL-LED1300G	1300 nm	2 mW	100 nm	15°	100 mA	T-1 3/4
VL-LED1450G	1450 nm	2 mW	100 nm	15°	100 mA	T-1 3/4
VL-LED1550G	1550 nm	2 mW	100 nm	15°	100 mA	T-1 3/4
