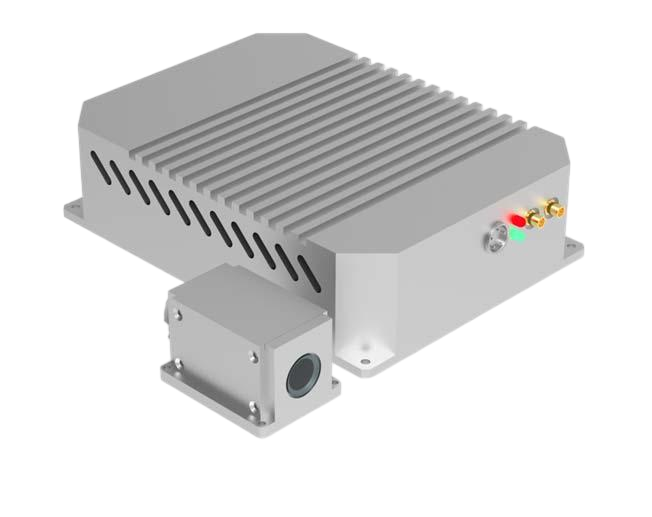

ErFemto-780 Elite

A modular, industrial-grade stable 780nm near-infrared femtosecond fiber laser designed for Terahertz (THz) research and two-photon experiments.

Ultrashort Pulse Performance
Dual-Wavelength Synchronization
Highly Integrated Modular Design
High Pulse Contrast

Download

ErFemto-780 Elite

Overview

Unlocking NIR Femtosecond Potential: Compact Engine for THz and Precision Metrology

The ErFemto-780 Elite Series utilizes automatic mode-locking and low-noise fiber amplification technology, converting 1560nm fundamental light into 780nm femtosecond pulses via a high-efficiency frequency doubling module.

Achieving miniaturized optoelectronic design, it ensures ultrashort pulses of <100fs through high-precision dispersion compensation, making it an ideal alternative to complex solid-state lasers as a seed source or standalone light source.

Applications

THz Time-Domain Spectroscopy
Laser Ranging
Micro-nano 3D Printing
Seed Source for Fiber/Solid-State Lasers

Interfaces & Operation

Equipped with RS232 interface for remote PC control.
Provides TTL synchronization output port for easy syncing with detection equipment.

Environmental Requirements

Operating Temperature: 18 - 32 ℃.

Technical Data

Detailed Technical Specifications of ErFemto-780 Elite

Parameter	ErFemto-780 Elite 10	ErFemto-780 Elite 20	ErFemto-780 Elite 40	ErFemto-780 Elite 60
Central Wavelength	780 nm	780 nm	780 nm	780 nm
Pulse Duration	< 100 fs	< 100 fs	< 100 fs	< 100 fs
Repetition Rate	80 MHz (Standard)	80 MHz (Standard)	80 MHz (Standard)	80 MHz (Standard)
Average Power	10 mW	20 mW	40 mW	60 mW
Pulse Energy	0.12 nJ	0.25 nJ	0.50 nJ	0.75 nJ
Spectral Bandwidth	> 9 nm	> 9 nm	> 9 nm	> 9 nm
Polarization Extinction Ratio	Linear, > 15 dB	Linear, > 15 dB	Linear, > 15 dB	Linear, > 15 dB
Power Stability (RMS)	< 1%	< 1%	< 1%	< 1%
Output Type	Free space, beam diameter 1 mm	Free space, beam diameter 1 mm	Free space, beam diameter 1 mm	Free space, beam diameter 1 mm
Voltage	12V	12V	12V	12V

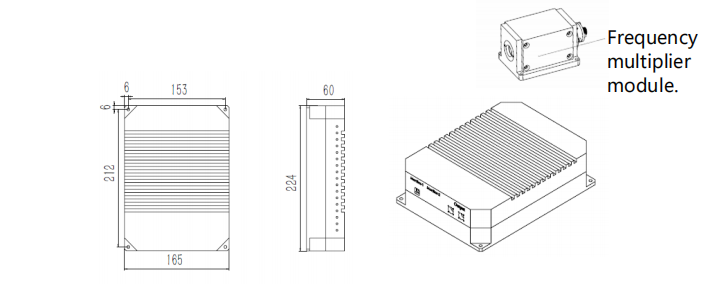

Laser Module Size	190 x 135 x 50 mm³	224 x 165 x 60 mm³	224 x 165 x 60 mm³	224 x 165 x 60 mm³
SHG Module Size	69.5 x 52 x 44 mm³	69.5 x 52 x 44 mm³	69.5 x 52 x 44 mm³	69.5 x 52 x 44 mm³
