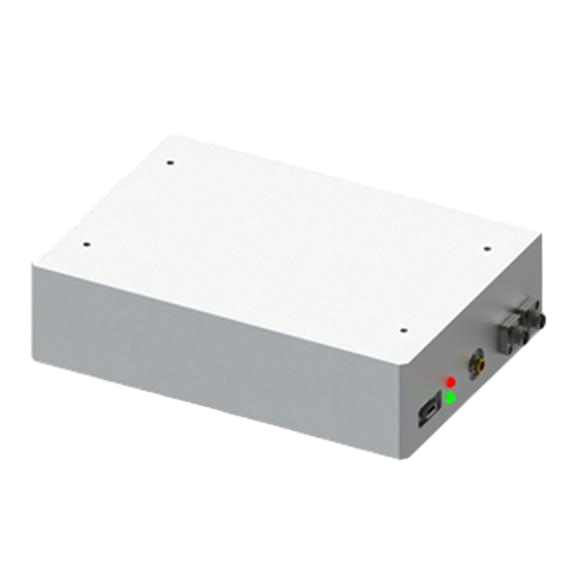

YbPico30 Elite

A 1030nm fixed repetition rate picosecond fiber seed source designed for industrial and scientific amplification systems, featuring Fourier transform-limited pulses and exceptional environmental stability.

Unique Mode-Locking State
Perfect Pump Protection
Fourier Transform Limited Pulse
Compact Integration

Download

YbPico30 Elite

Overview

The Ideal "Heart" for Amplifiers: Highly Stable Picosecond Seed Source

The YbPico30 Elite Series is a fixed repetition rate (typically 20MHz) near-infrared picosecond all-fiber laser.

Utilizing automatic mode-locking and low-noise fiber amplification technologies, it delivers 10ps pulses at 1030nm. Specifically optimized as a seed source for fiber and solid-state amplifiers, it eliminates complex adjustments while providing superior pulse quality and signal-to-noise ratio.

Applications

Seed for High-Power Fiber Lasers
Seed for Solid-State/Regenerative Amplifiers
Precision Optical Metrology & Inspection

Interfaces & Operation

Fiber Output: Standard 0.5m PM fiber with FC/APC connector.

Control: RS232 interface, TTL synchronized pulse output.

Environmental Requirements

Operating Temperature: 18 - 32 ℃.; Power Supply: 12V/3A DC.

Technical Data

Detailed Technical Specifications of YbPico30 Elite

Parameter	YbPico30 Elite 10	YbPico30 Elite 20	YbPico30 Elite 40
Central Wavelength	1030 ± 0.5 nm	1030 ± 0.5 nm	1030 ± 0.5 nm
Pulse Duration	10 ps (Opt: 4 - 120 ps)	10 ps (Opt: 4 - 120 ps)	10 ps (Opt: 4 - 120 ps)
Spectral Bandwidth (3dB)	< 0.5 nm	< 0.5 nm	< 0.5 nm
Repetition Rate	20 MHz (Opt: 10-80 MHz)	20 MHz (Opt: 10-80 MHz)	20 MHz (Opt: 10-80 MHz)
Average Power	> 1 mW	> 20 mW	> 40 mW
Pulse Energy	> 0.05 nJ	> 1.0 nJ	> 2.0 nJ
Chirp	Fourier transform limited	Fourier transform limited	Fourier transform limited
Polarization Extinction Ratio	Linear, > 20 dB	Linear, > 20 dB	Linear, > 20 dB
Power Stability (RMS)	< 1%	< 1%	< 1%
Optical Output	PM Fiber, FC/APC	PM Fiber, FC/APC	PM Fiber, FC/APC
Control Interface	RS232	RS232	RS232
Voltage / Current	12V / 3A	12V / 3A	12V / 3A

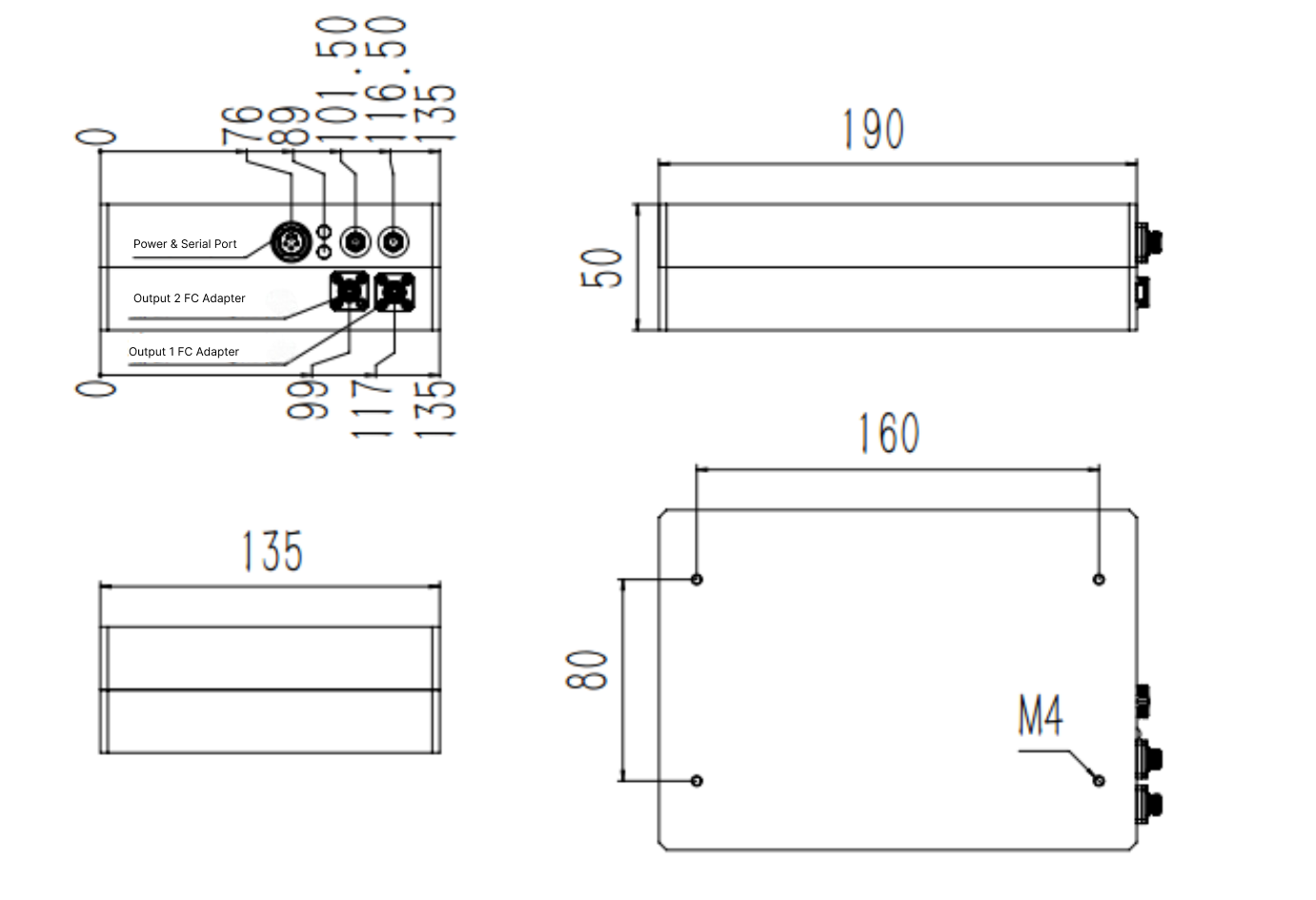

Dimensions	190 x 135 x 50 mm³	190 x 135 x 50 mm³	190 x 135 x 50 mm³
