UltraSense 11K Spectrometer
Balance "practical performance" and "cost-effectiveness"
- Wide spectrum adaptation and high flexibility
- Excellent optical performance
- Rich interfaces and expansion capabilities
Enter your email address to get free access, receive a product brochure, or enjoy special discounts.
Overview
Specifications
Interface Definition
Typical Spectrum
Introduction:

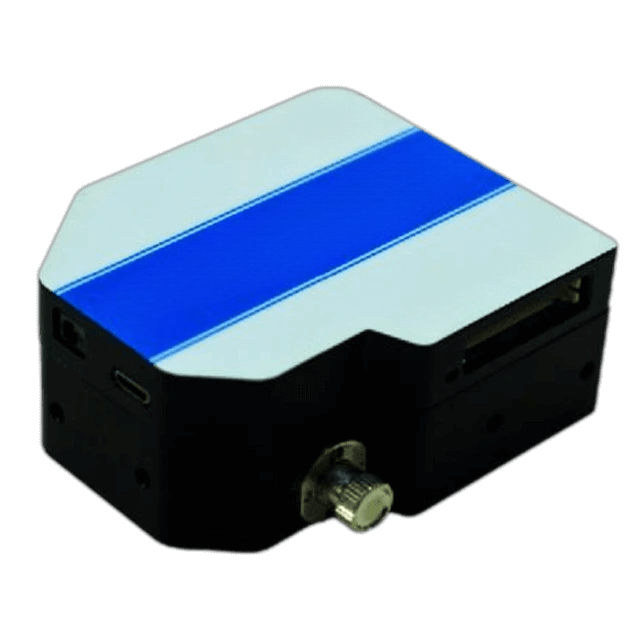

UltraSense 11K Spectrometer is a basic fiber optic spectrometer launched by Venuslab. Making it easy to deploy in space-constrained scenarios. Its spectral range is configurable (190-1100nm), and it is equipped with a 2048-pixel channel CCD detector. The fiber interface is Key-SMA905, supporting USB 2.0, RS232 communication interfaces, and a 24PIN extended function interface, which can realize the enabling, intensity control, and power feedback of the supporting light source.
This product can meet various measurement scenarios such as color measurement, radiation measurement, absorption measurement, fluorescence spectroscopy, and Raman spectroscopy. It has a working temperature range of 0-40℃ and a humidity range of 20-85%, demonstrating good environmental adaptability.
Features:
- Compact and small structural design
- Configurable wide spectral range
- Excellent optical performance and stability
- Flexible optical fiber adaptation capability
- Rich interfaces and extended functions
Dimension:

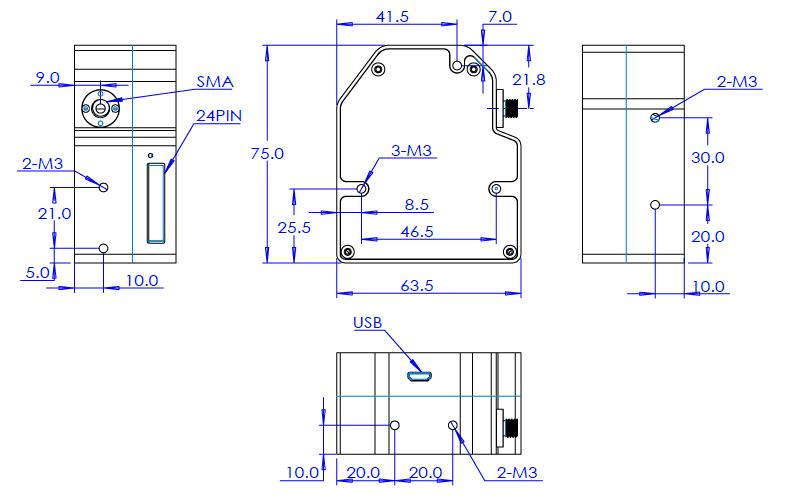

2D Dimension Drawing of VL11639-190-540
2D Dimension Drawings of Other Standard Models
Explore Series
UltraSense 11K Spectrometer
VL11639-200-400
It adopts an ultraviolet-enhanced CMOS detector, optimized specifically for the 200-400nm deep ultraviolet band, and is equipped with a 25μm slit to achieve an ultra-high resolution of 0.5nm@25μm.
UltraSense 11K Spectrometer
VL11639-190-540
The spectral range covers 190-540nm, including deep ultraviolet (190-400nm) and short-wave visible light (400-540nm). It is the model with the lowest starting wavelength (190nm) in the series.
UltraSense 11K Spectrometer
VL11639-790-1050
Its spectral range is focused on the 790-1050nm near-infrared band, making it the only model in the series exclusively dedicated to the near-infrared range.
UltraSense 11K Spectrometer
VL11639-200-920
The spectral range spans 200-920nm, covering deep ultraviolet (200-400nm), full visible light (400-760nm), and short-wave near-infrared (760-920nm).
