CloudSense IoT Spectrometer

Introduction to CloudSense IoT Spectrometer：

The ultraviolet high-sensitivity back-illuminated linear array CMOS detector has 2048/4096 optional spectral channels, which can meet detection tasks with different precision requirements. This detector has a good response to ultraviolet light, with a minimum wavelength of 180nm, and can capture weak spectral signals in the deep ultraviolet band. It is suitable for the detection of substances sensitive to ultraviolet light.

In the field of industrial manufacturing, it is used for on-site composition analysis of steel furnaces, monitoring of semiconductor plasma etching, etc.; in terms of environmental monitoring, it can real-time detect water/atmospheric pollutants and screen for heavy metals in soil; in the field of life sciences, it helps in the research of biomolecular dynamics and the analysis of drug excited states; in the intelligent quality inspection process, it can detect food additives, identify the authenticity of three-way catalytic converters and other scenarios.

Product specifications

Interface description

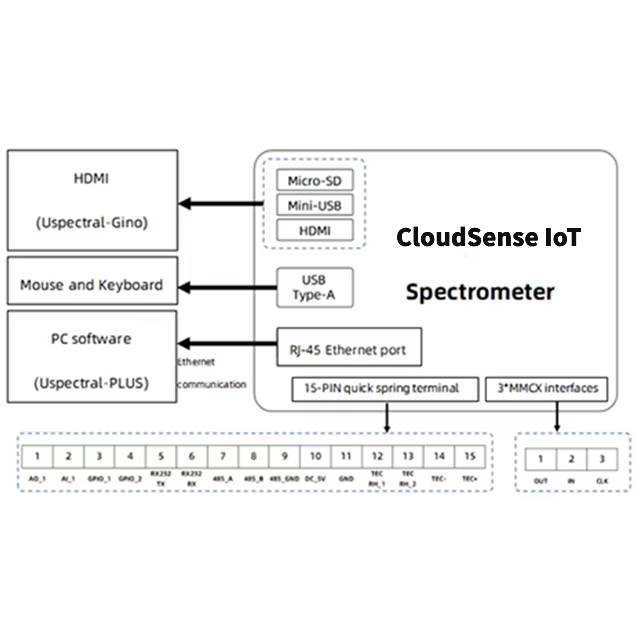

The diagram below shows the various interfaces of the CloudSense IoT Spectrometer. The 1000M RJ-45 Ethernet port is used for data transmission, while the HDMI port allows for connection to an external display. The USB 2.0 HOST port supports external devices such as a keyboard or mouse. The 15-pin interface is for secondary development of the spectrometer, and the three MMCX interfaces are used for external triggering.

Definition of the wiring pin

The 24pin port uses a 2.0MM-24P socket.

The 15-pin interface uses a 15-pin quick spring terminal.

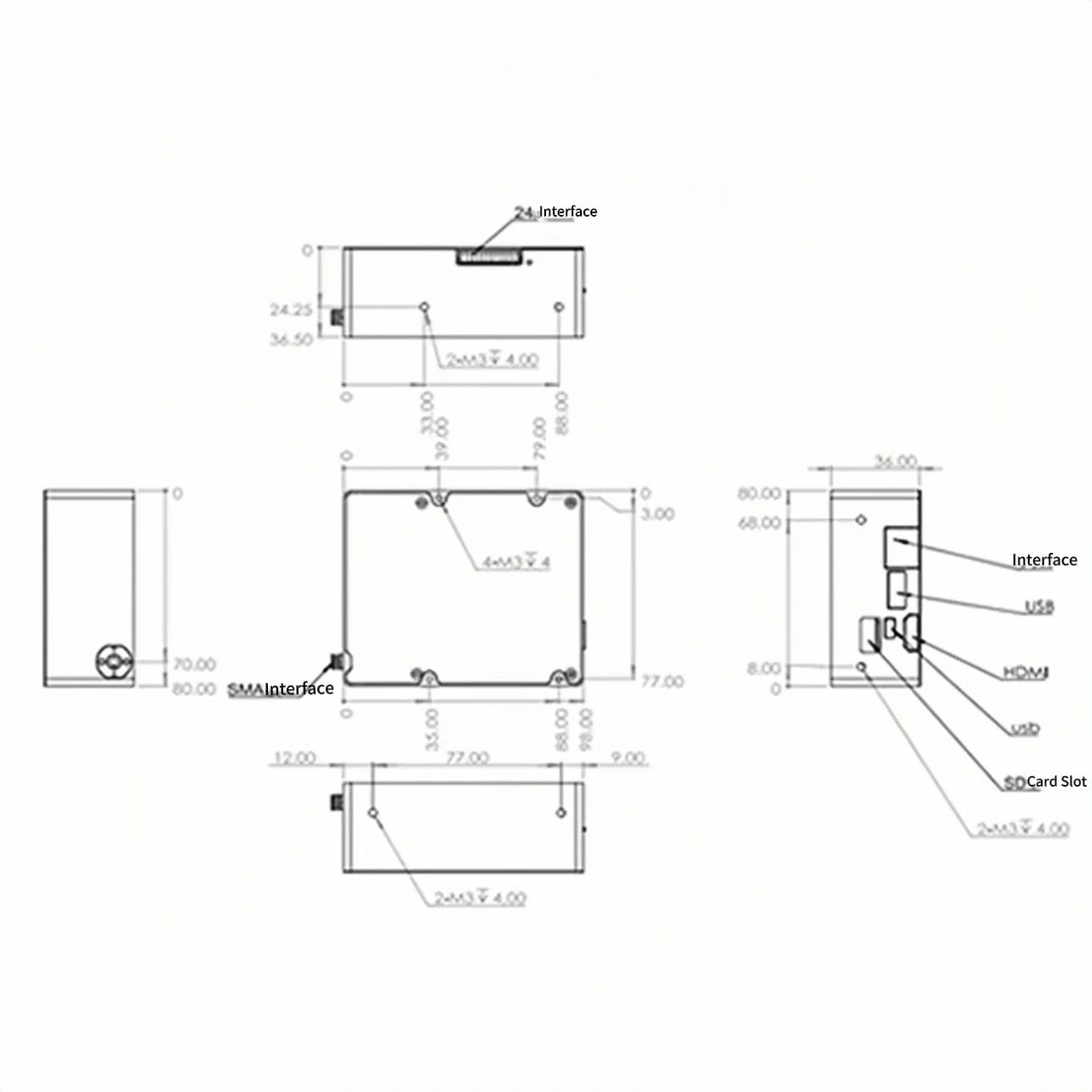

Dimensional drawing
