CoolMute TEC Spectrometer
Industrial-grade refrigerated micro fiber optic spectrometer
- Shallow cooling temperature control, low noise and stability
- High optical performance
- Flexible acquisition and control
- Multi-interface for easy integration
Applications: Low-light fluorescence detection, Raman spectroscopy, and trace chemical analysis.
Overview
Introduction to CoolMute TEC Spectrometer：
Based on the symmetric CT optical path design, it has a front focal length of 100mm and a rear focal length of 110mm, adopts a numerical aperture of N.A0.11, and is equipped with a platform-based grating configuration (300-2400 lines/mm optional). It is adapted to the Key-SMA905 optical fiber interface, can be compatible with multi-core densely arranged bundled multi-core optical fibers, and the consistency of optical fiber plugging and unplugging strength is ≤7%. The overall size is 182×109×56mm and the weight is 1.12kg, which takes into account both optical performance and integration portability, and is suitable for the long-term stable detection needs of industrial sites and scientific research scenarios.
It is suitable for industrial on-site measurements such as laser measurement, plasma emission spectroscopy measurement, color measurement, absorbance measurement, and Raman measurement. It can also play an important role in the scientific research field, meeting the needs of long-term stable detection in both on-site and scientific research scenarios.
Dimension drawing
Specifications

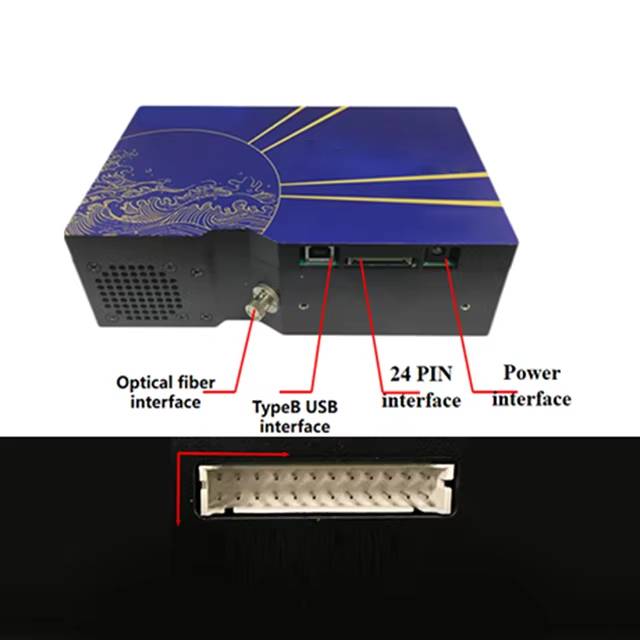

Interface Definition

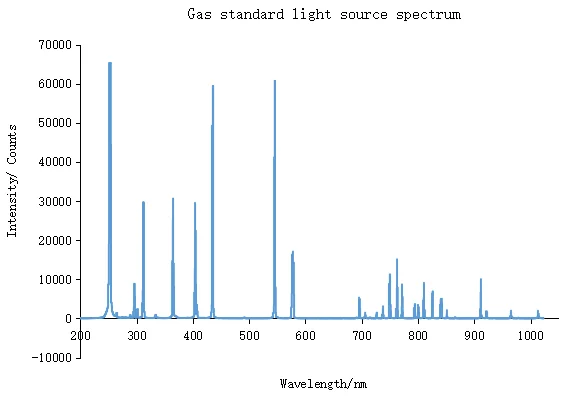

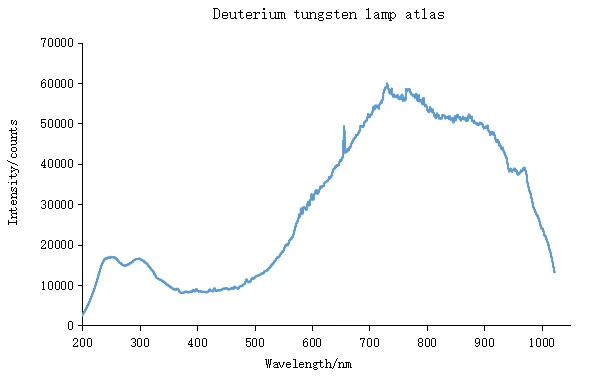

Typical Spectrum
