VenusLab R532 Raman Probe

Standardized Raman detection accessories compatible with 532nm lasers

Precise wavelength adaptation
Flexible structural design
Strong environmental adaptability with a wide temperature and humidity range
High operational reliability and convenient maintenance.

Overview

Product Introduction of VenusLab R532 Raman Probe：

The VenusLab R532 Raman Probe is a standardized accessory specifically designed for 532nm lasers. Its core applicable spectral range is 200cm⁻¹~4000cm⁻¹, which can effectively filter out stray light and has the ability to collect signals quickly and accurately. This probe is compatible with samples in various forms such as solids and liquids, and is widely used in scientific research experiments and industrial non-destructive testing scenarios. In addition, it supports flexible customization and has excellent cost performance.

Features of VenusLab R532 Raman Probe:

Ramanspectrum:150cm¹-4000cm¹
EffectivelyfilterRayleighsignal,cut-offdepth>OD8
Product assembly process to ensure consistency
Consistencyofinitialbeam:Start<150cm¹

Dimension Drawing:

Specifications

Specification Parameter	Same Parameter Value
Laser Wavelength	532nm
Emission Spectral Range	150cm⁻¹ - 4000cm⁻¹
Probe Working Distance	7.5mm (customizable)
Probe Output Coupling Efficiency	≥80%
Operating Temperature	Probe body: -20℃ - 80℃
Operating Humidity	5% - 80%

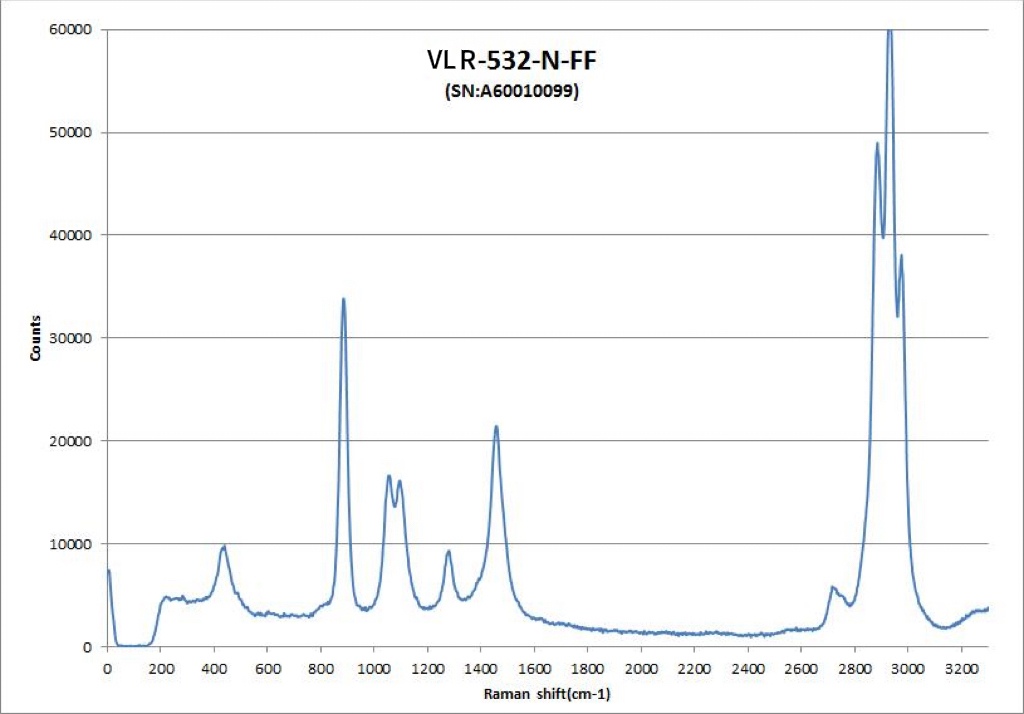

Spectrum chart

Integration time: 300ms；
laser power: 50mW;
The test sample was analytical pure ethanol placed in a 12.5mm× 12.5×45mm colorimetric dish

Explore Series

	Model	Probe output coupling efficiency	Probe working di-stance	Laser wave length	Front Probe Rod Length	Combiner Armor	Emission spectrum range	Fiber Length (Combiner Section)	Fiber Length (Splitter Section)
	VL R-532-1.5-FS	-	-	-	45 mm	8.5mm plastic-coated double-lock metal tube, withstanding 50N tension	-	115cm±5cm	30cm±5cm		VL R-532 Et probe	-	-	-	45 mm	8.5mm plastic-coated double-lock metal tube, withstanding 50N tension	-	115cm±5cm	30cm±5cm		VL R-532L-1.5-FS	-	-	-	45 mm	8.5mm plastic-coated double-lock metal tube, withstanding 50N tension	-	115cm±5cm	30cm±5cm		VL R-532-N-F	≥80%	7.5mm (customizable)	532nm	-	-	150cm -1 - 4000cm -1	-	-
