Venus Horizon™ Full Series Specifications

Series Name	Specific Model SKU	Travel	Table Size	Load	Key Specs
VL-200UPTA SeriesUltra-Precision Stage	VL-200UPTA-H50	50 mm	150 × 150 mm	35-50kg	Res: 1μm Precision Ball Screw Linear Guide
VL-200UPTA-H100	100 mm
VL-200UPTA-H150	150 mm
VL-200UPTA-H200	200 mm
VL-200UPTA-H300	300 mm
VL-200UPTA-H400	400 mm
VL-200UPTA-H500	500 mm
VL-200UPTA-H600	600 mm
VL-210UPTA SeriesWide-Body Precision	VL-210UPTA-H50	50 mm	179 × 179 mm	35-50kg	Res: 1μm Wide Base Stability
VL-210UPTA-H100	100 mm
VL-210UPTA-H150	150 mm
VL-210UPTA-H200	200 mm
VL-210UPTA-H300	300 mm
VL-210UPTA-H400	400 mm
VL-210UPTA-H500	500 mm
VL-210UPTA-H600	600 mm
VL-220UPTA SeriesCompact Precision	VL-220UPTA-H50	50 mm	115 × 115 mm	10-15kg	Res:1μm Compact Footprint
VL-220UPTA-H100	100 mm
VL-220UPTA-H150	150 mm
VL-220UPTA-H200	200 mm
VL-220UPTA-H300	300 mm
VL-230HPTA SeriesHigh Precision Stage	VL-230HPTA-M50	50 mm	150 × 150 mm	20-50kg	Res: 1μm Cost-Effective
VL-230HPTA-M100	100 mm
VL-230HPTA-M150	150 mm
VL-230HPTA-M200	200 mm
VL-230HPTA-M300	300 mm
VL-230HPTA-M400	400 mm
VL-230HPTA-M500	500 mm
VL-230HPTA-M600	600 mm

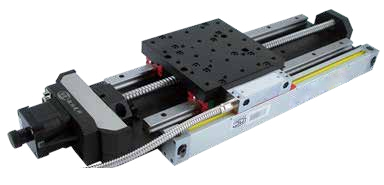

VL-GSxxTA SeriesClosed-Loop Stage	VL-GSxxTA (50-500) M	Customizable	Customizable	Custom	Built-in Linear Scale Closed-Loop Control
VL710TR SeriesDual-Slider Stage	VL710TR150-SR	150 mm	Dual Slider	2 kg	Reverse Sync Motion Ball Screw
VL160TA SeriesNarrow Profile Stage	VL160TA50H	50 mm	60 × 60 mm	3-8kg	Slim Design Res: 10μm(Full) Linear Slider Guide
VL160TA100H	100 mm
VL160TA150H	150 mm
VL160TA200H	200 mm
VL160TA300H	300 mm
VL160TA400H	400 mm
VL180TA SeriesLow Profile Stage	VL180TA50H	50 mm	80 × 80 mm	7-15kg	Low Height Ball Screw (2mm Pitch) Linear Guide
VL180TA100H	100 mm
VL180TA150H	150 mm
VL180TA200H	200 mm
VL260TH SeriesHeavy Duty Stage	VL260TH30H	30 mm	120 × 165 mm(varies)	40-80kg	Cross-Roller Guide High Stiffness Industrial Grade
VL260TH50H	50 mm
VL260TH100H	100 mm
VL260TH150H	150 mm
VL261TA SeriesMini Precision Stage	VL261TH15H	15 mm	65mm ~ 90mm	10-20kg	Miniature Size Cross-Roller Guide 0.5μm (20-Sub)
VL261TH30H	30 mm
VL261TH50H	50 mm
VL261TH75H	75 mm
VL-Micro TSMicro Cross-Rolle	VL-M262T15H4040	15 mm	40 × 40 mm	3 kg	Ultra Compact Res: 5μm (Full) Cross-Roller
VL-S262 SeriesStandard Cross-Roller	VL-S262-ECTA-20C-6060	20 mm	60 × 60 mm	10kg	Grades: C/H/P Res: 5μm/ 2μm
VL-S262-ECTA-20H-6060
VL-S262-ECTA-20P-6060
VL-262HPTA SeriesReinforced Cross-Roller	VL-262HPTA-30C-6070	30 mm	60 × 70 mm	5kg	Reinforced Guide Grades: C/H/P Res: 5μm
VL-262HPTA-30H-6070
VL-262HPTA-30P-6070
VL-262HPTA-80Square Cross-Roller	VL-262HPTA-10C-8080	10 mm	80 × 80 mm	10kg	General Purpose Cross-Roller Guide Res: 5μm
VL-262HPTA-20C-8080	20 mm
VL-262HPTA-30C-8080	30 mm
VL-262HPTA-50C-8080	50 mm
VL-265CDTACenter-Drive Stage	VL-265CDTA-15H-4040	15 mm	40mm ~ 120mm	6 kg ~ 25 kg	Central Motor Layout Symmetric Design Cross-Roller
VL-265CDTA-20H-6060	20 mm
VL-265CDTA-30H-8080	30 mm
VL-265CDTA-40H-100100	40 mm
VL-265CDTA-70H-120120	70 mm
VL-266SDTASide-Drive Stage	VL-266SDTA-20H-6060	20 mm	60mm ~ 120mm	5 kg ~ 15 kg	Side Motor Layout Space Saving Cross-Roller
VL-266SDTA-30H-8080	30 mm
VL-266SDTA-40H-100100	40 mm
VL-266SDTA-50H-120120	50 mm
VL-MiniTA SeriesUltra-Miniature Stage	VL-MiniTA-267-20H	20 mm	Compact	1 kg	Res: 0.125μm Ultra-Miniature High Precision

Electric Translation Stage

VenusLab-Translation Axis

VL160TA50H

VL160TA100H

VL160TA150H

VL160TA200H

VL160TA300H

VL160TA400H
