VenusLab-Translation Axis

Ultra-precision displacement control + high adaptability

Micro-Precision Positioning: ≤±2μm Repeatability, 0.1μm Resolution
High Stability & Multi-Adaptability: Rigid Structure, Vacuum/Low-Temp/IP Protection Compatible

Download

Overview

Ultra-precision and stable electric translation stage

VenusLab-Translation Axis is a core displacement control device launched by VenusLab for high-end precision scenarios, with "ultra-precise positioning + strong and stable adaptation" as its core advantages. Through the in-depth integration of high-precision transmission components and subdivision drive technology, the product achieves micron-level positioning accuracy and sub-micron-level resolution, ensuring precise and controllable displacement control. At the same time, relying on the integrated rigid design and multi-working condition adaptation configuration, it not only ensures the stability and anti-interference during operation but also meets the needs of special environments such as vacuum and low temperature. It is widely used in fields such as micro-nano processing, optical detection, and laboratory precision testing, providing reliable and accurate displacement solutions for high-end equipment.

Technical Specifications

Venus Horizon™ Full Series Specifications

Series Name	Specific Model SKU	Travel	Table Size	Load	Key Specs
VL-200UPTA SeriesUltra-Precision Stage	VL-200UPTA-H50	50 mm	150 × 150 mm	35-50kg	Res: 1μm Precision Ball Screw Linear Guide
	VL-200UPTA-H100	100 mm
	VL-200UPTA-H150	150 mm
	VL-200UPTA-H200	200 mm
	VL-200UPTA-H300	300 mm
	VL-200UPTA-H400	400 mm
	VL-200UPTA-H500	500 mm
	VL-200UPTA-H600	600 mm
VL-210UPTA SeriesWide-Body Precision	VL-210UPTA-H50	50 mm	179 × 179 mm	35-50kg	Res: 1μm Wide Base Stability
	VL-210UPTA-H100	100 mm
	VL-210UPTA-H150	150 mm
	VL-210UPTA-H200	200 mm
	VL-210UPTA-H300	300 mm
	VL-210UPTA-H400	400 mm
	VL-210UPTA-H500	500 mm
	VL-210UPTA-H600	600 mm
VL-220UPTA SeriesCompact Precision	VL-220UPTA-H50	50 mm	115 × 115 mm	10-15kg	Res:1μm Compact Footprint
	VL-220UPTA-H100	100 mm
	VL-220UPTA-H150	150 mm
	VL-220UPTA-H200	200 mm
	VL-220UPTA-H300	300 mm
VL-230HPTA SeriesHigh Precision Stage	VL-230HPTA-M50	50 mm	150 × 150 mm	20-50kg	Res: 1μm Cost-Effective
	VL-230HPTA-M100	100 mm
	VL-230HPTA-M150	150 mm
	VL-230HPTA-M200	200 mm
	VL-230HPTA-M300	300 mm
	VL-230HPTA-M400	400 mm
	VL-230HPTA-M500	500 mm
	VL-230HPTA-M600	600 mm
VL-GSxxTA SeriesClosed-Loop Stage	VL-GSxxTA (50-500) M	Customizable	Customizable	Custom	Built-in Linear Scale Closed-Loop Control
VL710TR SeriesDual-Slider Stage	VL710TR150-SR	150 mm	Dual Slider	2 kg	Reverse Sync Motion Ball Screw
VL160TA SeriesNarrow Profile Stage	VL160TA50H	50 mm	60 × 60 mm	3-8kg	Slim Design Res: 10μm(Full) Linear Slider Guide
	VL160TA100H	100 mm
	VL160TA150H	150 mm
	VL160TA200H	200 mm
	VL160TA300H	300 mm
	VL160TA400H	400 mm
VL180TA SeriesLow Profile Stage	VL180TA50H	50 mm	80 × 80 mm	7-15kg	Low Height Ball Screw (2mm Pitch) Linear Guide
	VL180TA100H	100 mm
	VL180TA150H	150 mm
	VL180TA200H	200 mm
VL260TH SeriesHeavy Duty Stage	VL260TH30H	30 mm	120 × 165 mm(varies)	40-80kg	Cross-Roller Guide High Stiffness Industrial Grade
	VL260TH50H	50 mm
	VL260TH100H	100 mm
	VL260TH150H	150 mm
VL261TA SeriesMini Precision Stage	VL261TH15H	15 mm	65mm ~ 90mm	10-20kg	Miniature Size Cross-Roller Guide 0.5μm (20-Sub)
	VL261TH30H	30 mm
	VL261TH50H	50 mm
	VL261TH75H	75 mm
VL-Micro TSMicro Cross-Rolle	VL-M262T15H4040	15 mm	40 × 40 mm	3 kg	Ultra Compact Res: 5μm (Full) Cross-Roller
VL-S262 SeriesStandard Cross-Roller	VL-S262-ECTA-20C-6060	20 mm	60 × 60 mm	10kg	Grades: C/H/P Res: 5μm/ 2μm
	VL-S262-ECTA-20H-6060
	VL-S262-ECTA-20P-6060
VL-262HPTA SeriesReinforced Cross-Roller	VL-262HPTA-30C-6070	30 mm	60 × 70 mm	5kg	Reinforced Guide Grades: C/H/P Res: 5μm
	VL-262HPTA-30H-6070
	VL-262HPTA-30P-6070
VL-262HPTA-80Square Cross-Roller	VL-262HPTA-10C-8080	10 mm	80 × 80 mm	10kg	General Purpose Cross-Roller Guide Res: 5μm
	VL-262HPTA-20C-8080	20 mm
	VL-262HPTA-30C-8080	30 mm
	VL-262HPTA-50C-8080	50 mm
VL-265CDTACenter-Drive Stage	VL-265CDTA-15H-4040	15 mm	40mm ~ 120mm	6 kg ~ 25 kg	Central Motor Layout Symmetric Design Cross-Roller
	VL-265CDTA-20H-6060	20 mm
	VL-265CDTA-30H-8080	30 mm
	VL-265CDTA-40H-100100	40 mm
	VL-265CDTA-70H-120120	70 mm
VL-266SDTASide-Drive Stage	VL-266SDTA-20H-6060	20 mm	60mm ~ 120mm	5 kg ~ 15 kg	Side Motor Layout Space Saving Cross-Roller
	VL-266SDTA-30H-8080	30 mm
	VL-266SDTA-40H-100100	40 mm
	VL-266SDTA-50H-120120	50 mm
VL-MiniTA SeriesUltra-Miniature Stage	VL-MiniTA-267-20H	20 mm	Compact	1 kg	Res: 0.125μm Ultra-Miniature High Precision

Mechanical Dimensions

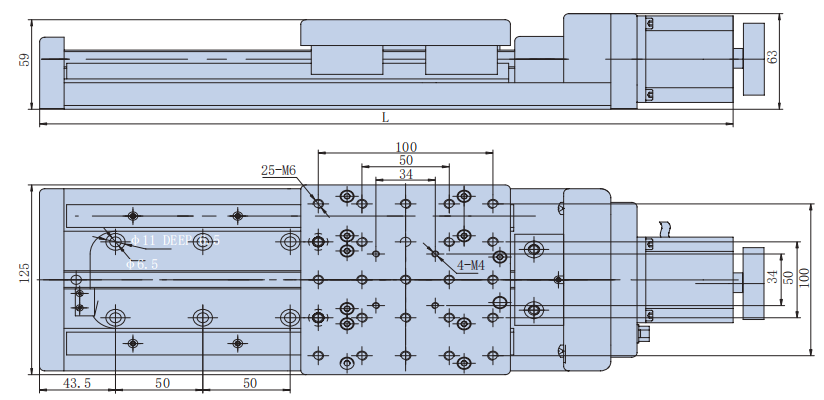

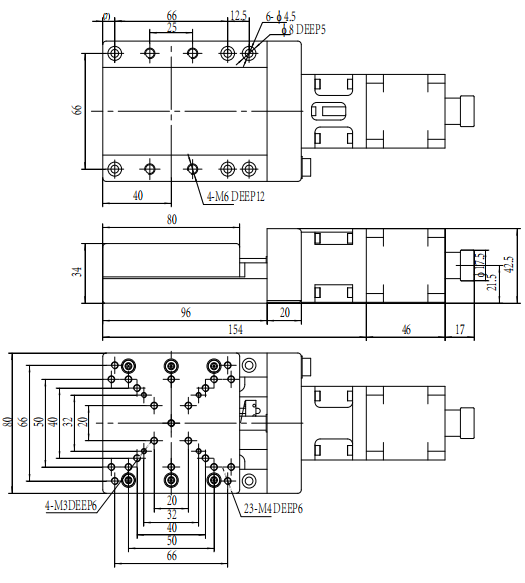

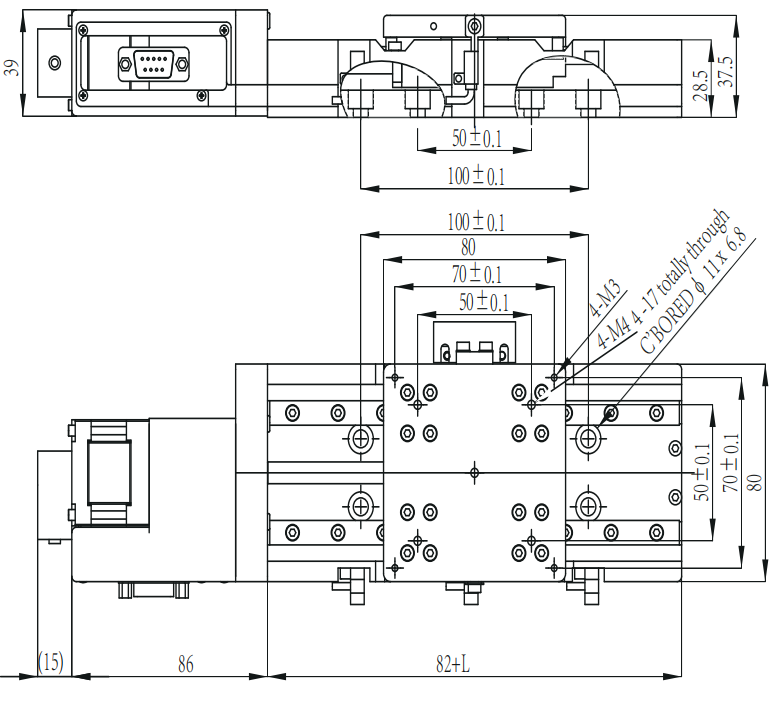

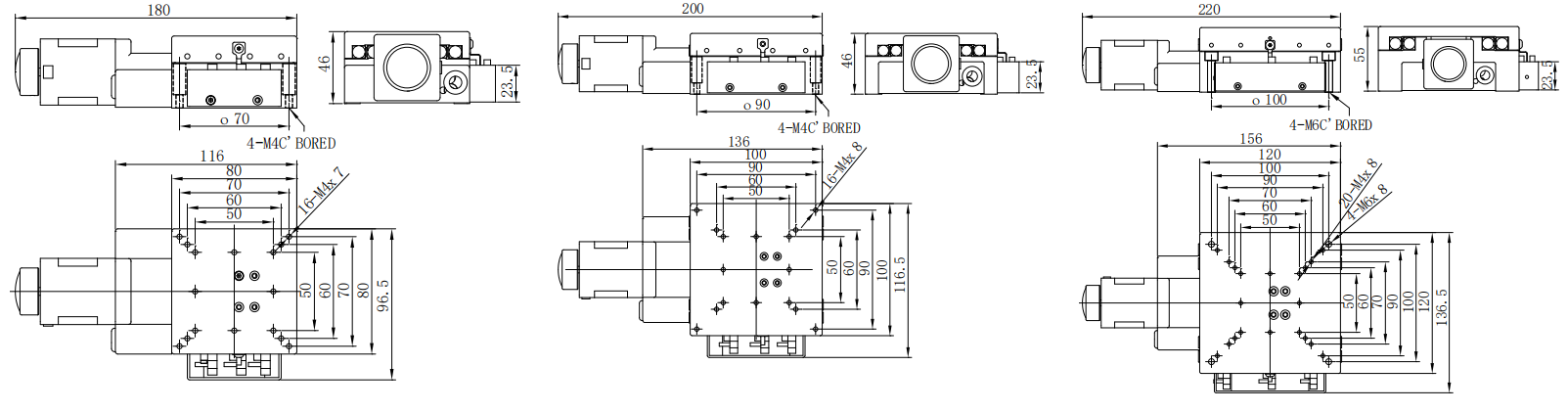

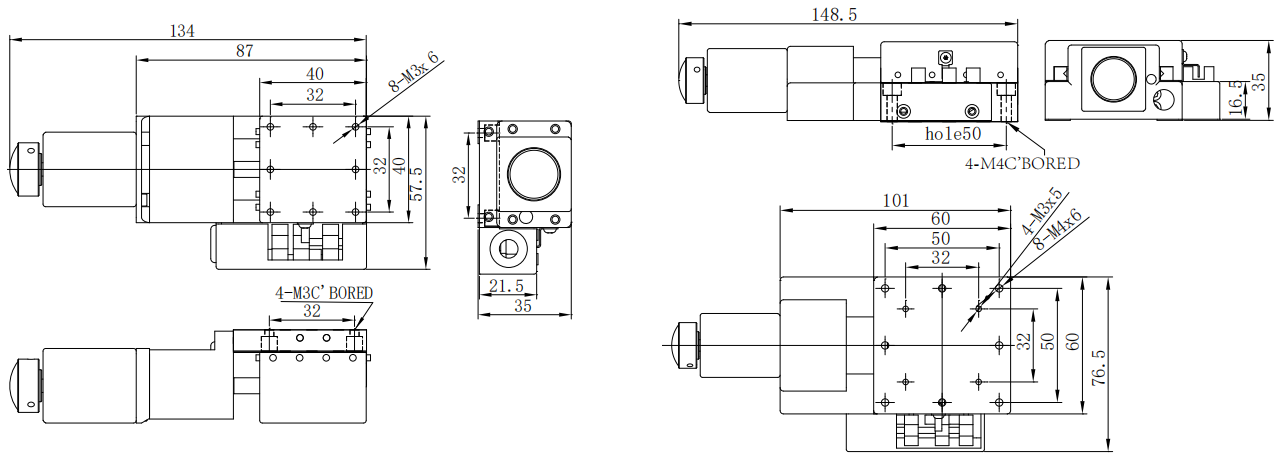

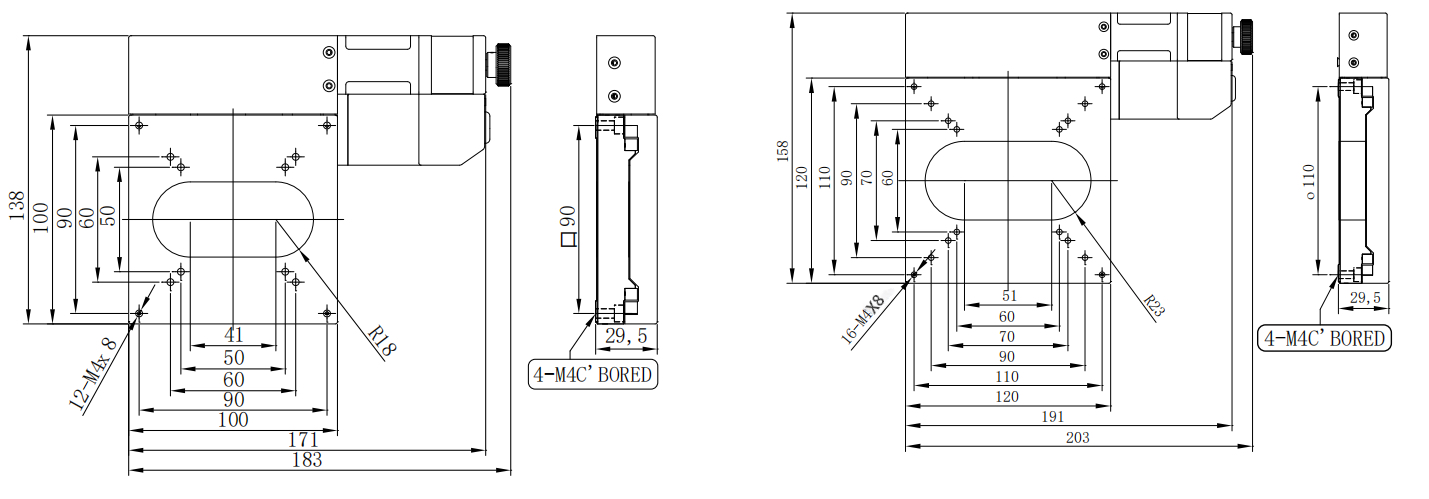

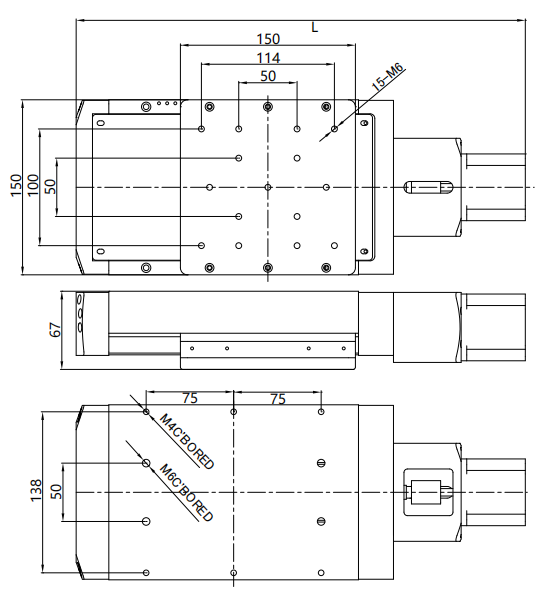

VL-200UPTA-(50-600)H

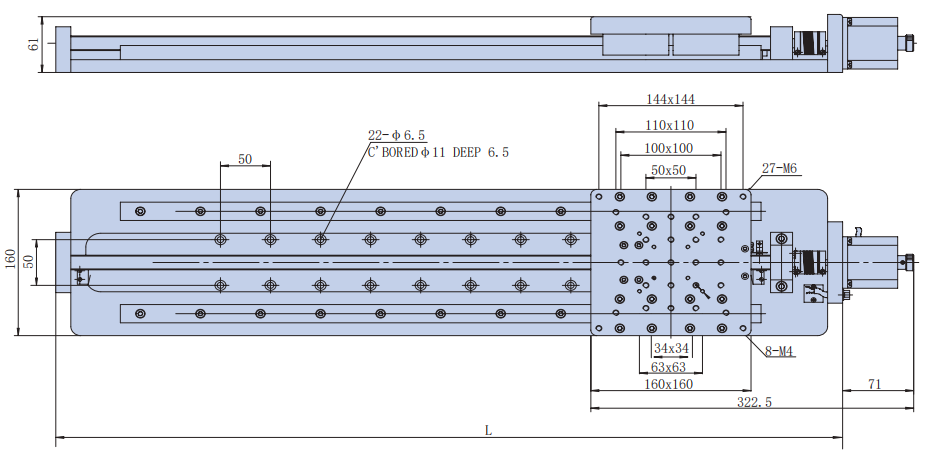

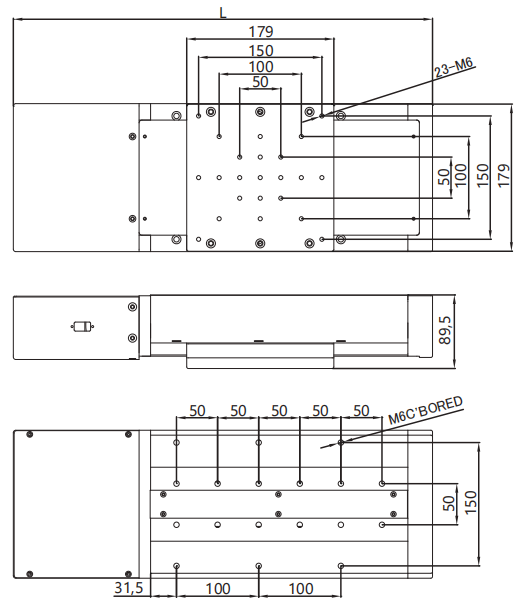

VL-210UPTA-(50-600)H

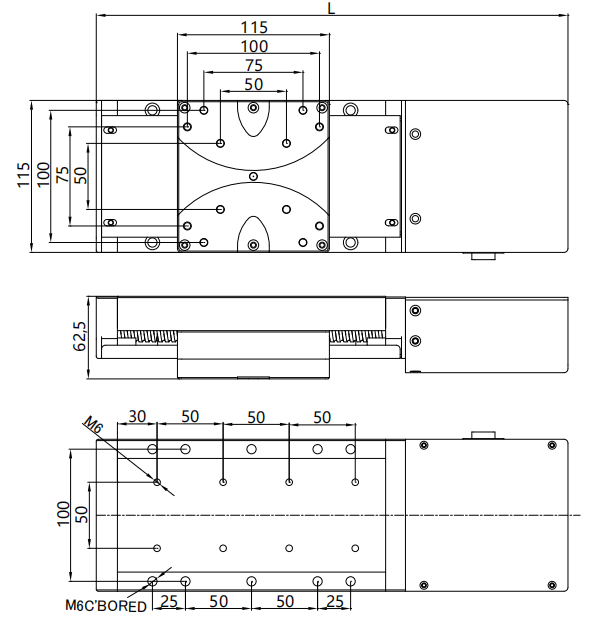

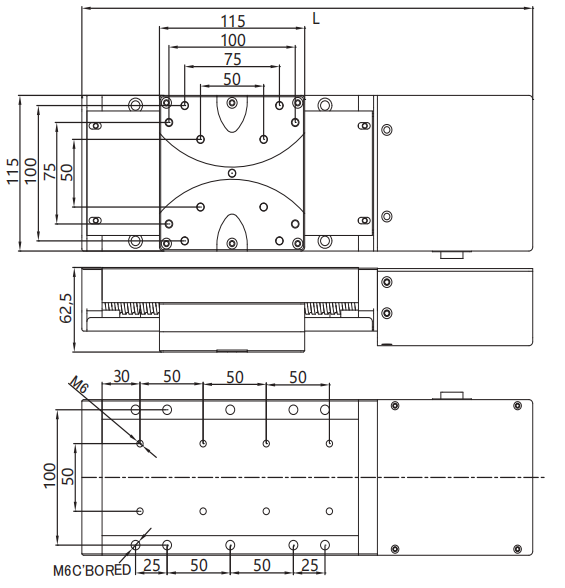

VL-220UPTA-(50-300)H

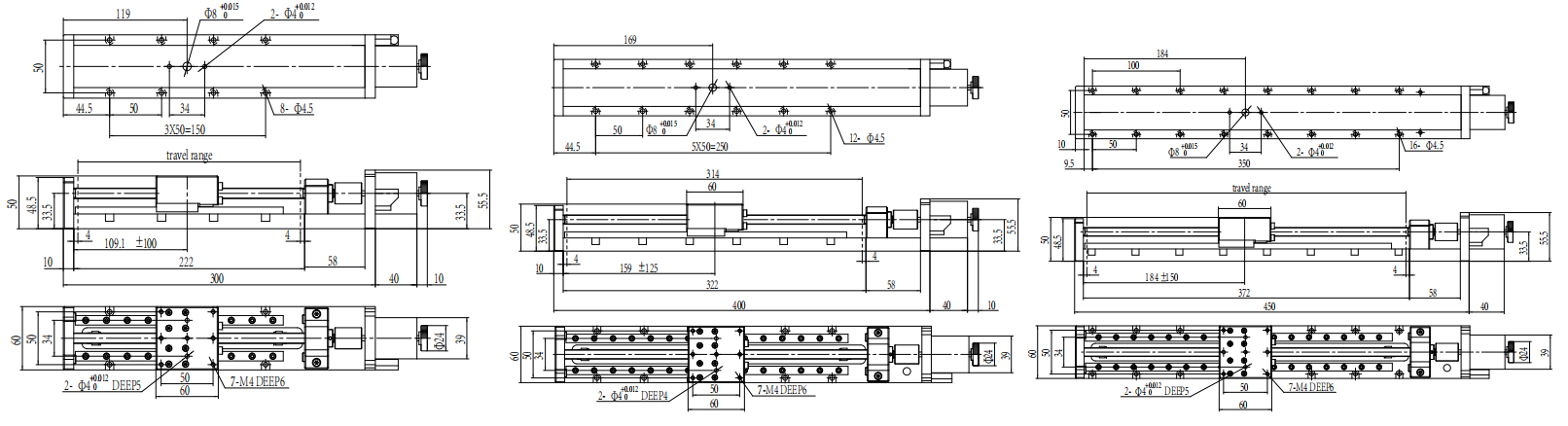

VL-230HPTA-(50-500)M

VL-230HPTA-(50-300)M

VL-230HPTA-(400-600)M

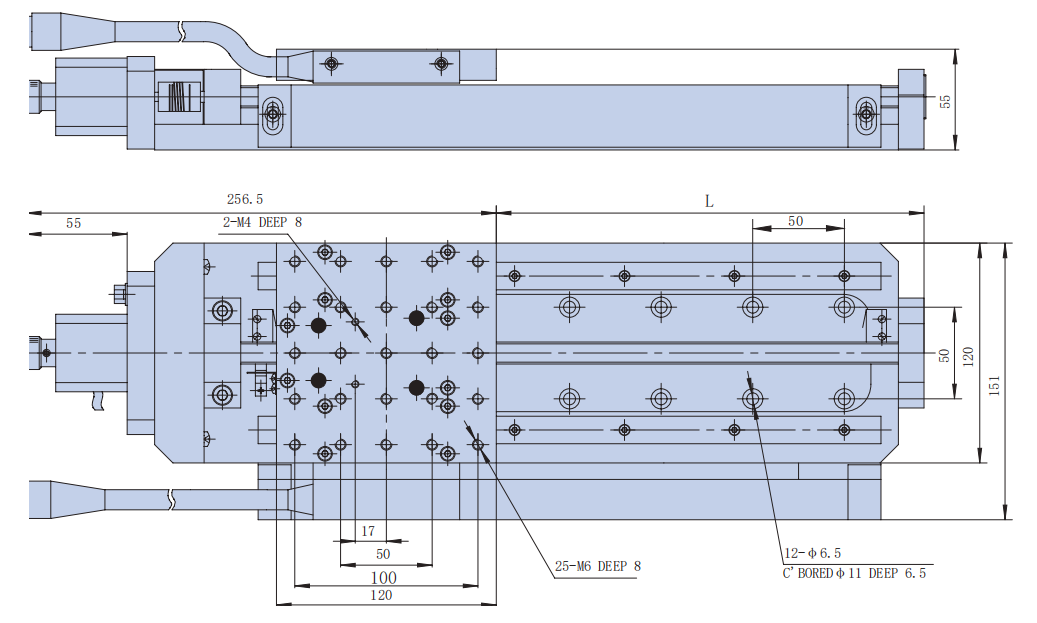

VL-GSxxTA (50-500) M Series

VL710TR150-SR Series

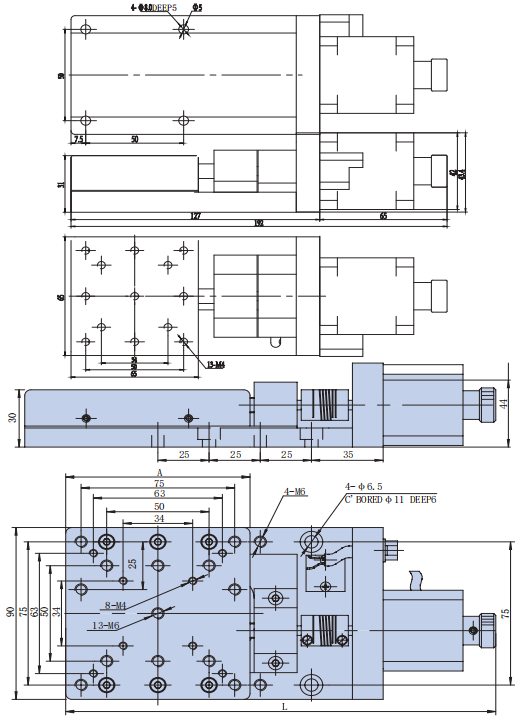

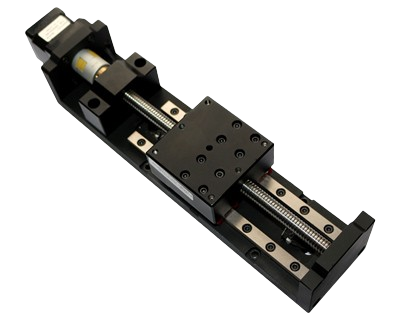

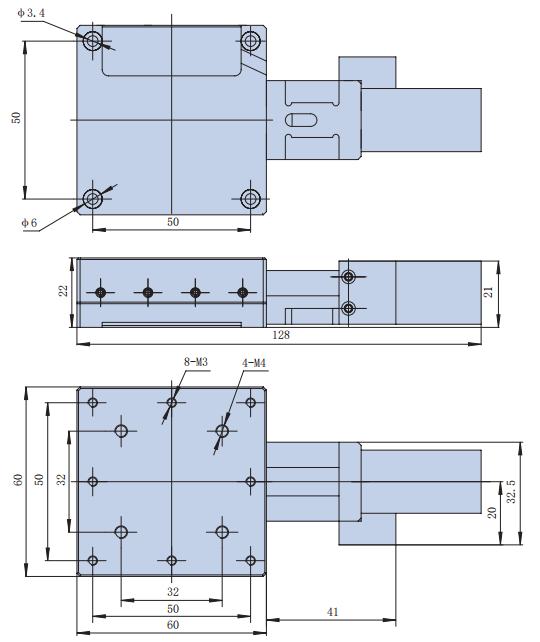

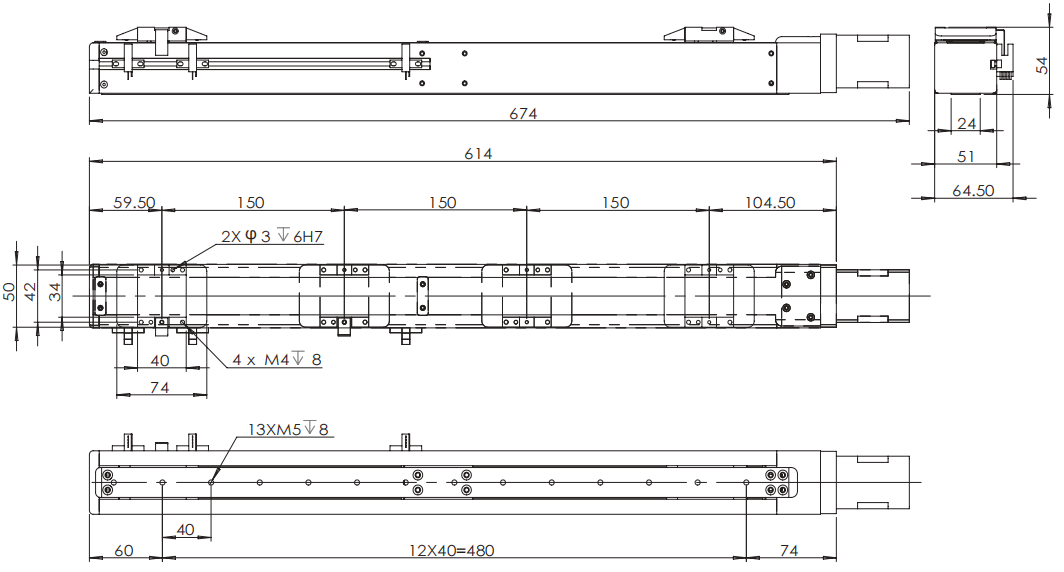

VL160TA(50-400)

VL160TA50H VL160TA100H

VL160TA150H VL160TA250H VL160TAH

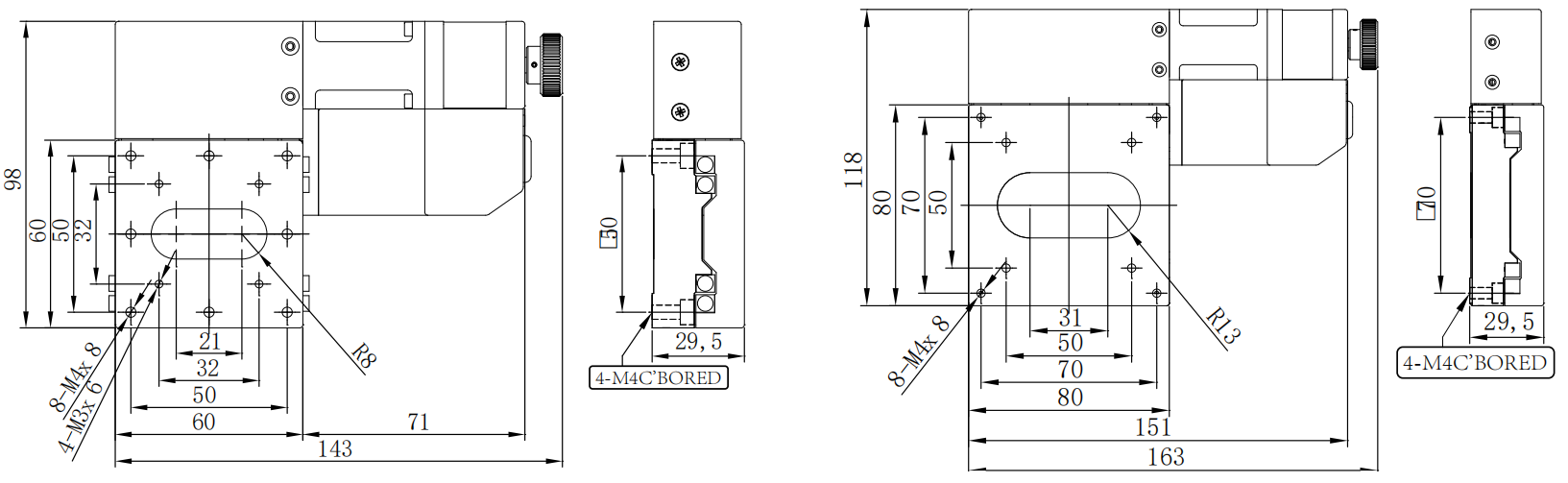

VL180TA(50-200)H

VL260TH Series

VL260TH30H VL260TH(50-150)H

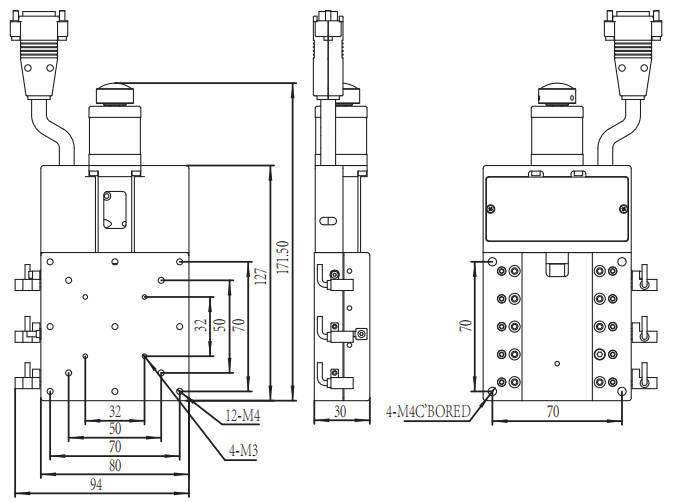

VL261TA(15-75)H

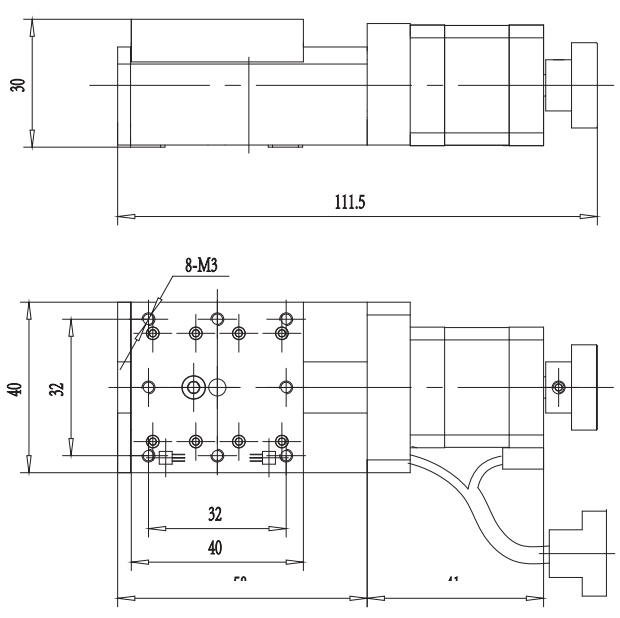

VL-Micro TS

VL-S262-ECTA-20-6060

VL-262HPTA-30-6070(C/H/P)

VL-262HPTA-(10-50)C-8080

VL-265CDTA

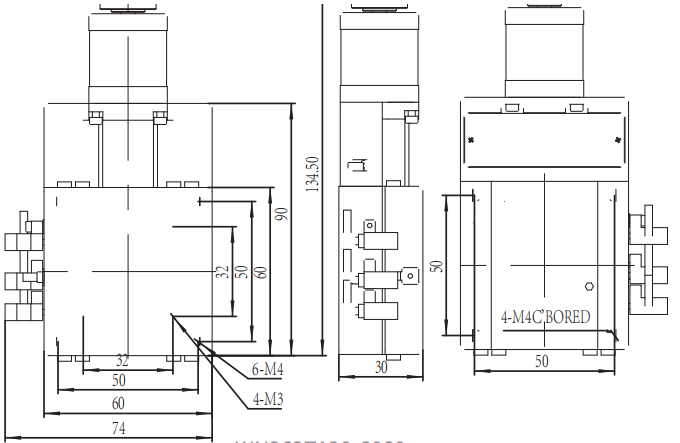

VL-265CDTA-20H-6060 VL-265CDTA-15H-4040

VL-265CDTA-30H-8080 VL-265CDTA-40H-100100 VL-265CDTA-70H-120120

VL-266SDTA

VL-266SDTA-20H-6060 VL-266SDTA-30H-8080

VL-266SDTA-40H-100100 VL-266SDTA-50H-120120

VL-MiniTA Series

Explore Series

	Model	Motion Parallelism	Table Load	Straightness	Weight
	VL160TA50H	10μ	8kg	5μ	1.4kg		VL160TA100H	10μ	8kg	5μ	1.7kg		VL160TA150H	15μ	5kg	6μ	2.3kg		VL160TA200H	15μ	5kg	6μ	2.6kg		VL160TA300H	15μ	3kg	6μ	3kg		VL160TA400H	20µ	3kg	8µ	4.5kg
