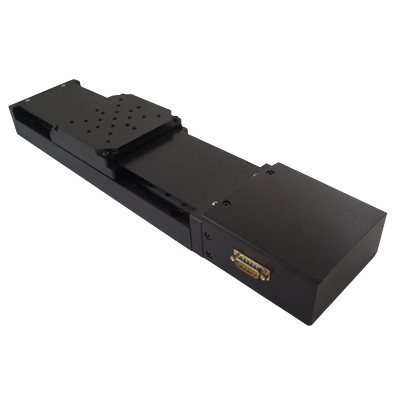

VL-220UPTA-(50-300)H
Specialized for light-load precision scenarios
- Compact and high rigidity, light load with 1μ high precision
- Flexible adaptation, aluminum body for durability
Overview
The ideal choice for precision positioning
The VL-220UPTA-(50-300)H is a high-performance electric linear stage designed for industrial and scientific applications requiring precise positioning. This device offers an adjustable travel range of 50-300mm, with a working surface size of 179x179mm, and a maximum load capacity of 6.3kg. It uses high-precision ball screw transmission and linear block guides to ensure a repeat positioning accuracy of 1µm and a maximum operating speed of 60mm/s. It comes with a built-in dust cover and options for additional accessories such as an optical scale and servo motor.
Features of VL-220UPTA-(50-300)H
- High-precision ball screws and linear slider guides with high load-bearing capacity, suitable for precision applications.
- Repeat positioning accuracy of 1µm ensures precise operation.
- Maximum speed of 60mm/s improves efficiency.
- Dust-proof design with flexible optional accessories.
- Stroke can be customized to meet different needs.

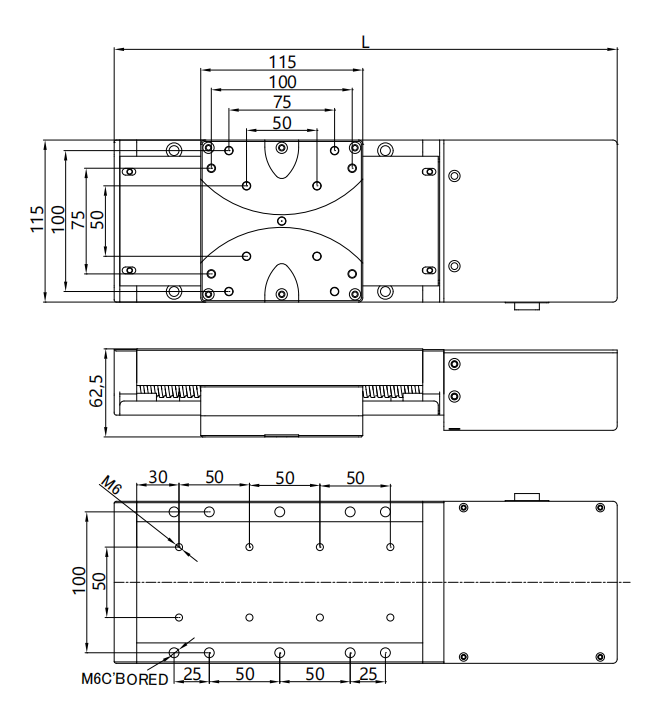

Dimension drawing of VL-220UPTA-(50-300)H
Specifications
