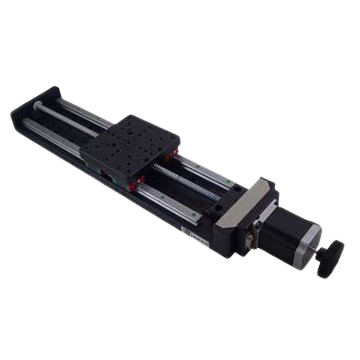

VL-230HPTA-(50-500)M
Ultra-precision direct-drive linear translation stage
- Ultra-precise Stable Drive: Direct drive + non-ferromagnetic bearings, ultra-precise, low-loss, stable and interference-free
- High-precision Adaptable: 50nm accuracy + sub-nm resolution, wide stroke & heavy load, multi-scenario compatible
Overview
The Ideal Choice for Precision Engineering and Research
The VL-230HPTA-(50-500)M is an ultra-precision electric linear stage with an adjustable travel range from 50mm to 500mm, suitable for applications requiring precise positioning and a larger travel range. It features a working surface of 179x125mm and a maximum load capacity of 30kg. This device uses high-precision ball screw transmission and linear block guides to offer a repeat positioning accuracy of 1.25µm and a maximum operating speed of 40mm/s. It comes with a built-in dust cover and options for additional accessories such as an optical scale and servo motor.
Features of VL-230HPTA-(50-500)M
- High-precision ball screw drive, accurate positioning.
- Precise guide rail, high load capacity, smooth motion.
- Low pitch and yaw, high straightness and parallelism.
- Closed-loop control available for high precision.
Dimension drawing of VL-230HPTA-(50-500)M

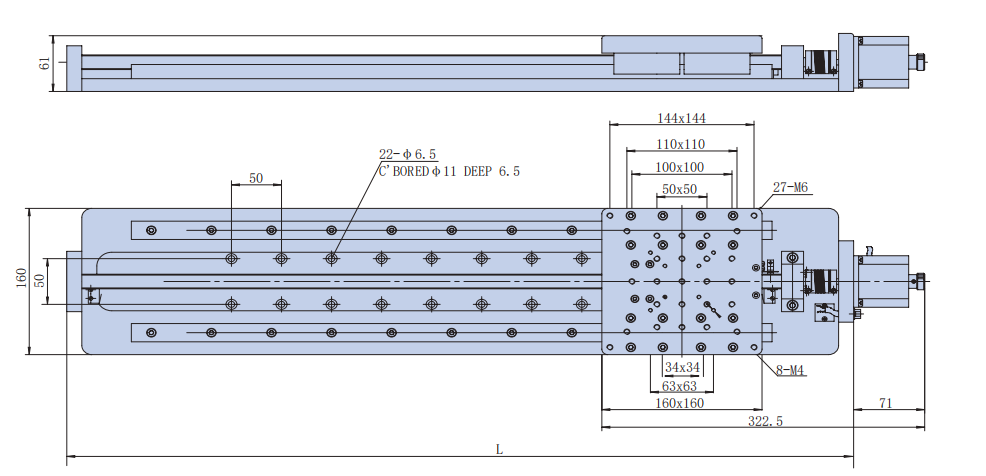

VL-230HPTA-(50-300)M

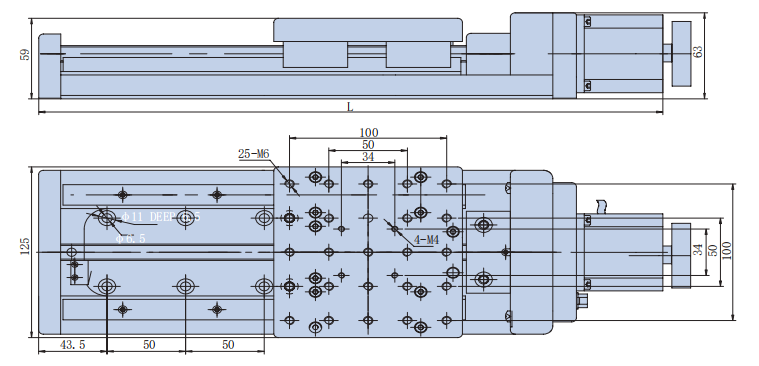

VL-230HPTA-(400-500)M
Specifications
