CellInSitu ThermoStage

Battery temperature change experimental equipment

Wide temperature range control
High-precision temperature control
In-situ testing function
Flexible environmental control

Download

Data Sheet

Software

User Manual

Overview

Introduction to CellInSitu ThermoStage：

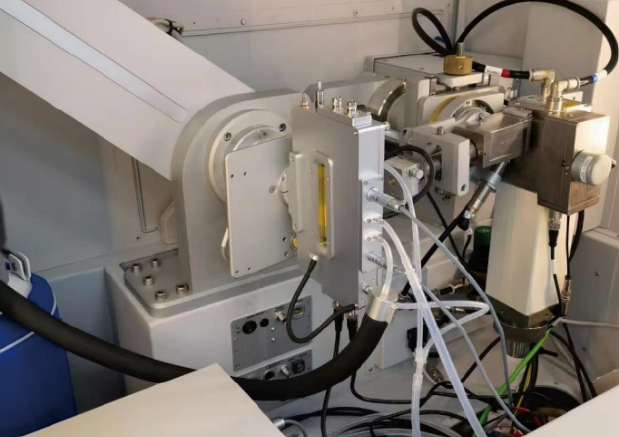

Used for in-situ testing during the charging and discharging processes of lithium batteries, supporting various analytical methods such as X-ray diffraction (XRD), Raman spectroscopy/microscopic observation, etc. The temperature range covers -100℃ to 100℃ (some models can reach -190℃ to 600℃), with a temperature stability of ±0.1℃. It supports XZ direction adjustment, features quick assembly/disassembly and high repeatable sealing, significantly improving experimental efficiency. Suitable for testing needs of different types of batteries such as button batteries and pouch batteries.

Specifications

Same parameters

Parameter	Description
Temperature control function	All models have heating and cooling capabilities with wide temperature range control
Temperature stability	High stability of ±0.1℃ specified for some models
Temperature control rate	Maximum heating/cooling rate up to 10℃/min (for some models)
Battery type compatibility	Compatible with various battery types including lithium batteries and button batteries
Sample stage material	Corrosion-resistant metals (316L, silver, copper) used for sample stages
Optical observation support	Support for reflection/transmission optical paths with windows (beryllium or Kapton film)
Experimental environment control	Testing possible under atmospheric conditions
Structural design	Compact design for easy integration with various analytical equipment
