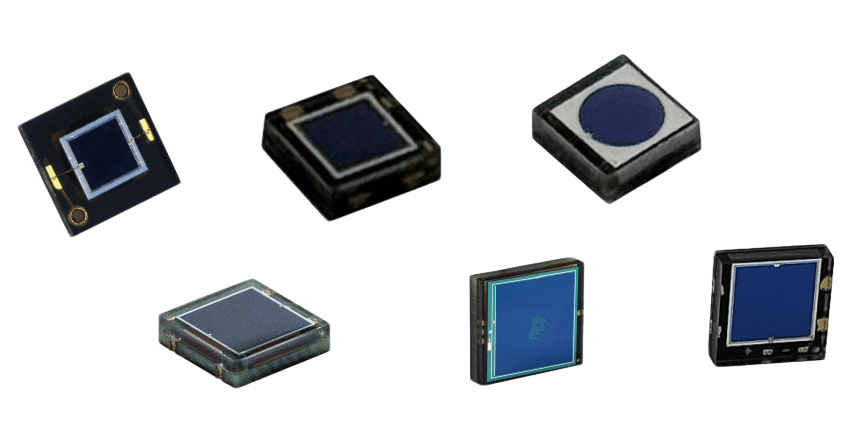

Low Dark Current Silicon PIN Photodiode (COB packaging)
微光检测、精密测量领域的核心器件
- 宽光谱精准响应
- 超低噪声检测能力
- 高集成量产适配
- 工业级环境可靠性
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Applications
Introduction:
This product features a spectral response range of 50~1060nm, with extremely low dark current and low junction capacitance characteristics. It adopts COB packaging and is suitable for lead-free reflow soldering, making it widely applicable in optoelectronic measuring instruments, optical analysis equipment, and optical power monitoring scenarios.
It uses Chip-on-Board (COB) packaging, which balances miniaturization and industrial-grade reliability, enabling it to accurately capture optical signals and convert them into electrical signals.
Features:
- Extremely low dark current, accurate detection of weak light
- Strong adaptability of COB packaging, convenient integration
- Wide spectral response, wide scene coverage
- Industrial-grade reliability, stable and durable

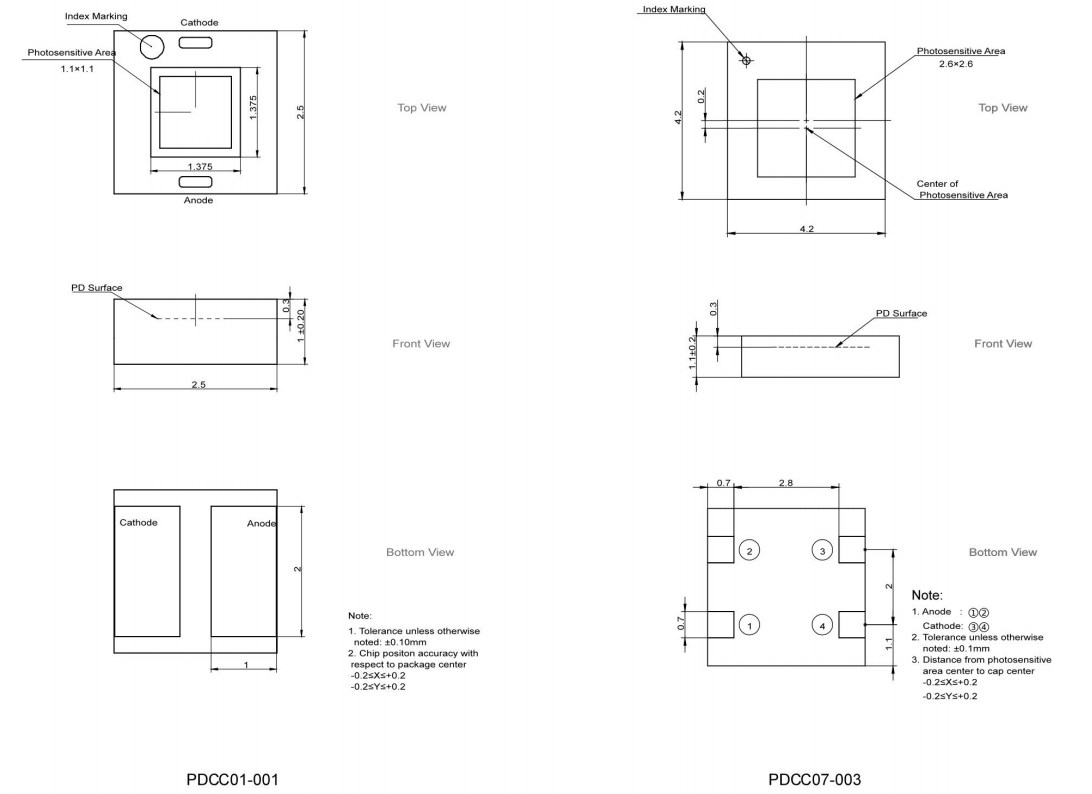

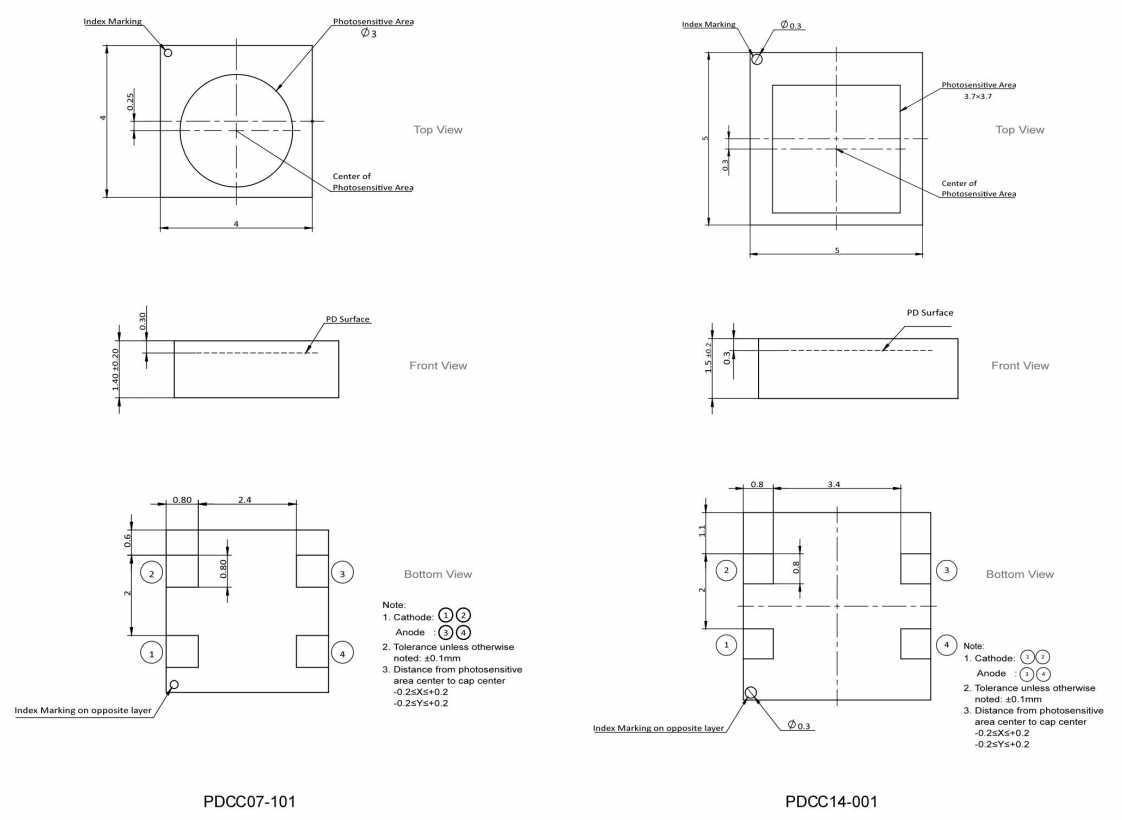

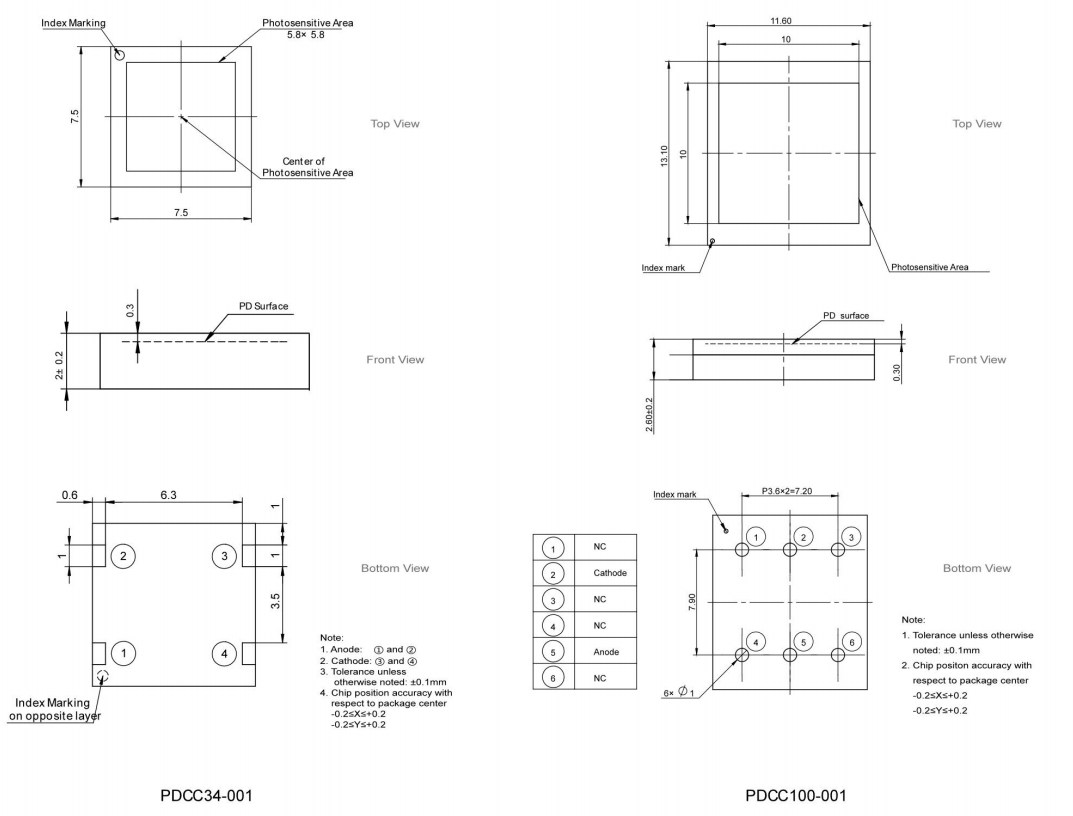

Dimension:
浏览全部型号
Low Dark Current Silicon PIN Photodiode (COB Packaging)
PDCC01-001
感光面尺寸最小（1.1×1.1mm，方形），COB 封装，窗口材料为树脂.
Low Dark Current Silicon PIN Photodiode (COB packaging)
PDCC07-003
感光面尺寸中等（2.6×2.6mm，方形），COB 封装，树脂窗口.
Low Dark Current Silicon PIN Photodiode (COB packaging)
PDCC07-101
圆形感光面（Φ3.0mm），COB 封装，树脂窗口。
Low Dark Current Silicon PIN Photodiode (COB packaging)
PDCC14-001
感光面尺寸中大型（3.7×3.7mm，方形），COB 封装，树脂窗口。
Low Dark Current Silicon PIN Photodiode (COB packaging)
PDCC34-001
感光面尺寸大型（5.8×5.8mm，方形），COB 封装，树脂窗口。
