UV-enhanced Silicon PIN Photodiode (TO Package)
Optoelectronic conversion device with TO transistor package and metal hermetic sealing
- Metal hermetic packaging, stable over a wide temperature range
- High-sensitivity optimization in the ultraviolet band
- Low noise and fast response
- Industrial-grade environmental tolerance
- Flexible adaptation of glass/quartz windows
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Applications
Introduction:
TO-packaged ultraviolet-enhanced Si photodiodes with a spectral response of 250~1060nm, low dark current, low junction capacitance, and optimized ultraviolet response, suitable for optical power detection and optical analysis equipment.
It efficiently captures ultraviolet light signals while being compatible with the inherent near-infrared band (700~1100nm) response capability of silicon-based devices, meeting the requirements of direct plug-in circuit installation in industrial, laboratory and other scenarios.
Features:
- Metal packaging for dust and moisture protection and anti-aging
- Window core alignment for high-precision and suitable analysis
- Metal shell with excellent heat dissipation and low dark drift
Dimension:
浏览全部型号
UV-enhanced Silicon PIN Photodiode (TO Package)

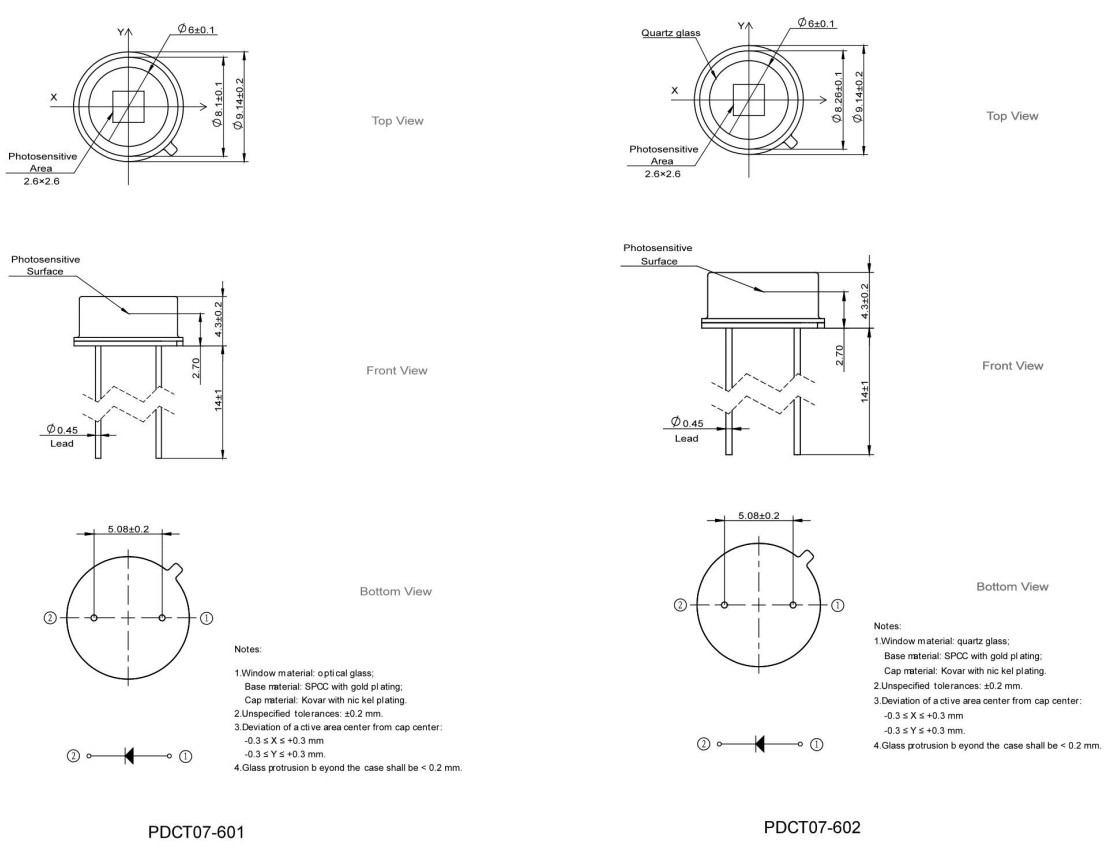

PDCT07-601
Optical glass (flat window), photosensitive surface size 2.6×2.6mm.
UV-enhanced Silicon PIN Photodiode (TO Package)
PDCT07-602
The window material is upgraded to quartz (flat window), and the photosensitive surface size is 2.6×2.6mm.
UV-enhanced Silicon PIN Photodiode (TO Package)

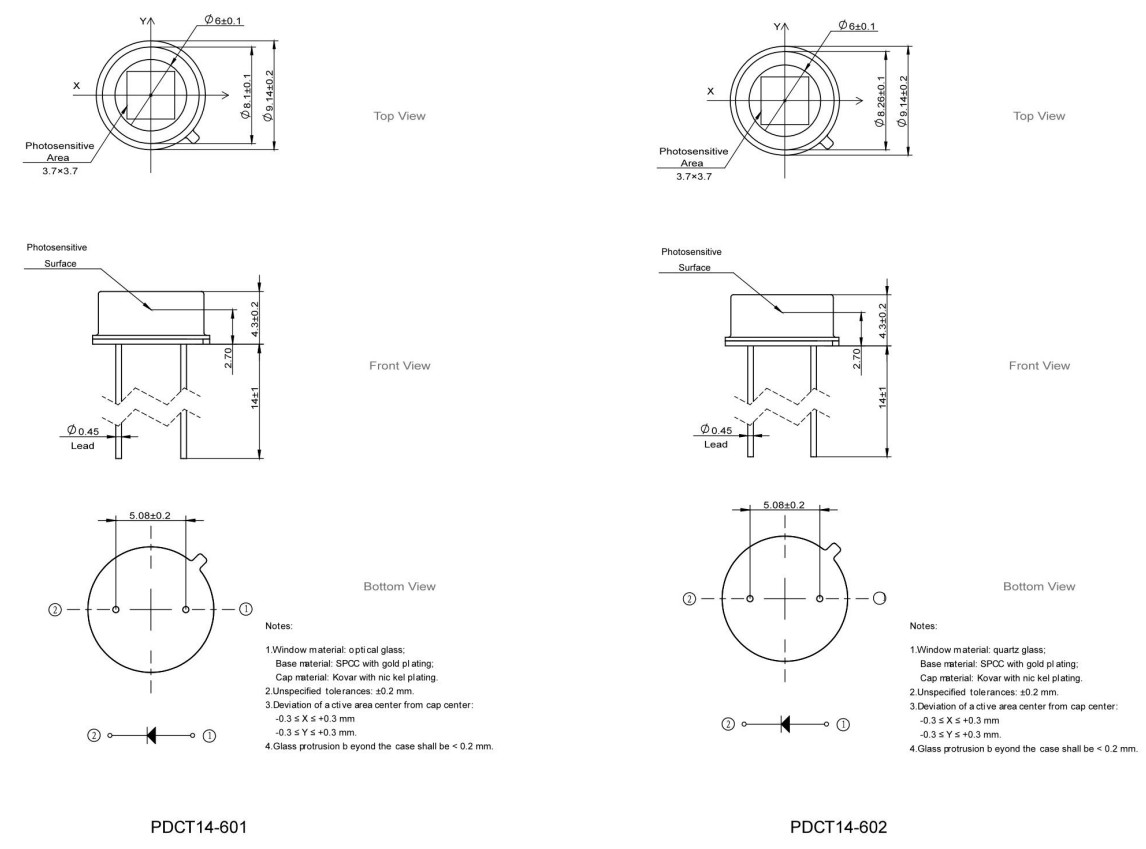

PDCT14-601
The window is made of optical glass (flat window), and the size of the photosensitive surface is 3.7×3.7mm.
UV-enhanced Silicon PIN Photodiode (TO Package)
PDCT14-602
The window material is quartz (flat window), and the photosensitive surface size is 3.7×3.7mm.
UV-enhanced Silicon PIN Photodiode (TO Package)

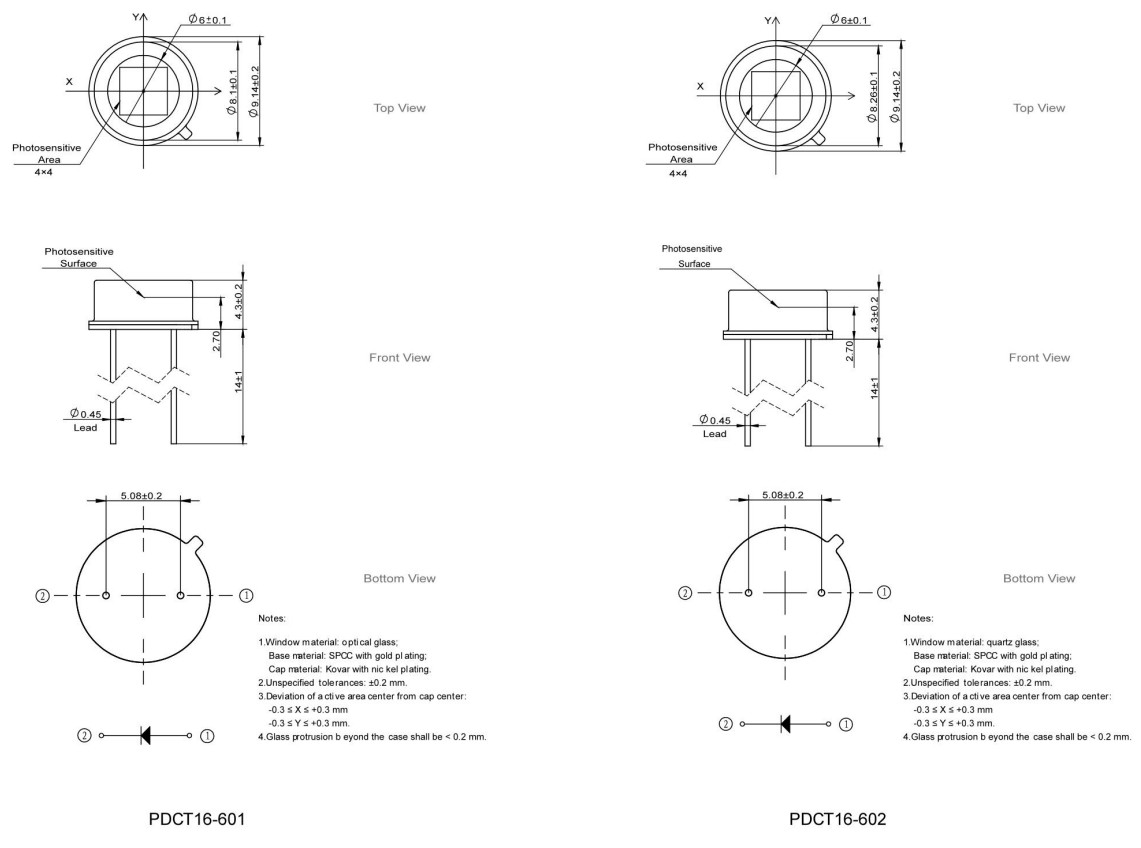

PDCT16-601
The window material is optical glass (flat window), and the photosensitive surface size is 4×4mm.
UV-enhanced Silicon PIN Photodiode (TO Package)
PDCT16-602
The window material is quartz (flat window), and the photosensitive surface size is 4×4mm.
UV-enhanced Silicon PIN Photodiode (TO Package)
PDCT34-701
The window material is optical glass (flat window), and the photosensitive surface size is 5.8×5.8mm.
