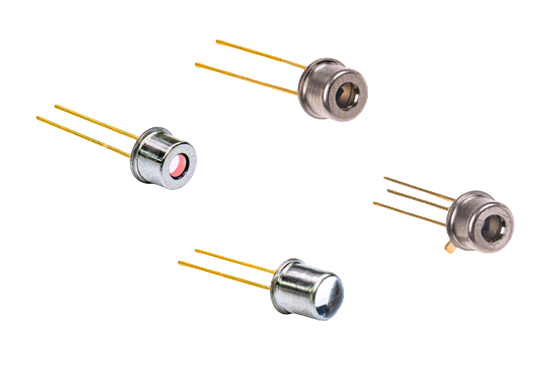

Low Dark Current Silicon PIN Photodiode（350-1060nm）
产品编号: PDCT01-201
Extremely low dark current (Max 5pA), minimal noise interference, capable of accurately converting weak light signals and improving detection precision;
The flat window has uniform light transmittance, suitable for scenarios with high requirements for light signal uniformity, and no additional optical correction is needed
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Photosensitive Area Size (mm) | 1.1×1.1 | Window Type | Optical Glass/Flat |
| Max Dark Current (VR=10mV) (pA) | 5 | Junction Capacitance (VR=0V,f=100kHz) (pF) | 15 (Typ) |
| Rise Time (RL=1kΩ,VR=0V) (μs) | 0.05 (Typ) | Shunt Resistance (VR=10mV) (GΩ) | 20 (Typ) |
浏览全部型号
Low Dark Current Silicon PIN Photodiode（350-1060nm）
PDCT01-202
Photosensitive area size: 1.1×1.1mm, optical window type is optical glass ball window, number of pins: 2pin;
Low Dark Current Silicon PIN Photodiode（350-1060nm）
PDCT01-205
Photosensitive area size: 1.1×1.1mm, light window type is optical glass flat window, number of pins: 3pin.
Low Dark Current Silicon PIN Photodiode（350-1060nm）
PDCT02-201
Photosensitive area size Φ1.5mm (larger than the 1.1×1.1mm of the 01 series), light window type is optical glass flat window, number of pins is 2pin;
