UV-enhanced Silicon PIN Photodiode (DIP Package)

Part Number: PDCD07-802

Small size + quartz window design, meeting both the needs of compact layout and deep ultraviolet detection.



It avoids the space occupation problem of large-size quartz window models and is suitable for small deep ultraviolet sensing devices.

Caution

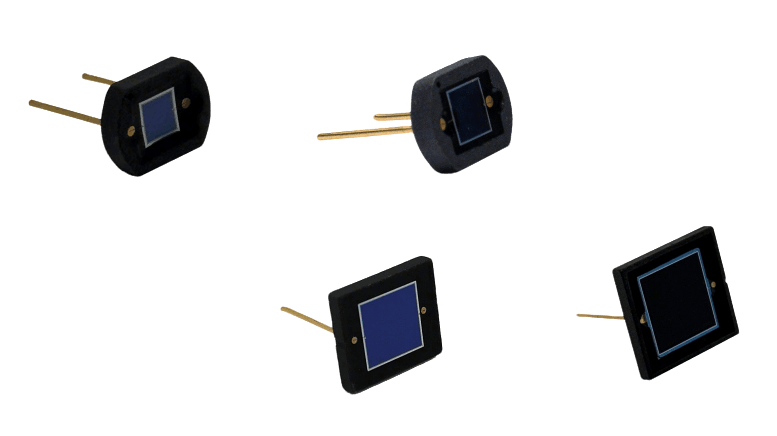

  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (mm)2.6×2.6Window MaterialQuartz
Spectral Response Range (nm)250~1060Dark Current (Max, pA)50
Junction Capacitance (Max, pF)90Equivalent Noise Power (W/Hz¹/²)6.7×10⁻¹⁵
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

UV-enhanced Silicon PIN Photodiode (DIP Package)

PDCD07-601
The window material is resin, and the photosensitive surface size is 2.6×2.6mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (DIP Package)

PDCD07-801
The default material for the window is resin, and the size of the photosensitive surface is 2.6×2.6mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (DIP Package)

PDCD10-801
The window material is resin, and the photosensitive surface size is 3.2×3.2mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (DIP Package)

PDCD34-701
The window material is resin, and the photosensitive surface size is 5.8×5.8mm.
Ships as soon as Same Day
Stock Items Included
