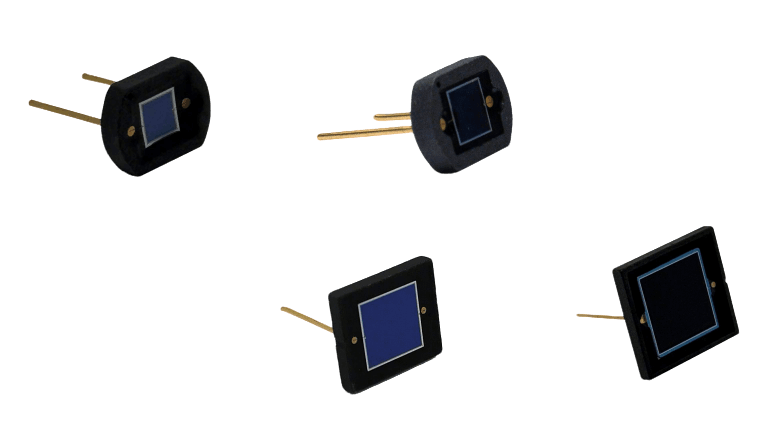

UV-enhanced Silicon PIN Photodiode (DIP Package)
Optoelectronic conversion devices with DIP dual in-line package
- High-sensitivity detection in the ultraviolet band
- Engineering adaptability of DIP packaging
- Wide temperature range stability and low noise
- Plug-and-play compatibility for multiple scenarios
Enter your email address to get free access, receive a product brochure, or enjoy special discounts.
Overview
Specifications
Applications
Introduction:
This ultraviolet-enhanced silicon PIN photodiode has a spectral response range of 250~1060nm, featuring low dark current, low junction capacitance, and optimized ultraviolet response. It adopts a DIP package and is suitable for optical power detection and optical analysis equipment.
It efficiently captures ultraviolet light signals, while being compatible with the inherent near-infrared band (700~1100nm) response capability of silicon PIN diodes, and is suitable for through-hole circuit installation scenarios.
Features:
- Composite coating with UV aging resistance
- Deep ultraviolet passivation to suppress leakage current
- DIP housing with vibration resistance and reliability
- Minimal cross-section response fluctuation

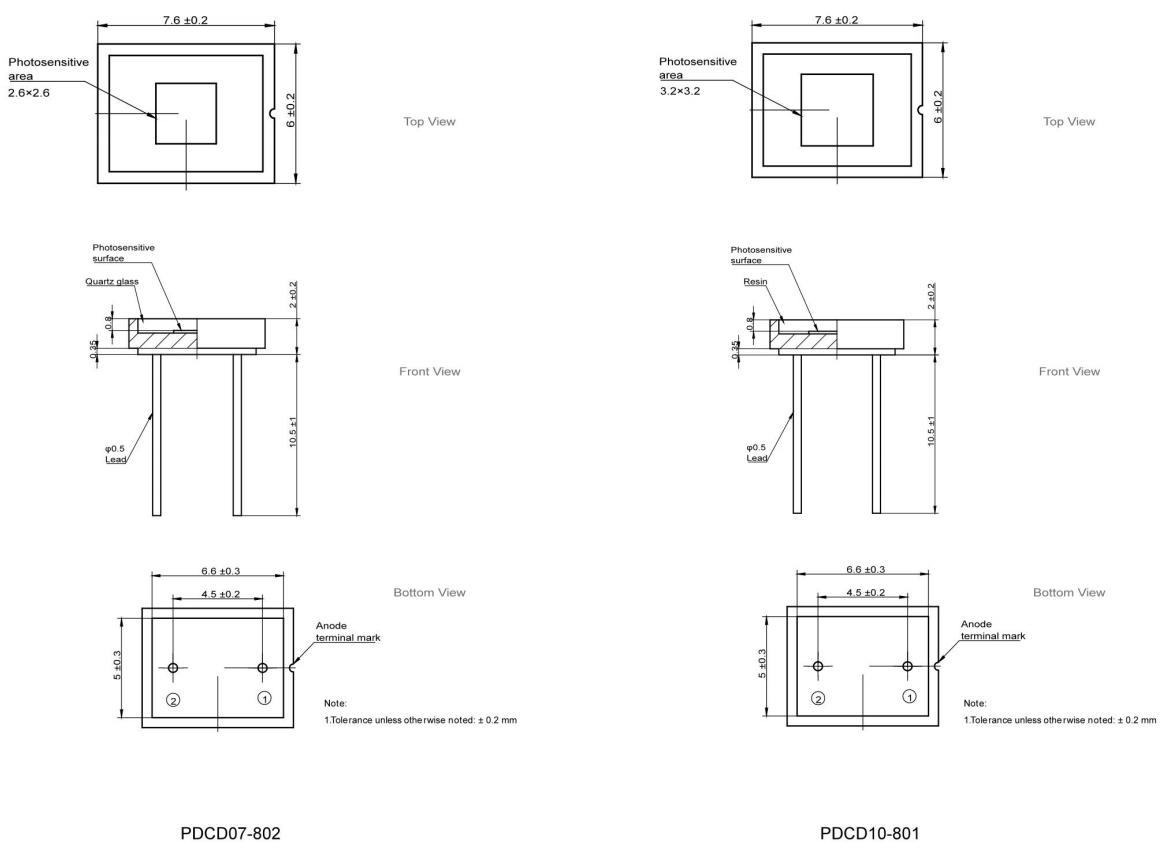

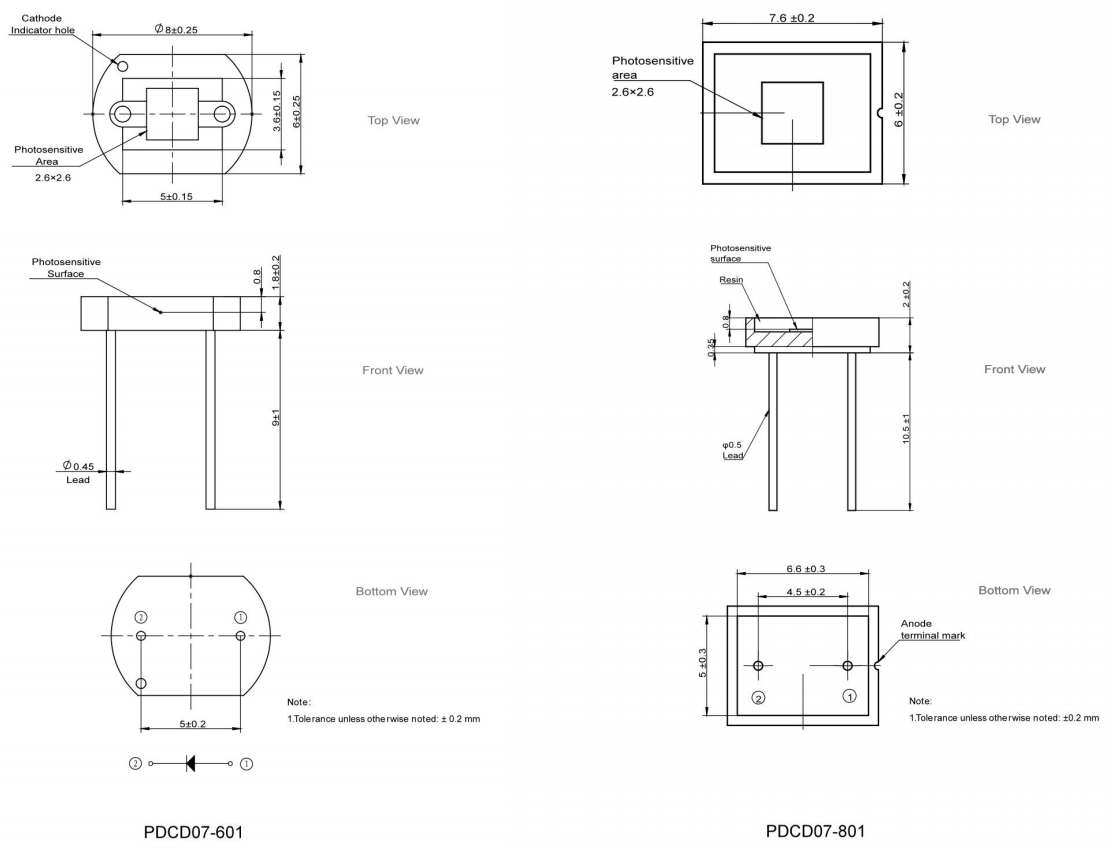

Dimension:
Explore Series
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD07-601
The window material is resin, and the photosensitive surface size is 2.6×2.6mm.
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD07-801
The default material for the window is resin, and the size of the photosensitive surface is 2.6×2.6mm.
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD07-802
The window material is quartz, and the photosensitive surface size is 2.6×2.6mm.
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD10-801
The window material is resin, and the photosensitive surface size is 3.2×3.2mm.
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD34-701
The window material is resin, and the photosensitive surface size is 5.8×5.8mm.
UV-Enhanced Silicon PIN Photodiode (DIP Package)
PDCD34-703
The window material is quartz, and the photosensitive surface size is 5.8×5.8mm.
UV-enhanced Silicon PIN Photodiode (DIP Package)
PDCD100-301
The window material is resin, and the photosensitive surface size is 10×10mm.
