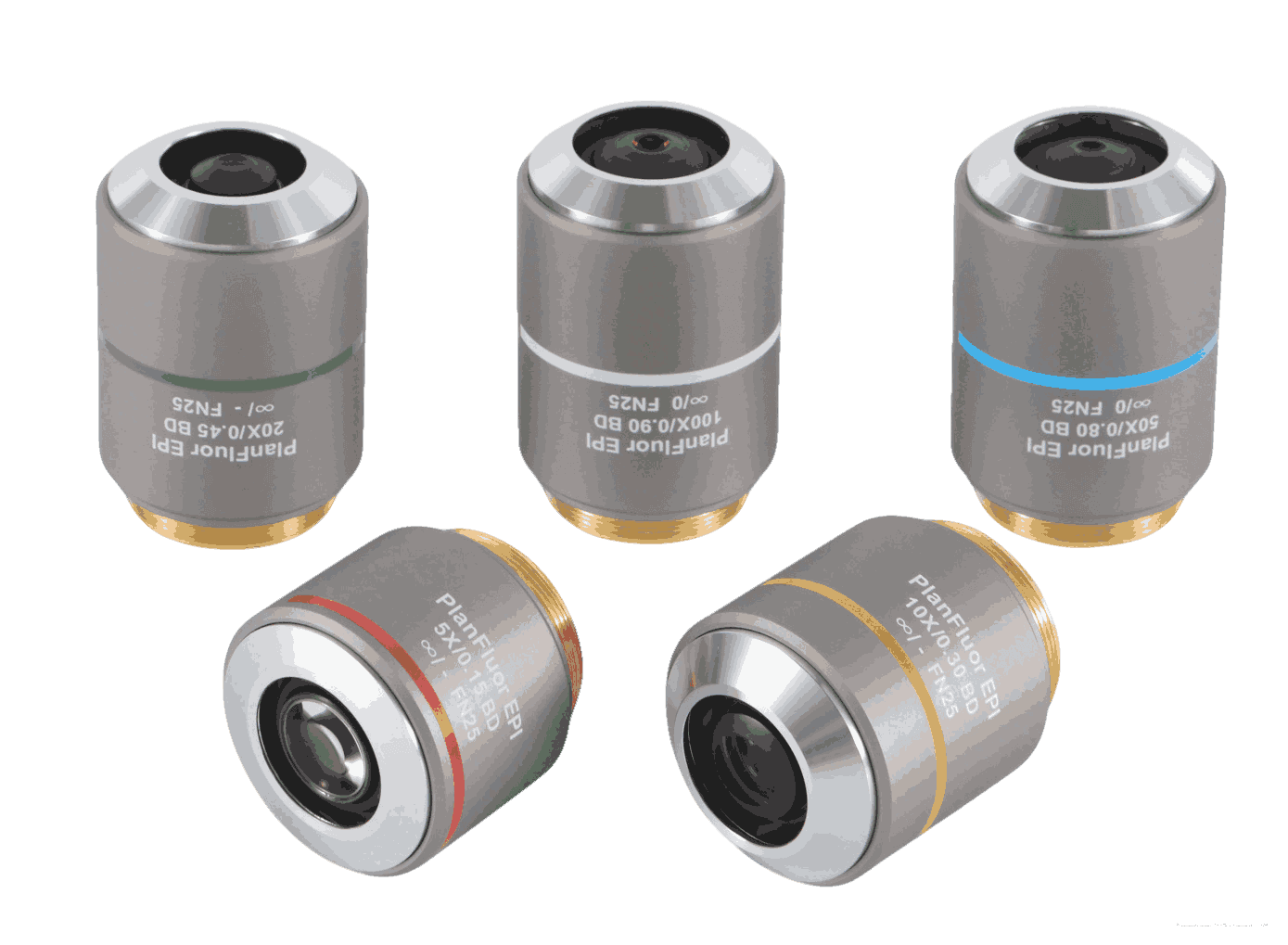

Brightfield and Darkfield Observation Objective Lens

Part Number: VL Plan Fluor EPI BD 100X

High-power extreme resolution (close to the diffraction limit), flat-field design to offset field curvature, semi-apochromatic to ensure color accuracy, and 45mm parfocal length for operational safety.

Applications include:
Detection of nanodefects in semiconductor chips (circuit gaps, nanoscratches), microscopic observation of ultra-precision materials (graphene), and high-power dark-field particle analysis.

Caution

Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

NA	0.9	WD	1mm
R	0.31um	±D.F	0.34um

Unit Price

Total

Ship Date

TBD

Qty.

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.
