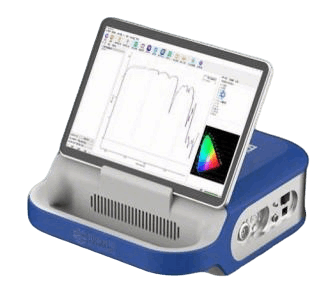

Field Pro Spectrometer

Part Number: VL-Field 1700

Cross-band detection without equipment replacement: One device can simultaneously perform "visible light vegetation monitoring + near-infrared atmosphere/mineral preliminary analysis", avoiding the need to carry multiple single-band devices, and reducing field load and procurement costs;


The near-infrared short-wave band offers high cost performance: Compared with the full-band model (VL-FieldSpec2500), it does not require expensive optical components adapted to longer near-infrared bands, resulting in lower costs. It is suitable for users whose near-infrared needs are limited to the short-wave band;


Strong environmental adaptability: Operating temperature of 0-40℃ + 35000mAh mobile power supply endurance, capable of handling most outdoor environments such as plateaus and mountainous areas, and suitable for scenarios like atmospheric spectroscopy and field preliminary screening of ores.

Images are for display purposes only.

Specifications

Standard Wavelength Range (Customizable)Resolution (Typical Value)Integration Time RangeWeight
350-1700 nm2.5 nm @ 350-950 nm; 8.0 nm @ 950-1700 nm60 μs - 65 s @ 350-950 nm; 100 μs - 5 s @ 950-1700 nm5.44 kg
Unit Price
Total
Ship Date
TBD
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

ModelResolution (Typical Value)Standard Wavelength Range (Customizable)Integration Time RangeWeight
VL-Field 11002.5 nm @ 350-1100 nm350-1100 nm60 μs - 65 s @ 350-1100 nm5.44 kgVL-Field 25002.5 nm @ 350-950 nm; 8.0 nm @ 950-2500 nm350-2500 nm60 μs - 65 s @ 350-950 nm; 100 μs - 50 ms @ 950-2500 nm5.44 kg
