Field Pro Spectrometer

"High-precision + Portable + Full-scene" professional-grade ground object spectral detection

High-precision optical performance
Full-scene portable adaptation
The software and hardware are deeply coordinated
High customization and expandability

Overview

Introduction:

The Field Pro Spectrometers are a wide-spectrum on-site detection system independently developed by Venuslab. Their core positioning is a "portable, high-precision ground object spectral measurement tool", specially designed for on-site detection in fields such as soil, minerals, crops, water quality, and forestry ecology.

They can replace traditional "bulky, large, and clumsy" laboratory spectrometers, enabling rapid sampling inspections in scenarios such as the wild and construction sites, without the need for sample preparation and submission procedures. Currently, the series includes three models: VL-Field1100, VL-Field1700, and VL-Field2500, covering different spectral measurement needs.

Features:

High resolution and sensitivity
Stable optical transmission
Strong outdoor endurance and protection
No sample preparation required
Data closed-loop processing
Low-threshold operation
Customization of wavelength range
Flexible expansion of accessories

Dimension:

VL-Field1100

VL-Field1700

VL-Field2500

Specifications

Common Parameter Specification Table

Wavelength Accuracy	≤0.5nm
Stray Light Proportion	≤0.1%
Wavelength Repeatability	≤0.2nm
Integration Time Range	60μs - 65s (partial bands support 100μs - 50ms)
Communication Interfaces	Supports Bluetooth, USB, WIFI, GPS multi-protocol communication
Operating Temperature Range	0℃ - 40℃
Storage Temperature Range	-15℃ - 45℃
Standard Power Adapter Parameters	12V/3A
Optional Mobile Power Parameters	24V/12V specification, 35000mAh capacity (supports long)

Accessories List

Main Accessories List

Accessory Name	Specification/Description
Main Unit	Field spectrometer host with integrated control module and display screen.
Spectral Probe	Reflectance probe with built-in full-spectrum tungsten halogen lamp (no extra light source required).
Power Adapter	Standard power adapter, 12V/3A.
Mobile Power Supply	Optional mobile power supply, 24V/12V, 35000mAh (supports long endurance for field operation).
Data Cable	USB cable for data transmission and device connection.
Calibration Diffuse Reflection White Board	Diffuse reflection white board (reflectance ≥97% in visible range, optional).
Leaf Measurement Clip	PTFE leaf clip (for plant leaf measurement, optional).
Narrow FOV Lens	Optional lens with field-of-view angle of 1°–10° (for small sample measurement).
Specialized Software	Pre-installed software specialized in field spectroscopy measurement and data analysis.
Carrying Case	Portable backpack for convenient transportation of the entire system.

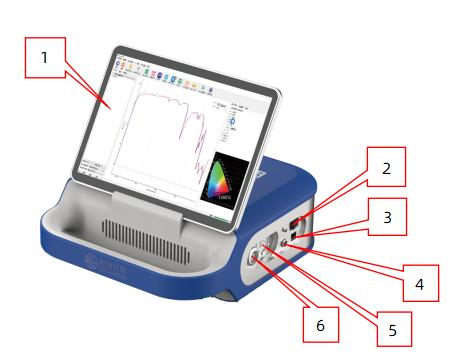

Interface Definition

Interface Definition Table

No.	Interface Name	Interface Description
1	Pad Display Screen	A touchscreen Pad display used for device operation, parameter setting, and measurement data display.
2	Ground Object Host Power Switch	A physical switch that controls the activation and deactivation of the ground object spectrometer host.
3	USB Communication Port	An interface that enables data transmission and communication connection between the ground object spectrometer host and the Pad.
4	Ground Object Host Power Port	An interface used to connect a 12V/3A power adapter or mobile power supply to provide working power for the ground object spectrometer host.
5	Ground Object Probe Power Port	An interface used to connect the probe power cable and provide working power for the ground object reflective probe.
6	Probe Optical Fiber Interface	An interface used to connect the optical fiber of the ground object reflective probe, with the interface specification of SMA905.

Explore Series

	Model	Resolution (Typical Value)	Standard Wavelength Range (Customizable)	Integration Time Range	Weight
	VL-Field 1100	2.5 nm @ 350-1100 nm	350-1100 nm	60 μs - 65 s @ 350-1100 nm	5.44 kg		VL-Field 1700	2.5 nm @ 350-950 nm; 8.0 nm @ 950-1700 nm	350-1700 nm	60 μs - 65 s @ 350-950 nm; 100 μs - 5 s @ 950-1700 nm	5.44 kg		VL-Field 2500	2.5 nm @ 350-950 nm; 8.0 nm @ 950-2500 nm	350-2500 nm	60 μs - 65 s @ 350-950 nm; 100 μs - 50 ms @ 950-2500 nm	5.44 kg
