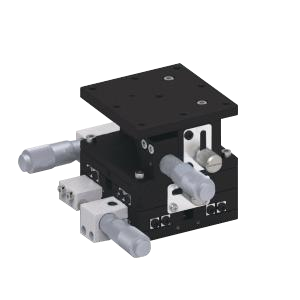

VL Multi-Axis & Integrated Stages

Part Number: VL-XYZ60A-M

Advantages:Versatile – detachable to single/double axes; cost-effective.

Differentiation:Integrated structure cuts center-of-gravity issues and cumulative errors vs. stacked stages.

Applications:Spatial filter systems, laser beam expansion/collimation, fiber coupling.

Images are for display purposes only.

Specifications

Axis Configuration	Travel Range	Load Capacity	Resolution
3 Axes (XYZ)	±6.5 mm	3 kgf (29.4N)	0.01 mm

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Load Capacity	Axis Configuration	Resolution
	VL-XYZ60S-M	13 mm	10 kg (High Load)	3 Axes (XYZ)	0.01 mm		VL-5A-Int	13 mm / ±5°	3 kg	5 Axes (XYZ θₓθᵧθ_z)	0.01 mm / 5′
