VL Multi-Axis & Integrated Stages

Multi-dimensional Spatial Precision Positioning & Attitude Adjustment System

Aluminum alloy (general use) & SUS440C stainless steel (high vacuum/thermal stability) – fits teaching to demanding research.
Monoblock 5/3-axis stages eliminate instability/cumulative errors, ensuring long-term optical path stability.

Overview

Spatial Freedom, Precisely Defined

The VL-M series is a full-stack solution launched by VenusLab for complex spatial movements. From flexible modular XYZ combinations to the "five-in-one" integrated stage specially designed for spatial filters, this series covers the full size range from 25mm to 125mm. It addresses the common pain points of "shaking" and "non-orthogonality" in multi-axis setup, allowing you to experience rock-solid control whether you are performing simple sample movement or nanoscale fiber coupling.

Applications

Achieve micron-level alignment between the pinhole and the laser spot using a five-axis integrated stage.
Multi-degree-of-freedom fine adjustment to optimize the coupling efficiency of laser light into optical fibers.
The stainless steel version is used for aligning wafers or masks in semiconductor vacuum chambers.
Precise attitude establishment of beam splitters and reflectors in complex optical paths.

Technical Specifications

Explore Series

	Model	Travel Range	Load Capacity	Axis Configuration	Resolution
	VL-XYZ60S-M	13 mm	10 kg (High Load)	3 Axes (XYZ)	0.01 mm		VL-5A-Int	13 mm / ±5°	3 kg	5 Axes (XYZ θₓθᵧθ_z)	0.01 mm / 5′		VL-XYZ60A-M	±6.5 mm	3 kgf (29.4N)	3 Axes (XYZ)	0.01 mm

Join Venus Lab Inner Lens for exclusive science and product updates.

Join our mailing list today:

When you sign up for our insider updates, we’ll handle your personal information with care and in accordance with our privacy policy.

Email: sales@venuslabtech.com

Tel: +65 8099 5547

WhatsApp: +65 8099 5547

Wechat: +65 8099 5547

Postal Code: 119276

Address: 15 KENT RIDGE CRESCENT

Company Info

About Us Privacy Policy Terms of Use Cookie Policy Data Protection Statement

Products

Light Sources Detectors Imaging Optics Opto-Mechanics Optical Test & Metrology Systems & Applications

Help Center

Knowledge Center FAQs Contact Us

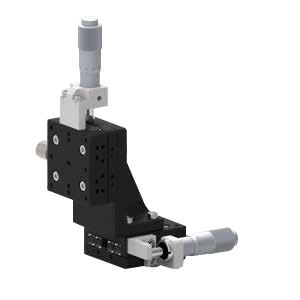

Model	Stage Size	Axis Configuration	Travel Range	Drive Method	Guideway Type	Material
VL-XYZ40A-M	40x40 mm	XYZ (3 Axes)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XYZ60A-M2	60x60 mm	XYZ (3 Axes)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XYZ80A-M	80x80 mm	XYZ (3 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XYZ90A-M	90x90 mm	XYZ (3 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XYZ125A-M	125x125 mm	XYZ (3 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XYZ40A-C	40x40 mm	XYZ (3 Axes)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-XYZ50A-C	50x50 mm	XYZ (3 Axes)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-XYZ60A-C	60x60 mm	XYZ (3 Axes)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-XYZ90A-C	90x90 mm	XYZ (3 Axes)	25 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-X40A-M	40x40 mm	X (1 Axis)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-X60A-M	60x60 mm	X (1 Axis)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-X80A-M	80x80 mm	X (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-X90A-M	90x90 mm	X (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-X125A-M	125x125 mm	X (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-X40A-C	40x40 mm	X (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-X60A-C	60x60 mm	X (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-X90A-C	90x90 mm	X (1 Axis)	25 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Y40A-M	40x40 mm	Y (1 Axis)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Y60A-M	60x60 mm	Y (1 Axis)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Y80A-M	80x80 mm	Y (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Y90A-M	90x90 mm	Y (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Y125A-M	125x125 mm	Y (1 Axis)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Y40A-C	40x40 mm	Y (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Y60A-C	60x60 mm	Y (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Y90A-C	90x90 mm	Y (1 Axis)	25 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Z40A-M	40x40 mm	Z (1 Axis)	10 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Z60A-M	60x60 mm	Z (1 Axis)	10 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Z80A-M	80x80 mm	Z (1 Axis)	10 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Z90A-M	90x90 mm	Z (1 Axis)	10 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Z125A-M	125x125 mm	Z (1 Axis)	10 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-Z40A-C	40x40 mm	Z (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Z60A-C	60x60 mm	Z (1 Axis)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-Z90A-C	90x90 mm	Z (1 Axis)	25 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-XY40A-M	40x40 mm	XY (2 Axes)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XY60A-M	60x60 mm	XY (2 Axes)	13 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XY80A-M	80x80 mm	XY (2 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XY90A-M	90x90 mm	XY (2 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XY125A-M	125x125 mm	XY (2 Axes)	25 mm	Side-Mounted Differential Head	Crossed Roller	Aluminum Alloy
VL-XY40A-C	40x40 mm	XY (2 Axes)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
VL-XY60A-C	60x60 mm	XY (2 Axes)	13 mm	Center Drive (Micrometer Head)	Crossed Roller	Aluminum Alloy
