InGaAs-APDI-AG AV Photodetector

High-sensitivity photoelectric detection equipment for near-infrared light detection

High-sensitivity weak light detection
Wide gain adjustment range
Multiple models to adapt to different needs
Stable and reliable performance

Download

Data Sheet

Overview

Detailed introduction and product dimension diagram：

This product is an indium gallium arsenide APD detector based on the avalanche effect, with a photosensitive range of 800nm to 1700nm. It is of the amplifying type and has 8 adjustable gain levels, capable of quantitative photoelectric conversion, featuring a wide dynamic range, excellent performance, and high cost-effectiveness. It provides comprehensive technical support and non-standard customization services, and is suitable for various photoelectric development scenarios such as weak light and near-infrared light detection.

Specifcations

Core identical parameters：

Parameter Name	Parameter Details

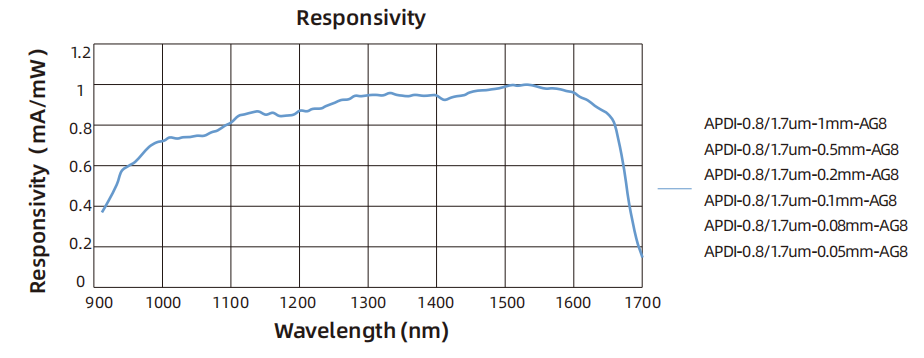

Spectral Response Range	800 - 1700nm
Detector Material	Indium Gallium Arsenide (InGaAs)
Detector Type	Amplified, Adjustable Gain Avalanche Photodetector
Gain Adjustment Method	1. Rotary gear adjustment: 0 - 70dB, one step per 10dB, 8 steps in total 2. Single - turn potentiometer to adjust the APD's own gain; The bandwidth is inversely proportional to the gain
Signal Amplitude	Hi - Z load: 0 - 10V; 50Ω load: 0 - 5V
Detector Net Weight	0.1kg
Operating Temperature	10 - 40℃
Storage Temperature	-20 - 70℃
Power Supply Interface	Power Switch: Slide switch with LED indicator Signal Interface: BNC female connector Gain Adjustment: Single - turn potentiometer, 8 - position knob Support Rod Interface: M4 X 2 Optical Interface: SM1 X 1, SM0.5 X 1
Appearance Size	2.78" X 2.21" X 1.20" (70.6 mm X 56.2 mm X 30.5 mm)

Adjustable Gain Parameters

Eight-speed quantitatively adjustable gain parameters:

	0dB	10dB	20dB	30dB
Gain (Hi-Z)	1.51×10³ V/A	4.75×10³ V/A	1.5×10⁴ V/A	4.75×10⁴ V/A
Gain (50Ω)	0.75×10³ V/A	2.38×10³ V/A	0.75×10⁴ V/A	2.38×10⁴ V/A
Bandwidth (BW)	12MHz	1.6MHz	1MHz	260kHz
Noise (RMS)	258μV	192μV	207μV	211μV
	40dB	50dB	60dB	70dB
Gain (Hi-Z)	1.51×10⁵ V/A	4.75×10⁵ V/A	1.5×10⁵ V/A	4.75×10⁶ V/A
Gain (50Ω)	0.75×10⁵ V/A	2.38×10⁵ V/A	0.75×10⁶ V/A	2.38×10⁶ V/A
Bandwidth (BW)	90kHz	28kHz	9kHz	3kHz
Noise (RMS)	214μV	234μV	277μV	388μV
Signal Offset	±8mV(Typ.) ，±12mV(Max)
