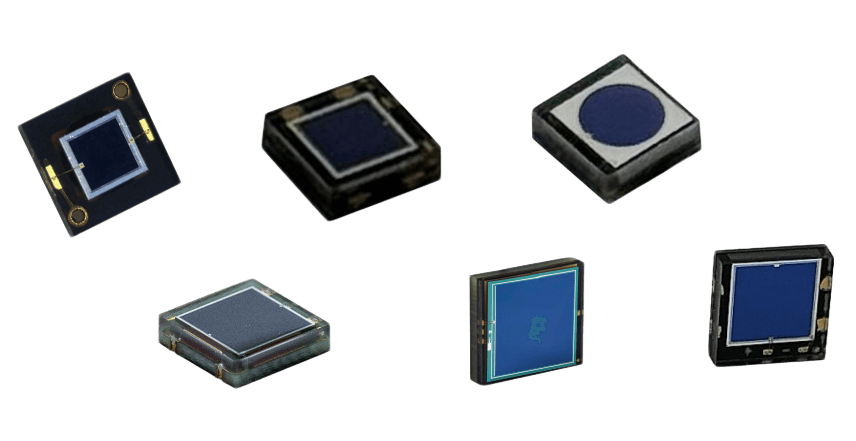

Low Dark Current Silicon PIN Photodiode (COB packaging)
Overview
Introduction:

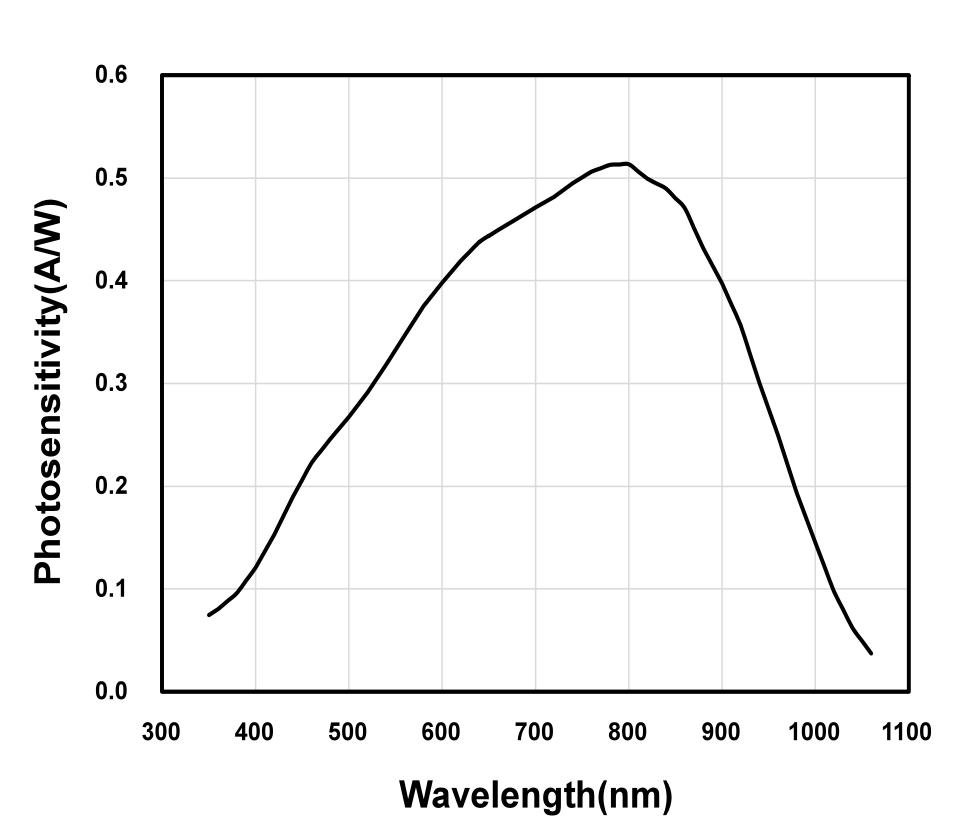

This product features a spectral response range of 50~1060nm, with extremely low dark current and low junction capacitance characteristics. It adopts COB packaging and is suitable for lead-free reflow soldering, making it widely applicable in optoelectronic measuring instruments, optical analysis equipment, and optical power monitoring scenarios.
It uses Chip-on-Board (COB) packaging, which balances miniaturization and industrial-grade reliability, enabling it to accurately capture optical signals and convert them into electrical signals.
Features:
- Extremely low dark current, accurate detection of weak light
- Strong adaptability of COB packaging, convenient integration
- Wide spectral response, wide scene coverage
- Industrial-grade reliability, stable and durable

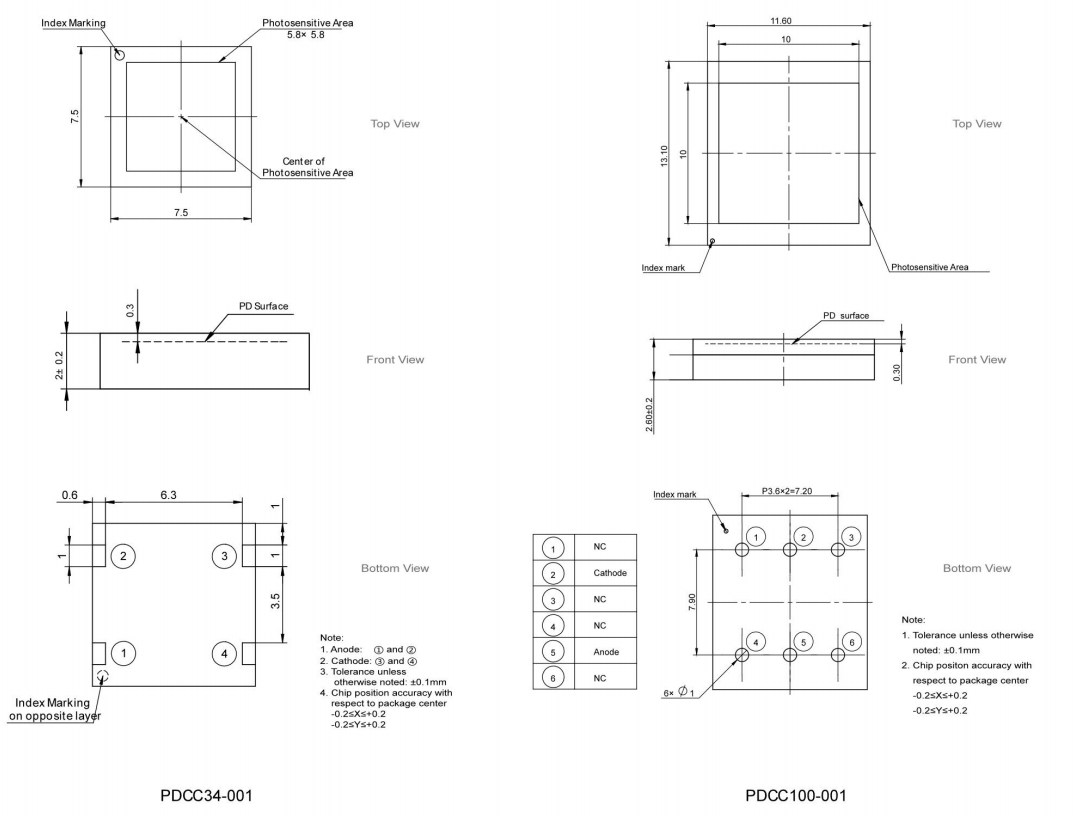

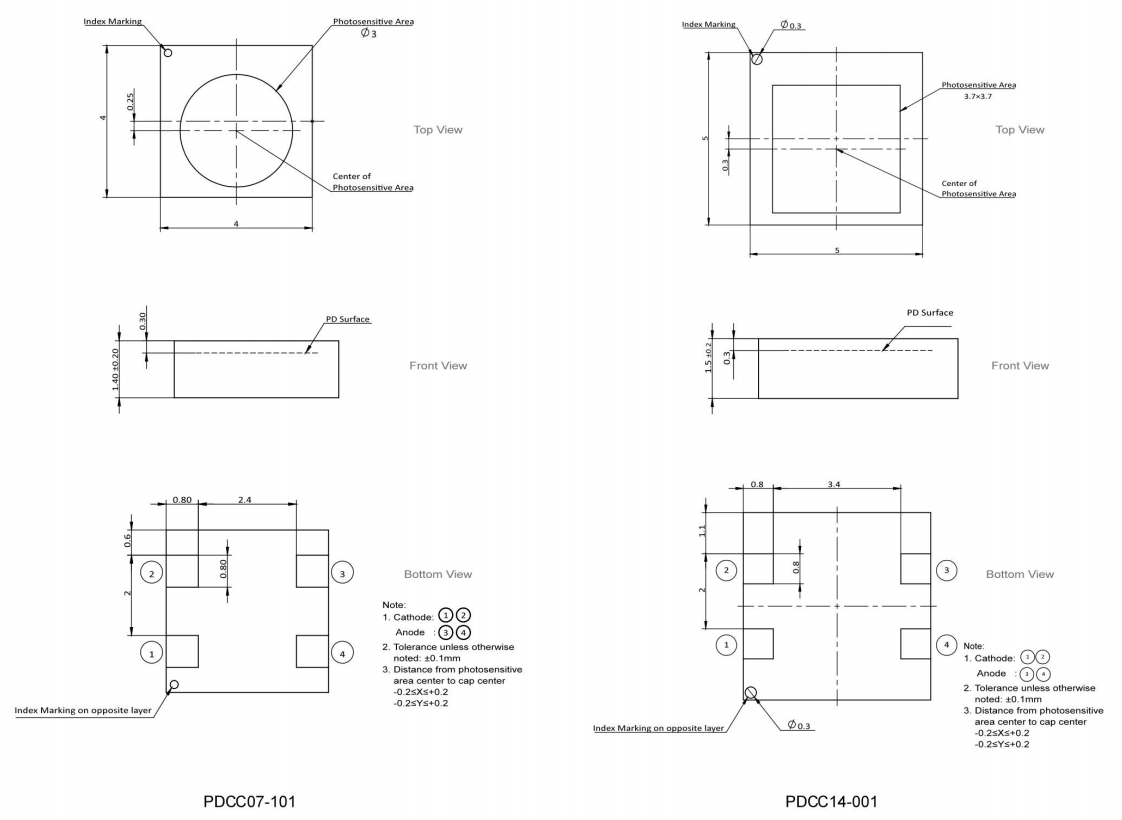

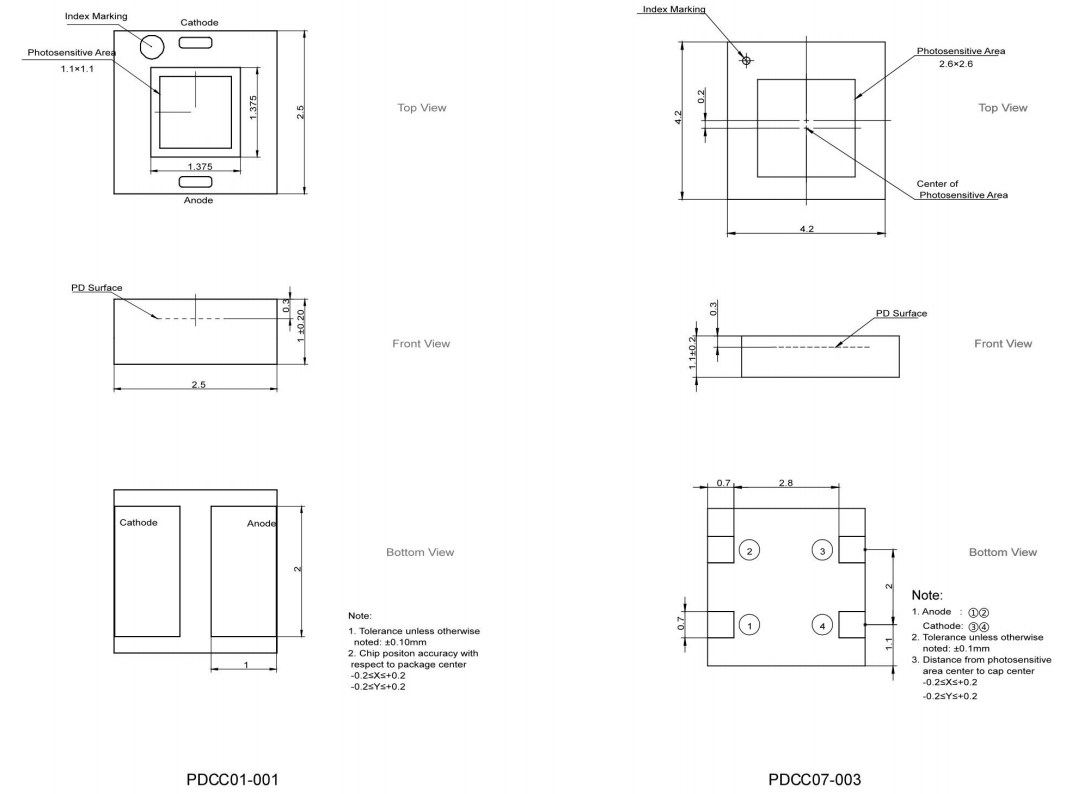

Dimension:
Specifcations
Applications
Serivce & Support
Explore Series
Model
Photosensitive Area Size (with Shape)
Rise Time (Typ., μs)

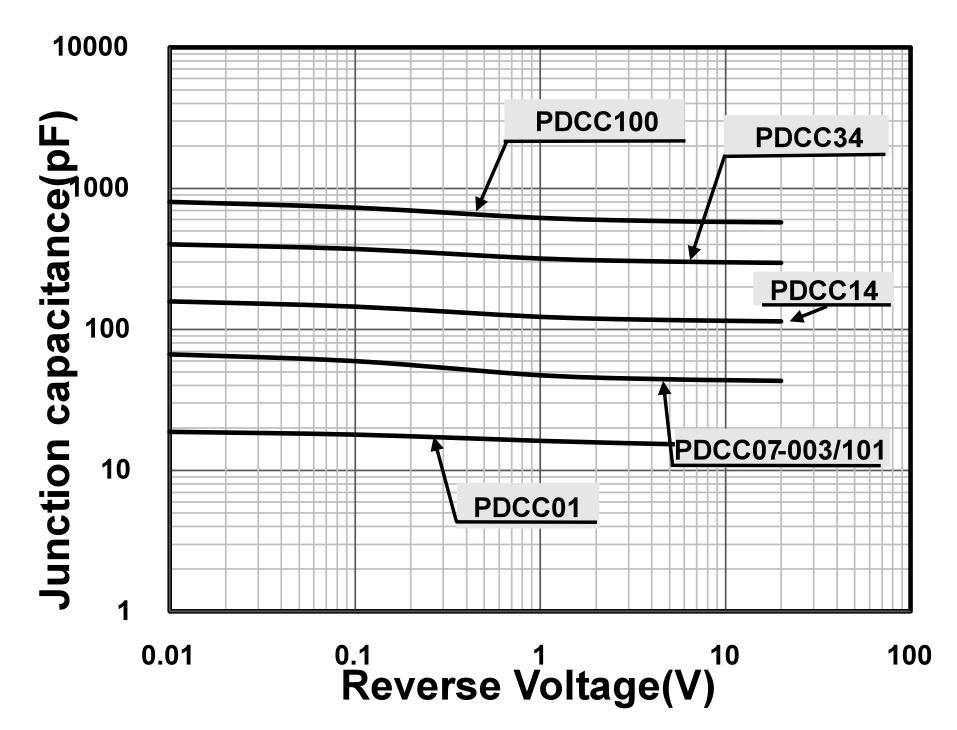

Junction Capacitance (Typ., pF)

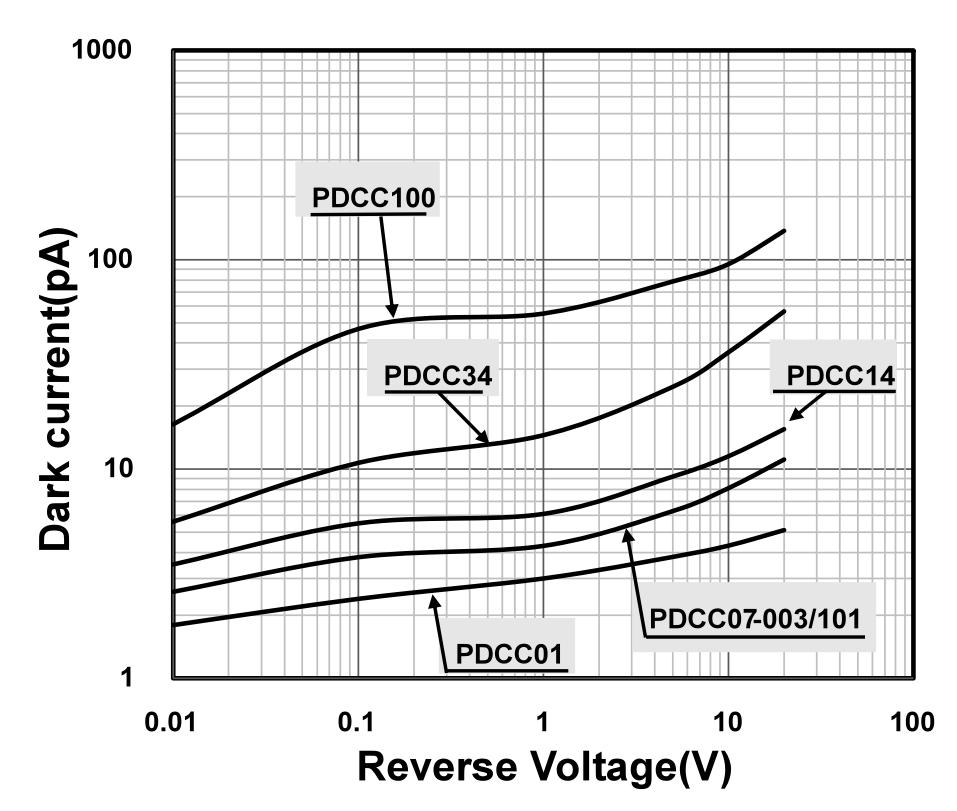

Dark Current (Typ./Max., pA)
Equivalent Noise Power (Typ., W/Hz¹/²)
Shunt Resistance (Typ./Min., GΩ)
Action
PDCC01-001
1.1×1.1mm (Square)
0.04
1.125
1/6
2.5×10⁻¹⁵
1.7/10
PDCC07-003
2.6×2.6mm (Square)
0.18
80
2.5/15
3.6×10⁻¹⁵
0.8/5
PDCC07-101
Φ3.0mm (Circular)
0.18
80
2.5/15
3.6×10⁻¹⁵
0.8/5
PDCC14-001
3.7×3.7mm (Square)
0.35
160
3.5/20
4.7×10⁻¹⁵
0.5/3
PDCC34-001
5.8×5.8mm (Square)
0.9
400
5/30
5.6×10⁻¹⁵
0.3/2
PDCC100-001
10×10mm (Square)
1.8
800
15/90
9.8×10⁻¹⁵
0.1/0.7
