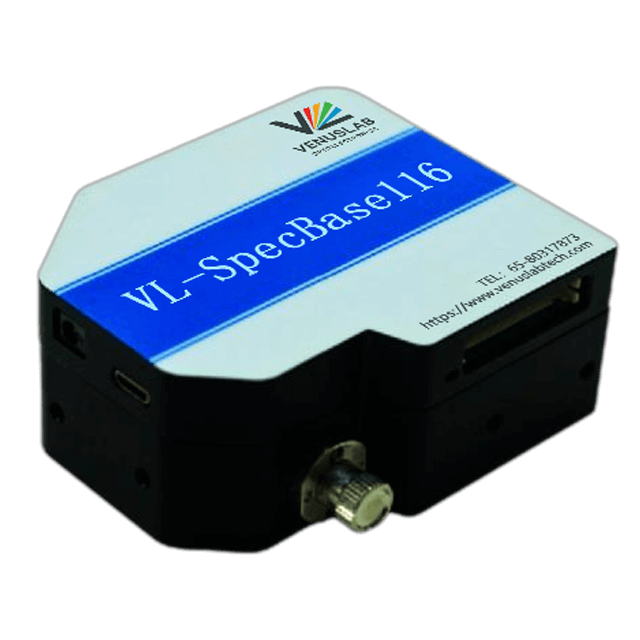

VL-SpecBase116 Fiber Optic Spectrometer
Balance "practical performance" and "cost-effectiveness"
- Wide spectrum adaptation and high flexibility
- Excellent optical performance
- Rich interfaces and expansion capabilities
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Interface Definition
Typical Spectrum
Introduction:
VL-SpecBase116 is a basic fiber optic spectrometer launched by Venuslab. Making it easy to deploy in space-constrained scenarios. Its spectral range is configurable (190-1100nm), and it is equipped with a 2048-pixel channel CCD detector. The fiber interface is Key-SMA905, supporting USB 2.0, RS232 communication interfaces, and a 24PIN extended function interface, which can realize the enabling, intensity control, and power feedback of the supporting light source.
This product can meet various measurement scenarios such as color measurement, radiation measurement, absorption measurement, fluorescence spectroscopy, and Raman spectroscopy. It has a working temperature range of 0-40℃ and a humidity range of 20-85%, demonstrating good environmental adaptability.
Features:
- Compact and small structural design
- Configurable wide spectral range
- Excellent optical performance and stability
- Flexible optical fiber adaptation capability
- Rich interfaces and extended functions
Dimension:

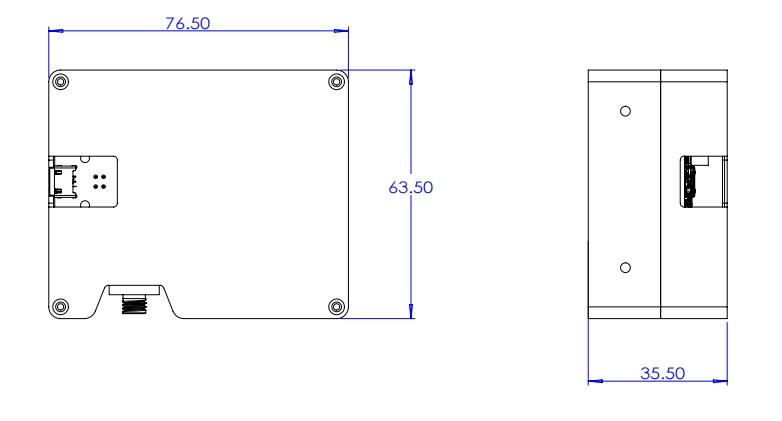

2D Dimension Drawing of VL-SpecBase116-180-540

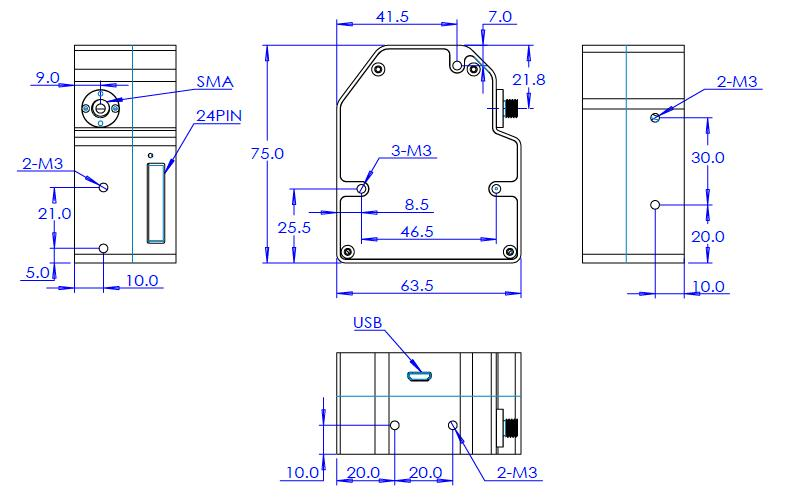

2D Dimension Drawings of Other Standard Models
浏览全部型号
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-200-400
It adopts an ultraviolet-enhanced CMOS detector, optimized specifically for the 200-400nm deep ultraviolet band, and is equipped with a 25μm slit to achieve an ultra-high resolution of 0.5nm@25μm.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-190-540
The spectral range covers 190-540nm, including deep ultraviolet (190-400nm) and short-wave visible light (400-540nm). It is the model with the lowest starting wavelength (190nm) in the series.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-790-1050
Its spectral range is focused on the 790-1050nm near-infrared band, making it the only model in the series exclusively dedicated to the near-infrared range.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-200-920
The spectral range spans 200-920nm, covering deep ultraviolet (200-400nm), full visible light (400-760nm), and short-wave near-infrared (760-920nm).
