| 数量 | 价格(USD) | 发货日期 |
|---|---|---|
| 1-10 | $170.00 | 待定 |
| 10- | $170.00 | 待定 |
注意：发货日期以上是因库存不足而调整的。
订阅Venus Lab Inner Lens，抢先获得行业最新
科研突破、新品发布和特别活动的独家内幕。
当订阅我们的品牌资讯时，您的个人信息将被妥善保护，
并严格遵守我们的隐私政策。

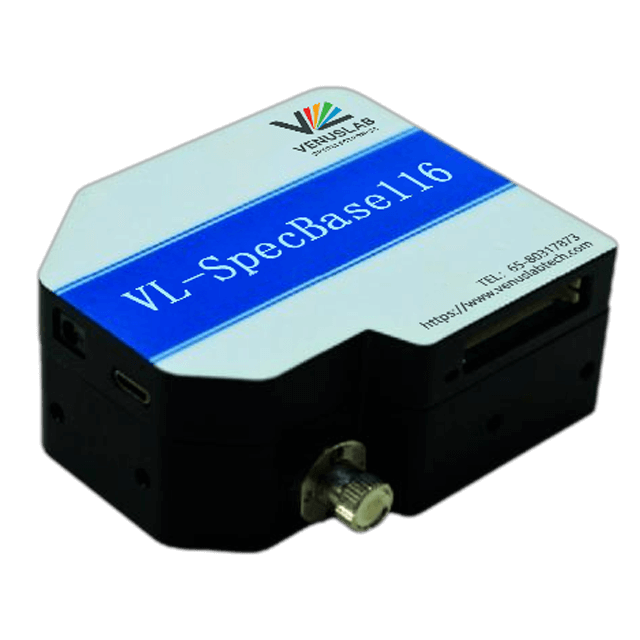

VL-SpecBase116 Fiber Optic Spectrometer
产品编号: VL-SpecBase116-790-1050
Targeted optimization for the near-infrared band, with response sensitivity adapted to the material characteristics in the 790-1050nm range (such as near-infrared absorption of C-H and O-H bonds), resulting in higher signal detection efficiency in the near-infrared range compared to multi-band covering models (e.g., VL-SpecBase116-350-1050);
High resolution of 0.50nm with a 10μm slit, enabling clear distinction of fine absorption peaks in the near-infrared band (such as differences in C-H bond vibrations of different organic substances);
Operating temperature of 0-40℃ and humidity of 20-85%, adapting to various near-infrared measurement environments such as industrial sites and laboratories, with strong data stability during long-term operation.
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Spectral Range | 790~1050 | Spectral Resolution (10 µm) | 0.50 |
| Spectral Resolution (25 µm) | 0.70 | Spectral Resolution (50 µm) | 0.90 |
| Spectral Resolution (100 µm) | - | Spectral Resolution (200 µm) | - |
浏览全部型号
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-200-400
It adopts an ultraviolet-enhanced CMOS detector, optimized specifically for the 200-400nm deep ultraviolet band, and is equipped with a 25μm slit to achieve an ultra-high resolution of 0.5nm@25μm.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-190-540
The spectral range covers 190-540nm, including deep ultraviolet (190-400nm) and short-wave visible light (400-540nm). It is the model with the lowest starting wavelength (190nm) in the series.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-200-920
The spectral range spans 200-920nm, covering deep ultraviolet (200-400nm), full visible light (400-760nm), and short-wave near-infrared (760-920nm).
