| 数量 | 价格(USD) | 发货日期 |
|---|---|---|
| 1-10 | $170.00 | 待定 |
| 10- | $170.00 | 待定 |
注意：发货日期以上是因库存不足而调整的。
订阅Venus Lab Inner Lens，抢先获得行业最新
科研突破、新品发布和特别活动的独家内幕。
当订阅我们的品牌资讯时，您的个人信息将被妥善保护，
并严格遵守我们的隐私政策。

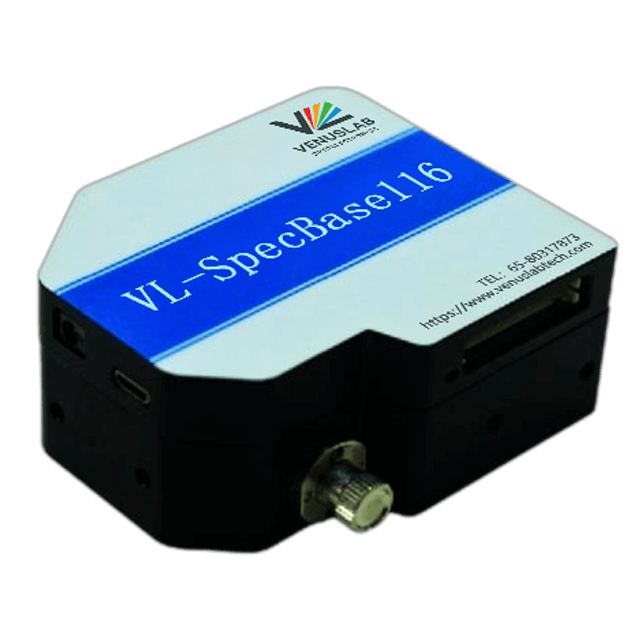

VL-SpecBase116 Fiber Optic Spectrometer
产品编号: VL-SpecBase116-200-400
It features industry-leading UV band response sensitivity, with CCD quantized background noise ≤30 RMS (at minimum integration time) and stray light controlled below 0.3%, ensuring accurate capture of characteristic absorption peaks of gas molecules such as SO₂ and NO. It also exhibits excellent temperature stability performance, with a wavelength temperature drift of only 0.3 pixel/℃, meeting the long-term operation requirements for flue gas online monitoring.
It is the only model covering the 200-400nm deep ultraviolet band. Compared with other models, it incorporates an additional ultraviolet-enhanced coating process, and its resolution is more than 30% higher than that of near-infrared models. The slit size is fixed at 25μm, and it does not support optional configurations of 50μm/100μm, focusing on high-resolution scenarios.
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Spectral Range | 200~400 | Spectral Resolution (10 µm) | 0.50 |
| Spectral Resolution (25 µm) | 0.70 | Spectral Resolution (50 µm) | 0.80 |
| Spectral Resolution (100 µm) | 1.30 | Spectral Resolution (200 µm) | 2.00 |
浏览全部型号
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-190-540
The spectral range covers 190-540nm, including deep ultraviolet (190-400nm) and short-wave visible light (400-540nm). It is the model with the lowest starting wavelength (190nm) in the series.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-790-1050
Its spectral range is focused on the 790-1050nm near-infrared band, making it the only model in the series exclusively dedicated to the near-infrared range.
VL-SpecBase116 Fiber Optic Spectrometer
VL-SpecBase116-200-920
The spectral range spans 200-920nm, covering deep ultraviolet (200-400nm), full visible light (400-760nm), and short-wave near-infrared (760-920nm).
