GaN-AG Photodetector
Optoelectronic devices based on wide bandgap semiconductors.
- Full ultraviolet band coverage
- Flexible and adjustable gain
- High reliability and environmental adaptability
- Complete customization and supporting facilities
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Adjustable gain parameters
Responsivity
Introduction:
This GaN-based photodetector has a photosensitive range covering 210nm to 440nm, making it suitable for ultraviolet light measurement, and features high responsivity at a wavelength of 355nm. It adopts a vacuum flange structure, compatible with a high vacuum environment of ≤10⁻⁴Pa. As an amplifying detector, it supports 8 adjustable gain levels, enabling quantitative photoelectric conversion in scenarios with different light intensities. Additionally, it offers advantages such as high stability, long service life, and high cost performance, and also provides comprehensive technical support and non-standard customization services.
Features:
- Light-sensitive range: 210nm~440nm (high response at 355nm)
- Compatible with vacuum flanges for high vacuum up to ≤10⁻⁴Pa
- 8 adjustable gain levels for quantitative measurement of different light intensities
- Moreover, it features high stability, long service life and high cost performance
- Technical support and non-standard customization are also available

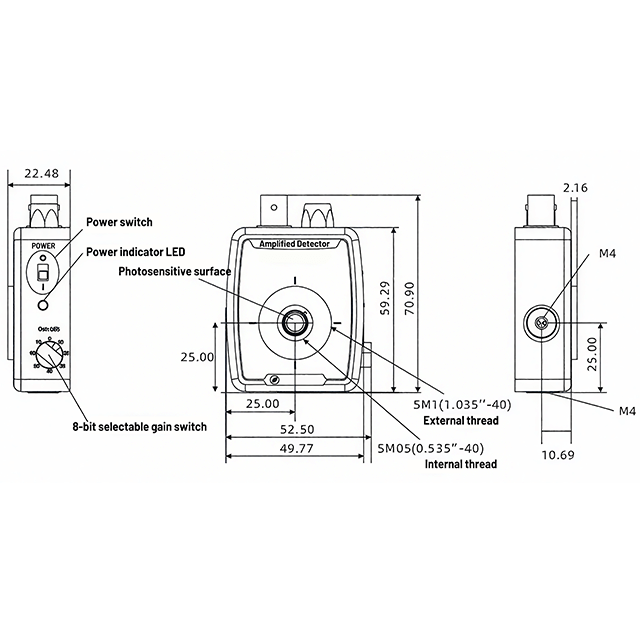

Dimension:
浏览全部型号
GaN-AG Photodetector
GaN-210/370nm-0.5 X 0.5mm-AG8
<0.22mm ultra-small photosensitive surface, 210~370nm wavelength band.
