Introduction:

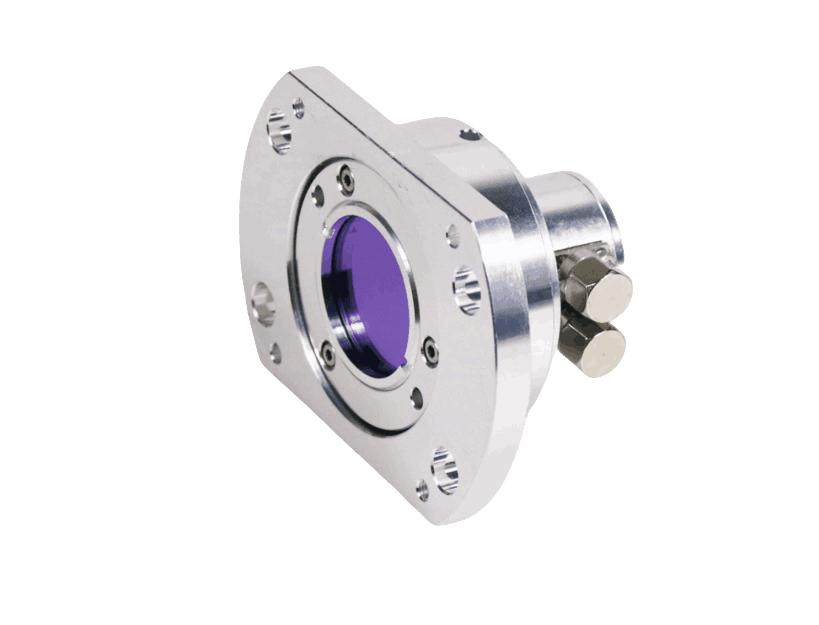

This product is a SiC-based vacuum ultraviolet (VUV) amplification-type photodetector with a photosensitive range of 180nm~200nm, commonly used for VUV light measurement. It features high stability, long service life, resistance to high-flux VUV radiation, visible-blind property and low dark current. Equipped with 8-level adjustable gain for quantitative photoelectric conversion, it supports a high-vacuum environment (≤10⁻⁴Pa) with a vacuum flange structure, and provides technical support and non-standard customization services.

Features:

• SiC-based photodetector with a photosensitive range of 180nm~200nm, commonly used for vacuum ultraviolet (VUV) light measurement ;
• High stability, long service life, and resistance to high-flux VUV radiation ;
• Visible-blind property and low dark current ;
• High responsivity at the 193nm VUV wavelength ;
• Vacuum flange structure, compatible with high vacuum degree (≤10⁻⁴Pa) ;
• Amplification-type detector with 8-level adjustable gain, enabling quantitative photoelectric conversion and suitable for measuring scenarios with different light intensities ;
• Excellent performance, high cost-effectiveness, and comprehensive technical support ;
• Provision of non-standard customization services .

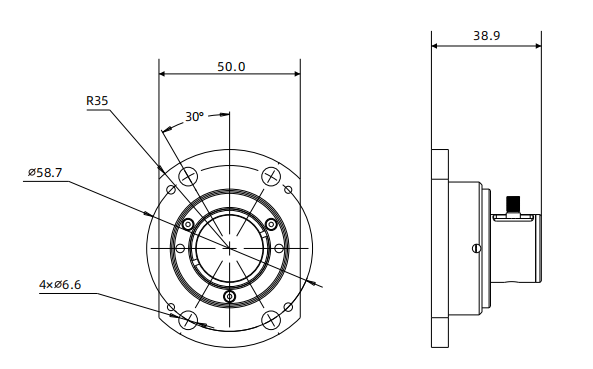

Dimension:
