Low Dark Current Silicon PIN Photodiode (DIP Package)

Part Number: PDCD07-001

High-precision low-light detection: low dark current + low junction capacitance, capable of capturing weak light signals at the nW level.


Miniaturization + fast response: the smallest photosensitive surface, can be embedded in small devices such as portable instruments, with a rise time of 0.15μs, suitable for high-frequency optical signal monitoring such as short-distance optical communication feedback.

Caution

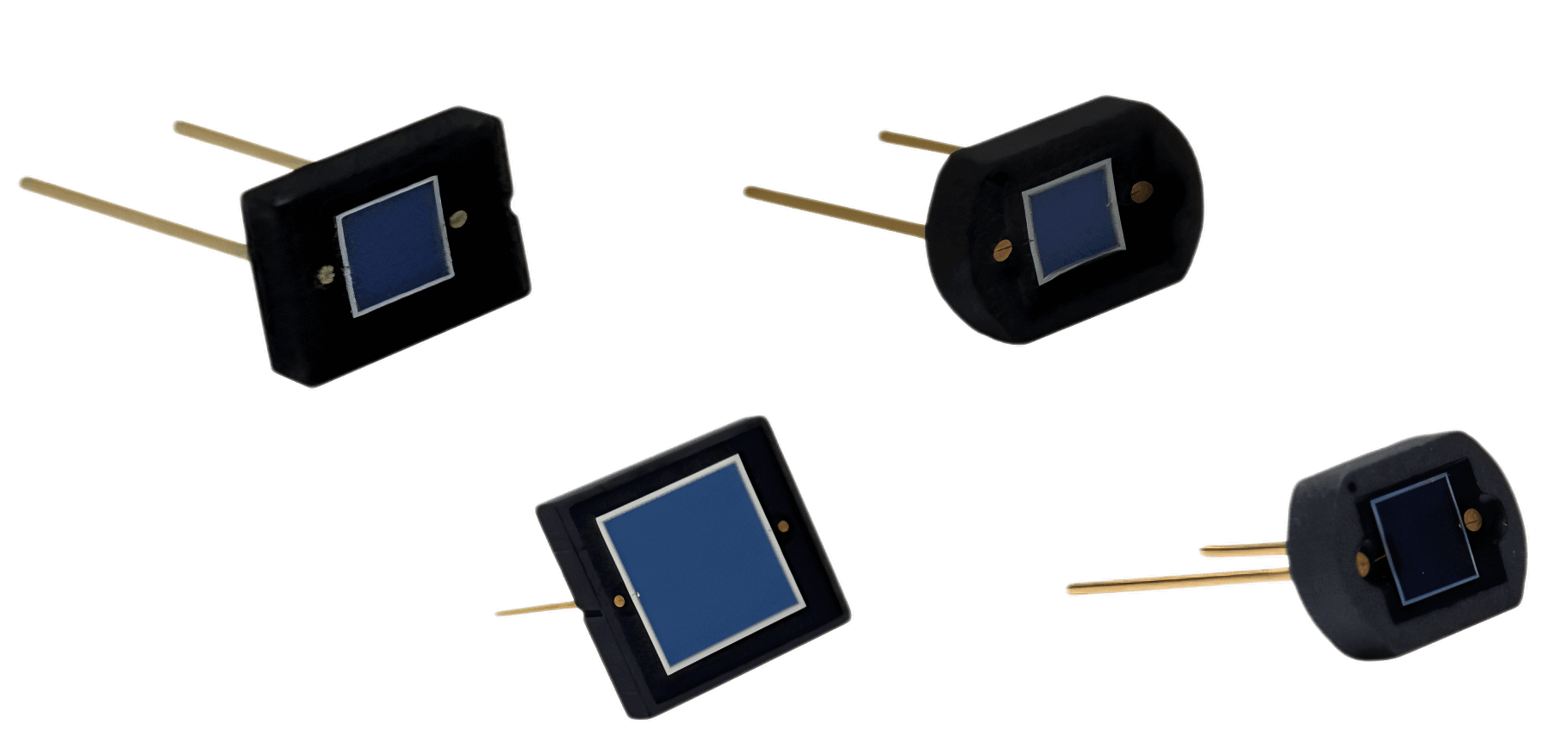

  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (with Shape)2.6×2.6mm (Square)Dark Current (Typ./Max., pA)2.5/15
Junction Capacitance (Typ., pF)70Rise Time (Typ., μs)0.15
Shunt Resistance (Min., GΩ)4Equivalent Noise Power (Typ., W/Hz¹/²)3.9×10⁻¹⁵
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD10-001
3.2×3.2mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD10-201
3.2×3.2mm square photosensitive surface, optimized for near-infrared.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD34-101
5.8×5.8mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD100-101
10×10mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included
