Low Dark Current Silicon PIN Photodiode (DIP package)

Part Number: PDCD10-201

Optimized for a peak wavelength of 800nm, the near-infrared band (760~1060nm) is suitable for detection scenarios dominated by near-infrared; the peak optimization compensates for the weak near-infrared response of ordinary models.


It can directly replace the latter to adapt to near-infrared equipment without adjusting the circuit or optical structure.

Caution

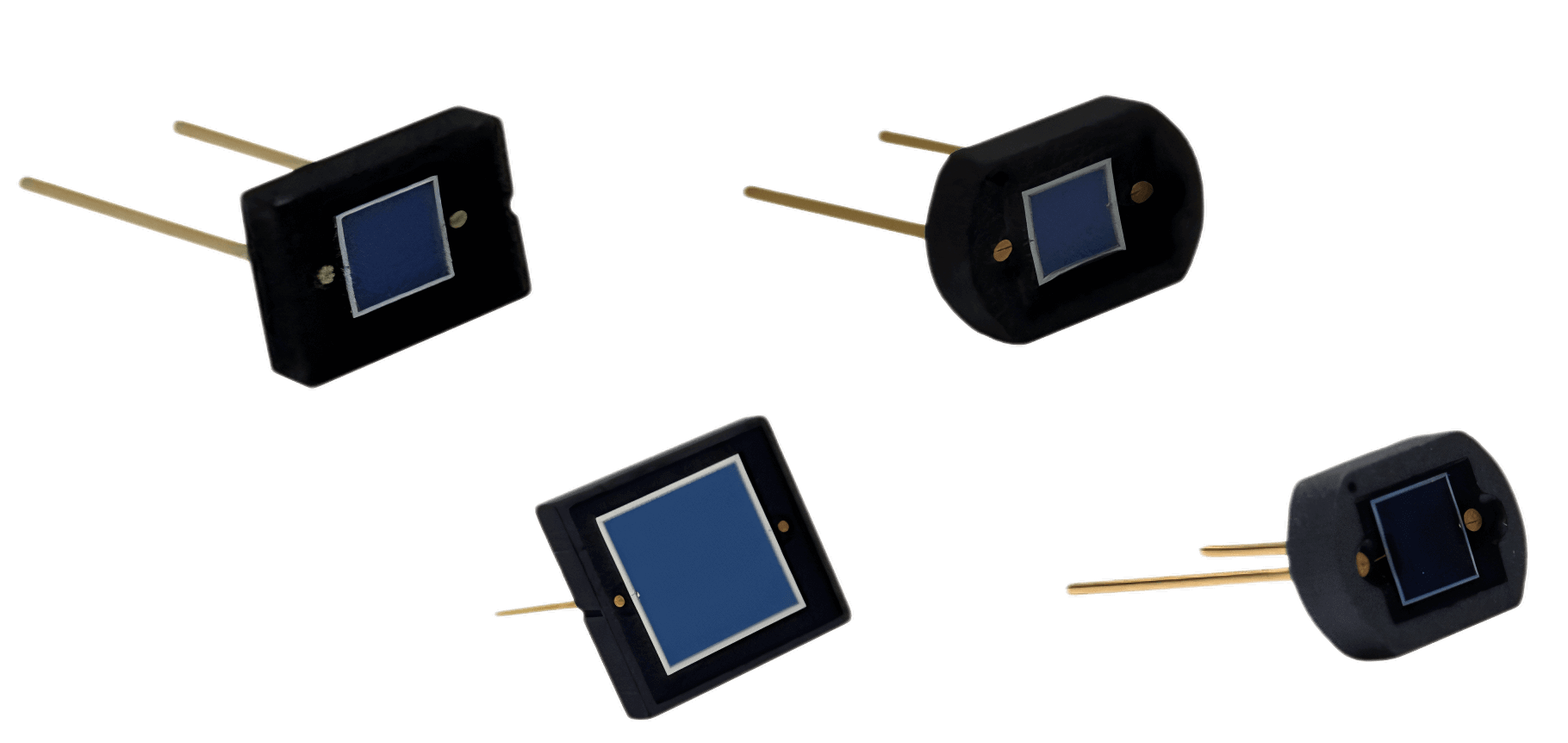

  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (with Shape)3.2×3.2mm (Square)Dark Current (Typ./Max., pA)3.5/20
Junction Capacitance (Typ., pF)115 Rise Time (Typ., μs)0.25
Shunt Resistance (Min., GΩ)3Equivalent Noise Power (Typ., W/Hz¹/²)4.6×10⁻¹⁵
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Low Dark Current Silicon PIN Photodiode (DIP Package)

PDCD07-001
2.6×2.6mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD10-001
3.2×3.2mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD34-101
5.8×5.8mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD100-101
10×10mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included
