Low Dark Current Silicon PIN Photodiode (DIP package)

Part Number: PDCD34-101

Light-sensitive area: 33.64mm², with high light absorption efficiency, capable of capturing extremely weak large-area scattered light at the μW level; large-size products still use through-hole packaging, making later maintenance, insertion, removal and replacement convenient without the need to desolder the entire board.


Wide operating temperature range (-20~+80℃), low dark current drift coefficient at high temperatures, suitable for complex environments such as industrial workshops and outdoors.

Caution

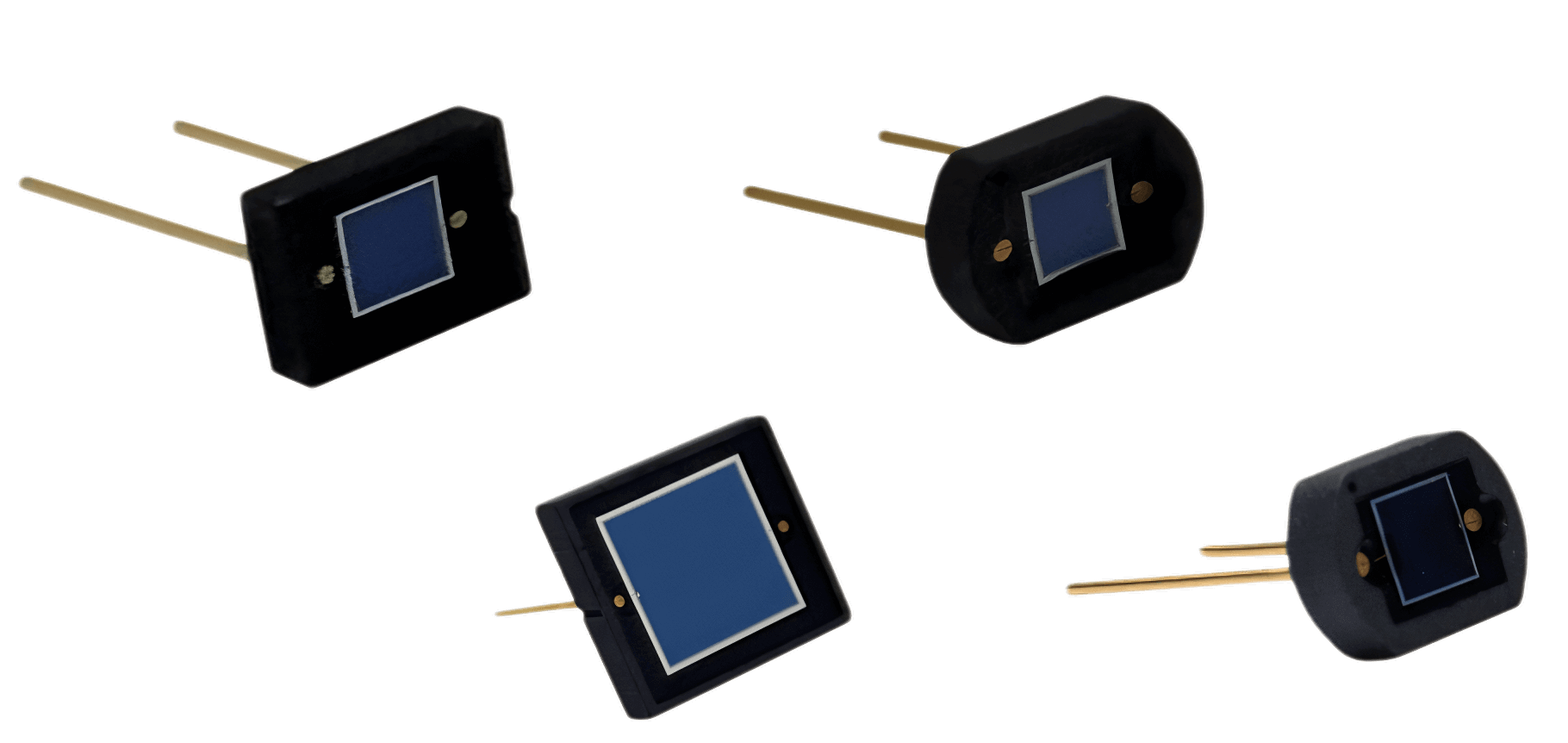

  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (with Shape)5.8×5.8mm (Square)Dark Current (Typ./Max., pA)5/30
Junction Capacitance (Typ., pF)400Rise Time (Typ., μs)0.9
Shunt Resistance (Min., GΩ)2Equivalent Noise Power (Typ., W/Hz¹/²)5.5×10⁻¹⁵
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Low Dark Current Silicon PIN Photodiode (DIP Package)

PDCD07-001
2.6×2.6mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD10-001
3.2×3.2mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD10-201
3.2×3.2mm square photosensitive surface, optimized for near-infrared.
Ships as soon as Same Day
Stock Items Included

Low Dark Current Silicon PIN Photodiode (DIP package)

PDCD100-101
10×10mm square photosensitive surface.
Ships as soon as Same Day
Stock Items Included
