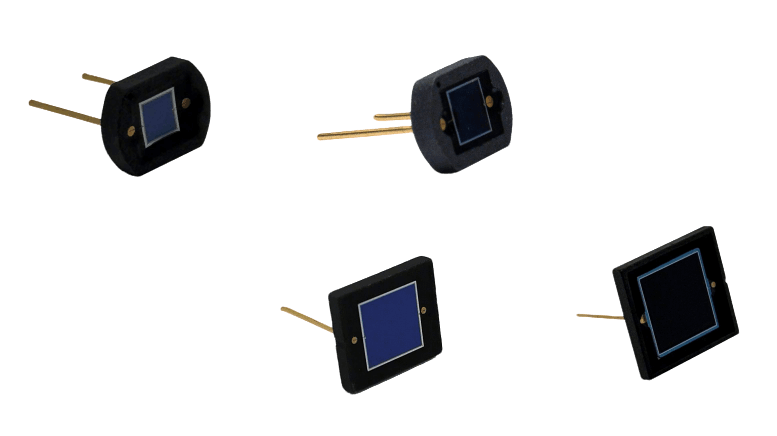

The largest photosensitive surface is combined with a quartz window, which takes into account both large-area detection and deep ultraviolet response. It is suitable for special scenarios that need to meet both "large detection range" and "deep ultraviolet monitoring" simultaneously, without the need for multiple device combinations.
It is suitable for light intensity monitoring of large-scale deep ultraviolet disinfection equipment (such as ultraviolet disinfection channels in sewage plants) and light power detection of wide-format deep ultraviolet curing production lines, expanding "light power detection" to the ultra-large range deep ultraviolet field.
| Photosensitive Area Size (mm) | 10×10 | Window Material | Quartz |
| Spectral Response Range (nm) | 250~1060 | Dark Current (Max, pA) | 800 |
| Junction Capacitance (Max, pF) | 1000 | Equivalent Noise Power (W/Hz¹/²) | 1.3×10⁻¹⁴ |
| Quantity | Price(USD) | Ship Date |
|---|---|---|
| 1-10 | TBD | |
| 10- | TBD |
