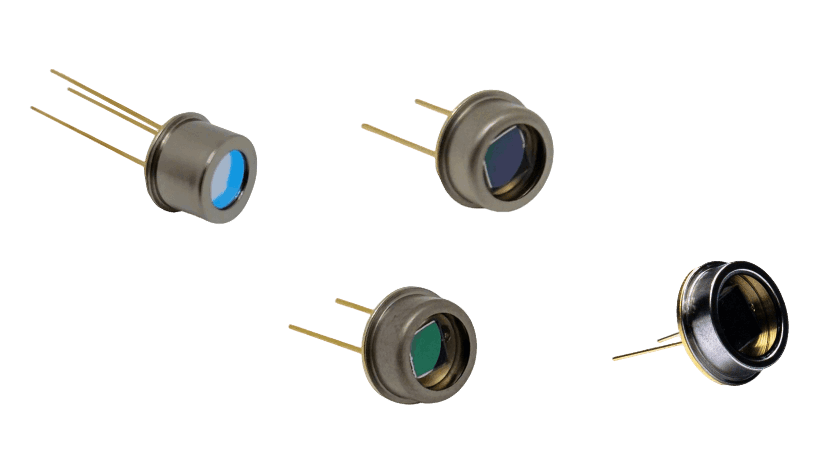

UV-enhanced Silicon PIN Photodiode (TO Package)

https://source.venuslabtech.com/mall-prod/ab724e5c-c84e-4fb4-bad7-96f603694683.png

UV-enhanced Silicon PIN Photodiode (TO Package)

Part Number: PDCT07-601

The small-sized photosensitive surface is suitable for compact circuit designs. The low dark current (30pA) reduces noise interference in weak light detection, and the fast rise time (0.13μs) can capture fluctuations in high-frequency optical signals.

The optical glass window has strong cost adaptability and is suitable for mass general scenarios.

Caution

Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (mm)	2.6×2.6	Window Material	Optical Glass/Flat Window
Spectral Response Range (nm)	320~1060	Dark Current (Max, pA)	30
Junction Capacitance (Max, pF)	80	Equivalent Noise Power (W/Hz¹/²)	6.1×10⁻¹⁵

Unit Price

Total

Ship Date

TBD

Qty.

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT07-602

The window material is upgraded to quartz (flat window), and the photosensitive surface size is 2.6×2.6mm.

Ships as soon as Same Day

Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT14-601

The window is made of optical glass (flat window), and the size of the photosensitive surface is 3.7×3.7mm.

Ships as soon as Same Day

Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT14-602

The window material is quartz (flat window), and the photosensitive surface size is 3.7×3.7mm.

Ships as soon as Same Day

Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT16-601

The window material is optical glass (flat window), and the photosensitive surface size is 4×4mm.

Ships as soon as Same Day

Stock Items Included
