UV-enhanced Silicon PIN Photodiode (TO Package)

Part Number: PDCT14-602

The combination of a medium photosensitive surface and a quartz window is suitable for medium-power deep ultraviolet detection.



It is applicable to the light intensity monitoring of medium-power deep ultraviolet curing equipment and medium-sized water quality ultraviolet sterilization effect detectors, expanding "light power detection" to the field of medium-power deep ultraviolet.

Caution

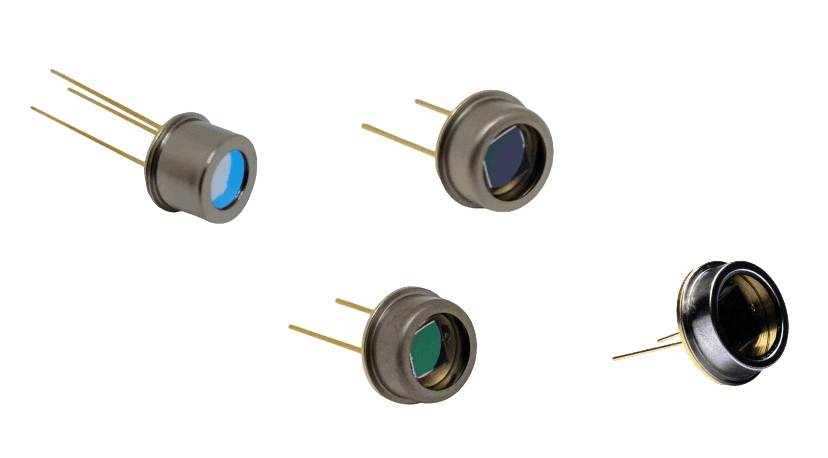

  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Photosensitive Area Size (mm)3.7×3.7Window MaterialQuartz/Flat Window
Spectral Response Range (nm)250~1060Dark Current (Max, pA)50
Junction Capacitance (Max, pF)150Equivalent Noise Power (W/Hz¹/²)7.6×10⁻¹⁵
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT07-601
Optical glass (flat window), photosensitive surface size 2.6×2.6mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT07-602
The window material is upgraded to quartz (flat window), and the photosensitive surface size is 2.6×2.6mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT14-601
The window is made of optical glass (flat window), and the size of the photosensitive surface is 3.7×3.7mm.
Ships as soon as Same Day
Stock Items Included

UV-enhanced Silicon PIN Photodiode (TO Package)

PDCT16-601
The window material is optical glass (flat window), and the photosensitive surface size is 4×4mm.
Ships as soon as Same Day
Stock Items Included
