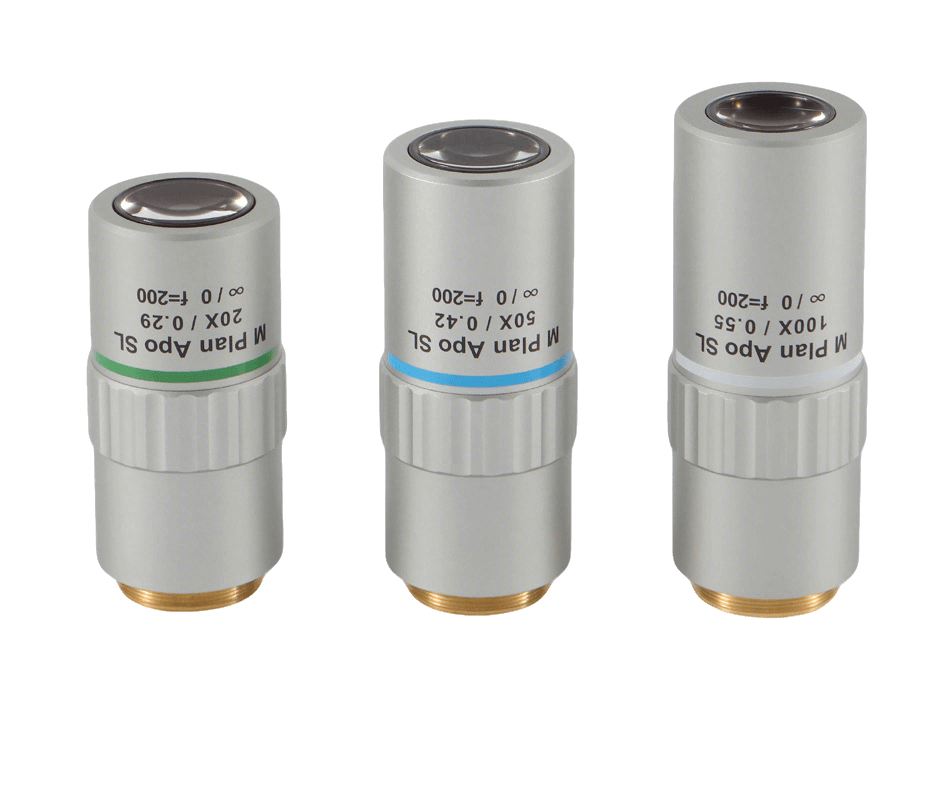

50× Class "Balance King": NA increased to 0.42, resolution jumped to 0.7μm (clearly distinguishable mitochondrial cristae), 20mm working distance still supports fine adjustment of the stage, breaking the contradiction of "high resolution must lose operability"; Apochromatic anti-distortion: the edge and center in the 1" camera field of view (0.19×0.26mm) have the same clarity, suitable for quantitative analysis of metal grain boundaries and thin film pinhole defects.
Applied to:
Observation of cell organelle details, analysis of aluminum alloy aging phases, positioning of defects between photovoltaic film layers
| NA | 0.42 | WD | 20mm |
| ±D.F | 1.6um | Φ24 Eyepiece Field of View | 0.48mm |
| Quantity | Price(USD) | Ship Date |
|---|---|---|
| 1-10 | TBD | |
| 10- | TBD |
