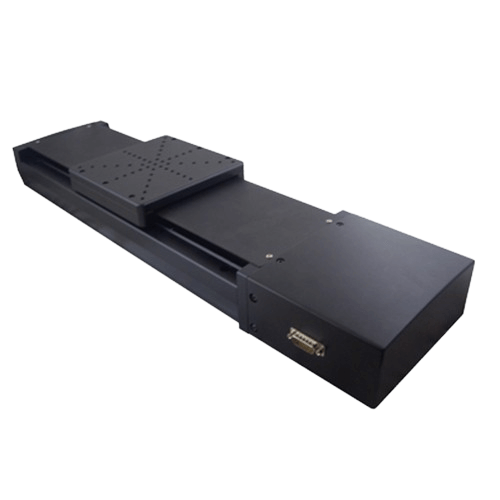

VL-210UPTA-(50-600)H

Part Number: VL-210UPTA-H50

Advantages: Compact and flexible, suitable for precision operations in small spaces

Differences: Load capacity of 20kg, speed of 40mm/sec, being the smallest specification in the series

Applications: Micro-displacement positioning in optical experiments

Download

VL-210UPTA-(50-600)H

Images are for display purposes only.

Specifications

Travel Range	Load Capacity	Weight	Overall Length
50mm	20kg	2.8kg	460mm

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Load Capacity	Overall Length	Weight
	VL-210UPTA-H100	100mm	20kg	510mm	3.4kg		VL-210UPTA-H150	150mm	30kg	560mm	4.5kg		VL-210UPTA-H200	200mm	30kg	610mm	5.2kg		VL-210UPTA-H300	300mm	30kg	710mm	6.3kg		VL-210UPTA-H400	400mm	50kg	810mm	7.2kg		VL-210UPTA-H500	500mm	50kg	910mm	8.3kg		VL-210UPTA-H600	600mm	50kg	1010mm	10.3kg
