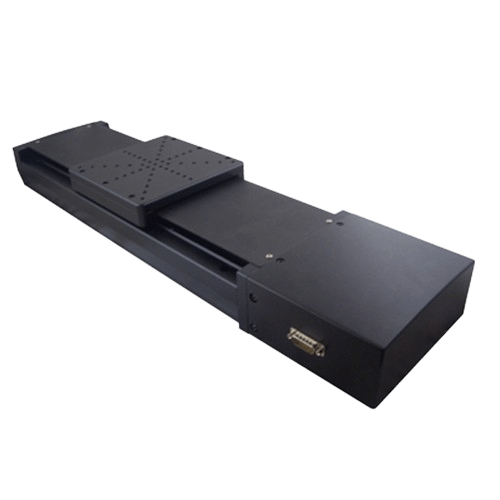

VL-210UPTA-(50-600)H

Part Number: VL-210UPTA-H600

Advantages: Extreme long stroke + high load, meeting the needs of large-scale equipment

Differences: Weight 10.3kg, speed 50mm/sec

Applications: Long-distance feed positioning for heavy industrial processing equipment

Download

VL-210UPTA-(50-600)H

Images are for display purposes only.

Specifications

Travel Range	Load Capacity	Weight	Overall Length
600mm	50kg	10.3kg	1010mm

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Load Capacity	Overall Length	Weight
	VL-210UPTA-H50	50mm	20kg	460mm	2.8kg		VL-210UPTA-H100	100mm	20kg	510mm	3.4kg		VL-210UPTA-H150	150mm	30kg	560mm	4.5kg		VL-210UPTA-H200	200mm	30kg	610mm	5.2kg		VL-210UPTA-H300	300mm	30kg	710mm	6.3kg		VL-210UPTA-H400	400mm	50kg	810mm	7.2kg		VL-210UPTA-H500	500mm	50kg	910mm	8.3kg
