VenusLab Nano & Motorized Series

Part Number: VL-IM-X17-20

Advantages:Power-off self-locking, infinite stroke – ultra-compact (17mm width), no drift, low heat.

Differentiation:Preciser than motorized stages (no backlash); longer stroke vs piezo, power-off hold.

Applications:Handheld microscopes, vacuum chamber operations, portable medical devices.

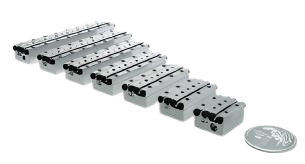

Images are for display purposes only.

Specifications

Axis Configuration	Travel Range	Resolution	Max Speed
1 Axis (X)	20 mm	1 nm	2 mm/s

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Axis Configuration	Resolution	Max Speed
	VL-Nano-X1000	1 mm	1 Axis (X)	2 nm	Millisecond-Level Response		VL-Hex-90-S	±12mm / ±10°	6 Axes (6-DOF)	0.1 μm	10 mm/s		VL-MS-XY100-Lin	100 × 100 mm	2 Axes (XY)	10 nm	500 mm/s
