VenusLab Nano & Motorized Series

Overview

Nano Precision, Macro Reach

The VL-N/M series represents VenusLab's highest standard in the field of precision engineering. This series integrates cutting-edge technologies such as piezoelectric ceramics, stick-slip inertial drives, voice coil motors, and non-contact linear motors. Whether it is atomic-level microscopic imaging requiring 0.1nm steps, high-speed and high-throughput wafer scanning, or six-dimensional automatic coupling of complex optical paths, VL-N/M can provide turnkey solutions from core components to complete systems.

Applications

Nanoscale Z-axis focusing of the objective lens and XY fine scanning of the stage.
Automated alignment of fiber arrays and waveguides using a six-axis parallel mechanism.
High-speed linear motor scanning in wafer defect detection.
Piezoelectric tilting mirrors for atmospheric turbulence correction and rapid beam stabilization.

Mechanical Dimensions

Technical Specifications Table

Model	Axis	Travel / Range	Technology	Primary Application
Piezo Nanopositioning Stages
VL-Nano-X1000	X	1000 μm	Piezo Flexure	Long Range Scanning
VL-Nano-XYZ5-Micro	XYZ	5/5/5 μm	Piezo Flexure	Micro Precision Adjustment
VL-Nano-XY15	XY	15 μm	Piezo Flexure	Microscopy Imaging
VL-Nano-XY40	XY	40 μm	Piezo Flexure	Microscopy Imaging
VL-Nano-XYZ50-10	XYZ	50/50/10 μm	Piezo Flexure	3D Scanning
VL-Nano-XYZ100-15	XYZ	100/100/15 μm	Piezo Flexure	Confocal Microscopy
VL-Nano-XYZ100-20	XYZ	100/100/20 μm	Piezo Flexure	Confocal Microscopy
VL-Nano-XYZ100-15H	XYZ	100/100/15 μm	Piezo (Heavy Load)	High Load Scanning
VL-Nano-XYZ100-100H	XYZ	100 μm (All Axes)	Piezo (Heavy Load)	Full Range Scanning
VL-Nano-XYZ200-15H	XYZ	200/200/15 μm	Piezo (Heavy Load)	Large Range Scanning
VL-Nano-XYZ200-100H	XYZ	200/200/100 μm	Piezo (Heavy Load)	Large Range Scanning
VL-Nano-Z5-Micro	Z	5 μm	Piezo Flexure	Micro Z-Axis
VL-Nano-Z20-Shift	Z	20 μm	Piezo Phase Shift	Interferometric Phase Shifting
VL-Nano-Z-HighRes	Z	Custom	Piezo Phase Shift	High-Res Phase Shifting
VL-Nano-Z100-Obj	Z	100 μm	Piezo (Objective)	Objective Focusing
VL-Nano-Z100-Obj2	Z	100 μm	Piezo (Objective)	Objective Focusing
VL-Nano-Z100-Ap	Z	100 μm (Lg. Aperture)	Piezo (Aperture)	Laser Processing
VL-Nano-Z500-Ap	Z	500 μm	Piezo (Aperture)	Large Range Focusing
VL-Nano-Z150H	Z	150 μm	Piezo (Heavy Load)	Heavy Load Focusing
VL-Nano-Z250	Z	250 μm	Piezo Flexure	Z-Axis Stage
VL-Nano-Z1000	Z	1000 μm	Piezo Flexure	Ultra-Long Travel Z
VL-Nano-X20	X	20 μm	Piezo Flexure	Standard 1D
VL-Nano-Z8-Micro	Z	8 μm	Piezo Flexure	Micro 1D
VL-Nano-Z25-Pillar	Z	25 μm	Piezo Flexure	Pillar Integrated
VL-Nano-Z25	Z	25 μm	Piezo Flexure	Standard Z-Axis
VL-Nano-XY100-C	XY	100 μm	Piezo Flexure	Compact Type
VL-Nano-XY25	XY	25 μm	Piezo Flexure	Standard 2D
VL-Nano-XY100	XY	100 μm	Piezo Flexure	Standard 2D
VL-Nano-XY200	XY	200 μm	Piezo Flexure	Standard 2D
VL-Nano-XY100-Vac	XY	100 μm	Piezo (Vacuum)	Vacuum Chucking
VL-Nano-XY400-L	XY	400 μm	Piezo Flexure	Ultra-Large Travel
VL-Nano-XY100H	XY	100 μm	Piezo (Heavy Load)	Heavy Load
VL-Nano-XY200H	XY	200 μm	Piezo (Heavy Load)	Heavy Load
VL-Nano-AFM-20	XYZ	20/20/5 μm	Piezo Flexure	AFM Scanning
VL-Nano-XYZ-HighFreq	XYZ	25/25/20 μm	Piezo Flexure	High Freq Scanning
VL-Nano-XYZ100-20S	XYZ	100/100/20 μm	Piezo Flexure	Standard Microscopy
VL-Nano-XYZ200-20S	XYZ	200/200/20 μm	Piezo Flexure	Standard Microscopy
VL-Nano-XYZ400-100	XYZ	400/400/100 μm	Piezo Flexure	Ultra-Large 3D
Piezo Tip/Tilt Platforms
VL-TT-0.5	θxθy	0.5 mrad	Piezo Stack	Ultra-High Freq Steering
VL-TT-0.8	θxθy	0.8 mrad	Piezo Stack	High Freq Steering
VL-TT-2	θxθy	2 mrad	Piezo Stack	Beam Stabilization
VL-TT-4	θxθy	4 mrad	Piezo Stack	Laser Communication
VL-TT-2-V2	θxθy	2 mrad	Piezo Stack	Enhanced Version
VL-TT-4-V2	θxθy	4 mrad	Piezo Stack	Enhanced Version
VL-TT-4-V3	θxθy	4 mrad	Piezo Stack	Variant Version
VL-TT-8	θxθy	8 mrad	Piezo Stack	Large Angle Steering
VL-TT-X4Y6	θxθy	X:4 / Y:6 mrad	Piezo Stack	Asymmetric Steering
VL-VC-Mirror-10	θxθy	10 mrad	Voice Coil	Large Angle Low Freq
Motorized Stages
VL-Mot-X50	X	50 mm	Single Motor	Precision Positioning
VL-Mot-X100	X	100 mm	Single Motor	Precision Positioning
VL-Mot-X150	X	150 mm	Single Motor	Precision Positioning
VL-PiezoRot-80	θz	360°	Piezo Rotation	Precision Rotation
VL-PiezoRot-200	θz	360°	Piezo Rotation	Precision Rotation
VL-Mot-X50-D	X	50 mm	Dual Motor	High Speed/Thrust
VL-Mot-X100-D	X	100 mm	Dual Motor	High Speed/Thrust
VL-Mot-X150-D	X	150 mm	Dual Motor	High Speed/Thrust
VL-Mot-XY50	XY	50 mm	Motorized Combination	2D Scanning
VL-Mot-XY100	XY	100 mm	Motorized Combination	2D Scanning
VL-Mot-XY150	XY	150 mm	Motorized Combination	2D Scanning
VL-MS-XY8060-Mot	XY	80x60 mm	Motorized	Microscope Stage
VL-MS-XY8060-Hyb	XY	80x60 mm	Motor + Handwheel	Hybrid Microscopy
VL-MS-XY8060-Pzo	XY	80x60 mm	Piezo Ceramic	Nano-Scale Microscopy
VL-MS-XY100-Lin	XY	100x100 mm	Linear Motor	High Speed Automation
Inertial Motor Stages

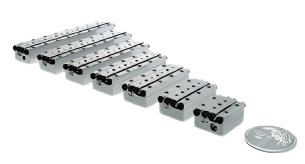

VL-IM-X17-12...60	X	12 - 60 mm	Inertial (Stick-Slip)	Compact / Self-Locking
VL-IM-XY50-25	XY	25x25 mm	Inertial (Stick-Slip)	Compact 2D
VL-IM-Rot50	θz	360°	Inertial (Stick-Slip)	Infinite Rotation
VL-IM-Lift50	Z	20 mm	Inertial (Stick-Slip)	Compact Lift
VL-IM-Gonio50	θ	±10°	Inertial (Stick-Slip)	Compact Goniometer
VL-IM-6Axis-Sys	6-DOF	Combination	Inertial (Stick-Slip)	6-Axis Combination
Piezo Inserts & Hexapods
VL-Pzo-Insert-78	Z	100-300 μm	Piezo Amplified	Microscope Stage Z-Axis
VL-Pzo-Insert-79	Z	100-200 μm	Piezo Amplified	Microscope Stage Z-Axis
VL-Mot-XY-Int	XY	75-110 mm	Integrated Motorized	General Microscopy
VL-Mot-Lin-Gen	X	15-90 mm	Motorized Lead Screw	General Translation
VL-Mot-Gonio/Rot	θ	Multiple Specs	Motorized Worm Gear	General Rotation/Gonio
VL-Hex-90-S/K	6-DOF	±12mm/±10°	Hexapod (Parallel)	Spatial 6-DOF
