VL PZT Linear Motor
Cross-scale precision positioning platform
- Cross-Scale Motion: Beyond piezo micron stroke; 18–90mm cm-scale travel with 10nm ultra-high resolution.
- Zero-Drift Locking: Piezo friction drive, power-off self-locking, no thermal drift or jitter.
VenusLab Nano & Motorized Series
Full-Scenario Ultra-Precision Motion Control Solutions
- Sub-nanometer piezo resolution + linear/inertial motor large stroke – no micro-macro barrier.
- Fingernail-sized inertial to rigid 6-DOF hexapods – flexible spatial posture definition.
VenusLab Sensing & Control Series
Nano Closed-loop Control & Precision Feedback Hub
- Digital Intelligence:24-bit DSP with linearization/waveform algorithms – eliminates piezo hysteresis/nonlinearity.
- Extreme Sensing:≤0.1nm capacitive sensors (ultra-slim probes) – solves narrow-gap measurements.
VenusLab Piezo Motor Stages
Compact Nanometer Motion Control Solutions
- Integrated optical encoders for stable nanoscale positioning.
- 100mm/s response + high load capacity in an ultra-compact form factor.
VenusLab Piezo Rotation Stages
High-Dynamic Precision Angle Control Systems
- Ultrasonic piezo drive for 90°/s speed and 5kg load.
- Closed-loop optical feedback for 0.0001° precision alignment.
VenusLab Piezo Multi-Axis Stages
Integrated Multi-Dimensional Nanopositioning Systems
- High‑speed XY + 6‑axis parallel motion, zero cumulative error.
- Monolithic structure, 15kg load at 50nm resolution.

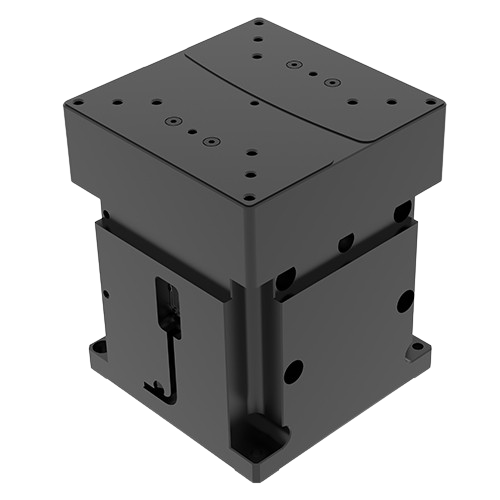

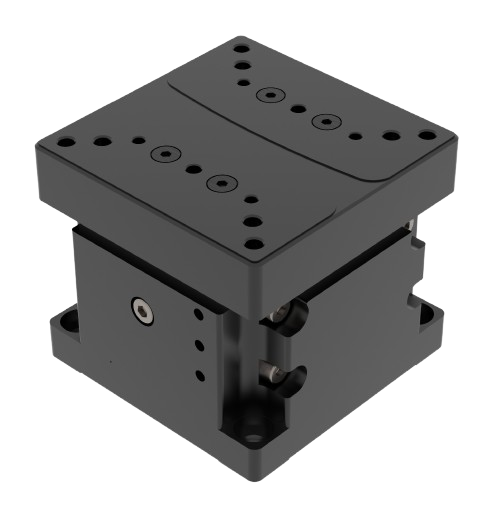

VenusLab Piezo Z-axis
High-Load Vertical Nanopositioning Systems
- Compact wedge‑drive, 10kg load, high stiffness.
- Self‑locking piezo, zero drift, nanometer hold.
VenusLab Piezo Motion Controller
Intelligent Core for Nanopositioning
- Works with all VenusLab piezo stages.
- Real‑time grating sensing for nanometer stability.
