UV-enhanced Silicon PIN Photodiode (TO Package)

Introduction:

TO-packaged ultraviolet-enhanced Si photodiodes with a spectral response of 250~1060nm, low dark current, low junction capacitance, and optimized ultraviolet response, suitable for optical power detection and optical analysis equipment.

It efficiently captures ultraviolet light signals while being compatible with the inherent near-infrared band (700~1100nm) response capability of silicon-based devices, meeting the requirements of direct plug-in circuit installation in industrial, laboratory and other scenarios.

Features:

• Metal packaging for dust and moisture protection and anti-aging
• Window core alignment for high-precision and suitable analysis
• Metal shell with excellent heat dissipation and low dark drift

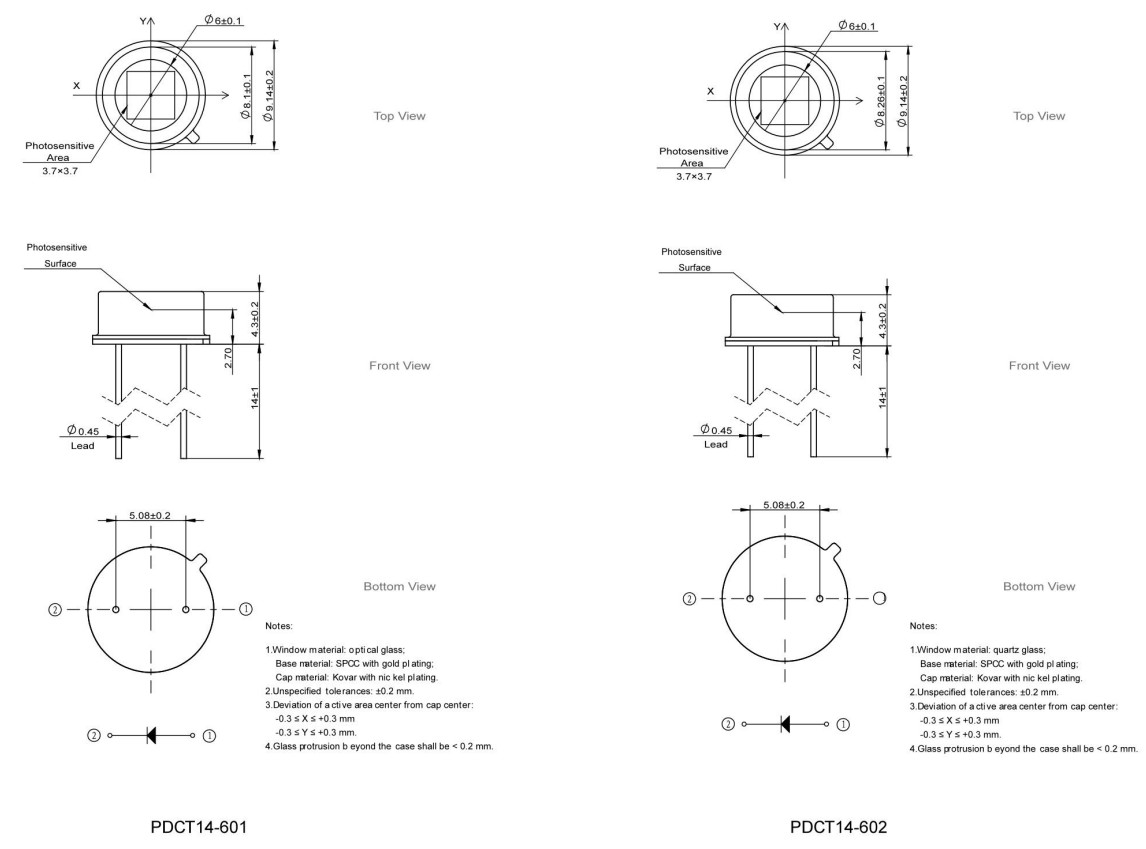

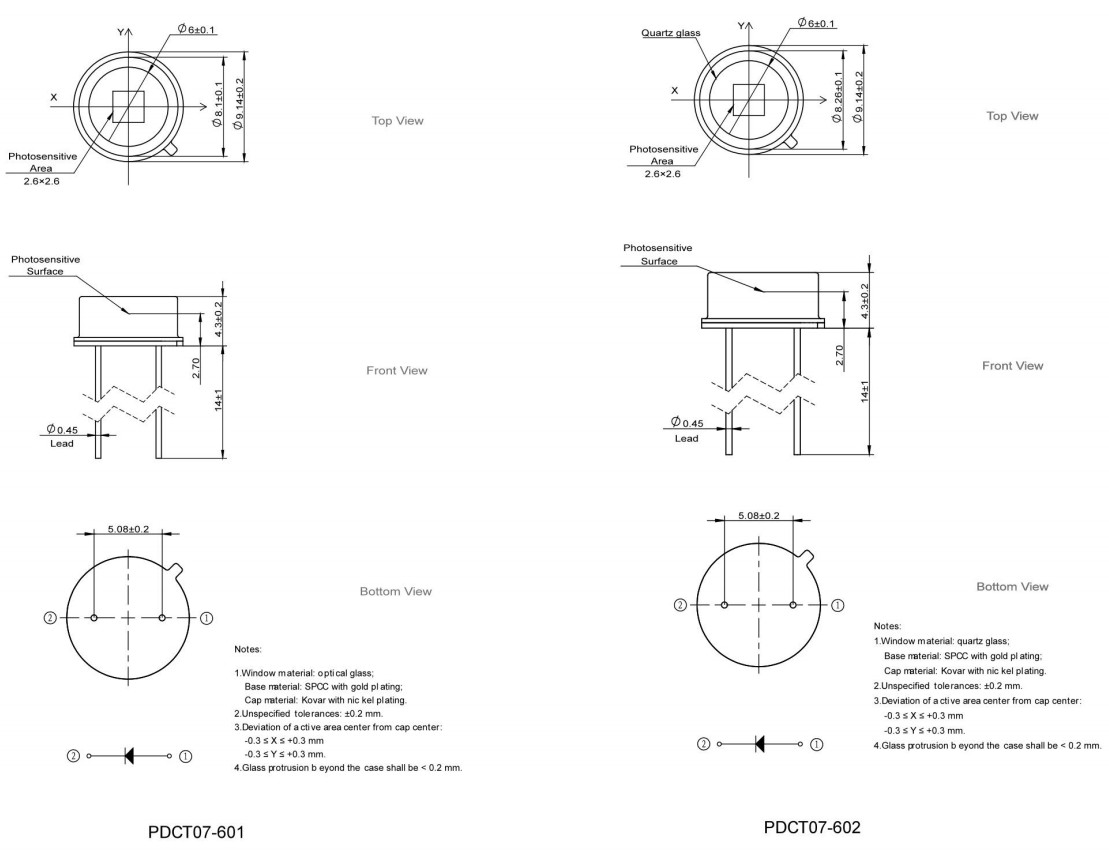

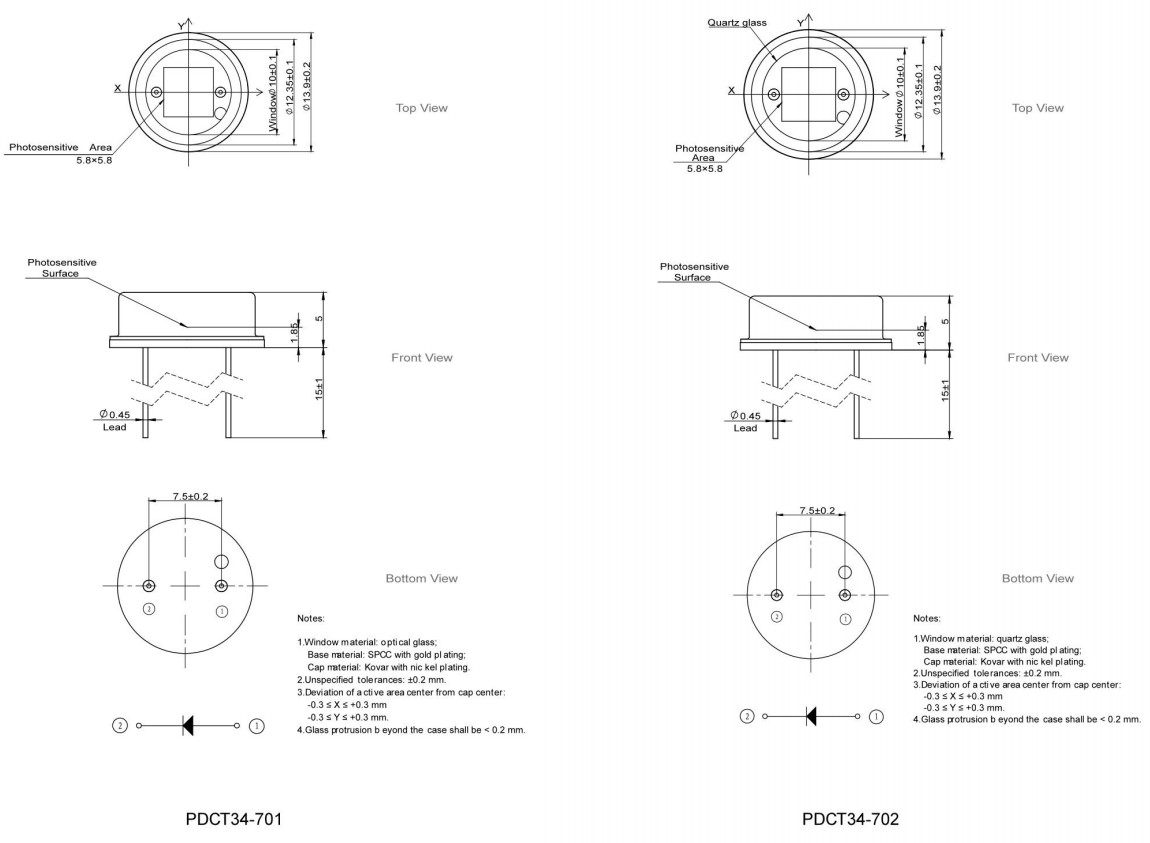

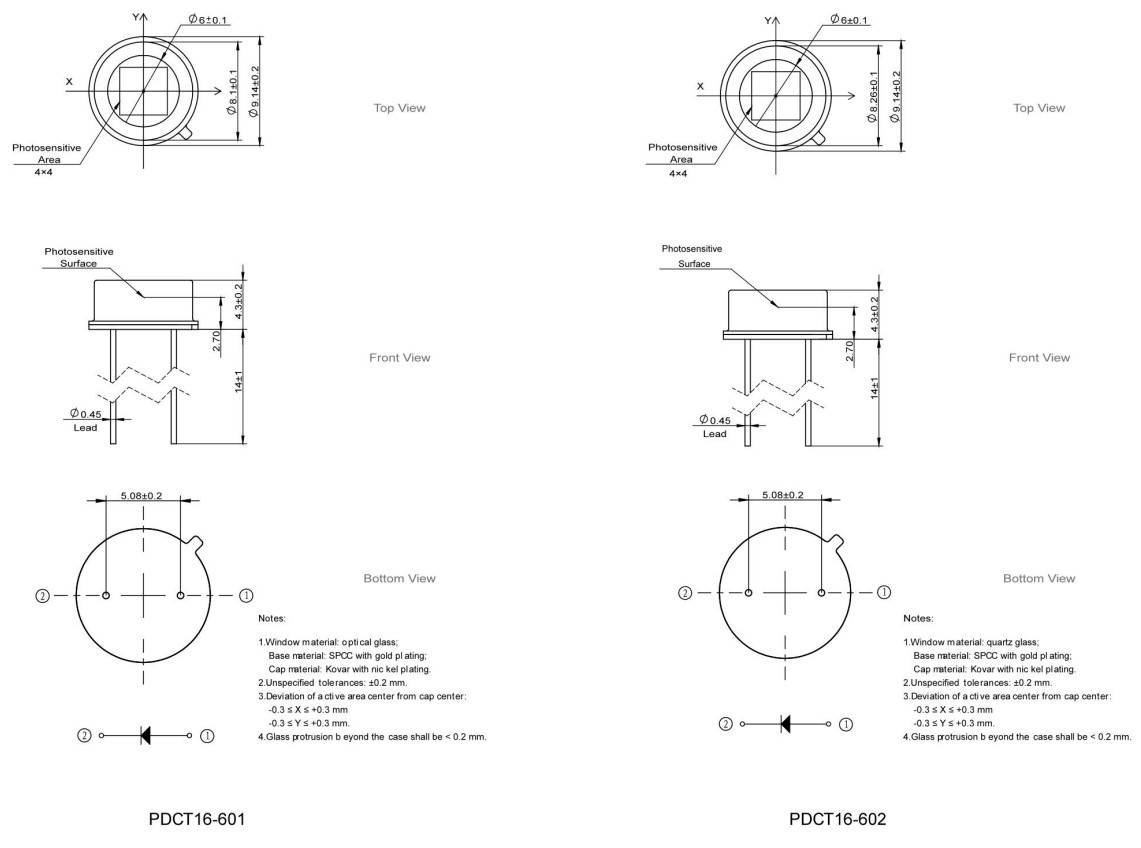

Dimension:

Common Parameter Specification Table

Spectral response

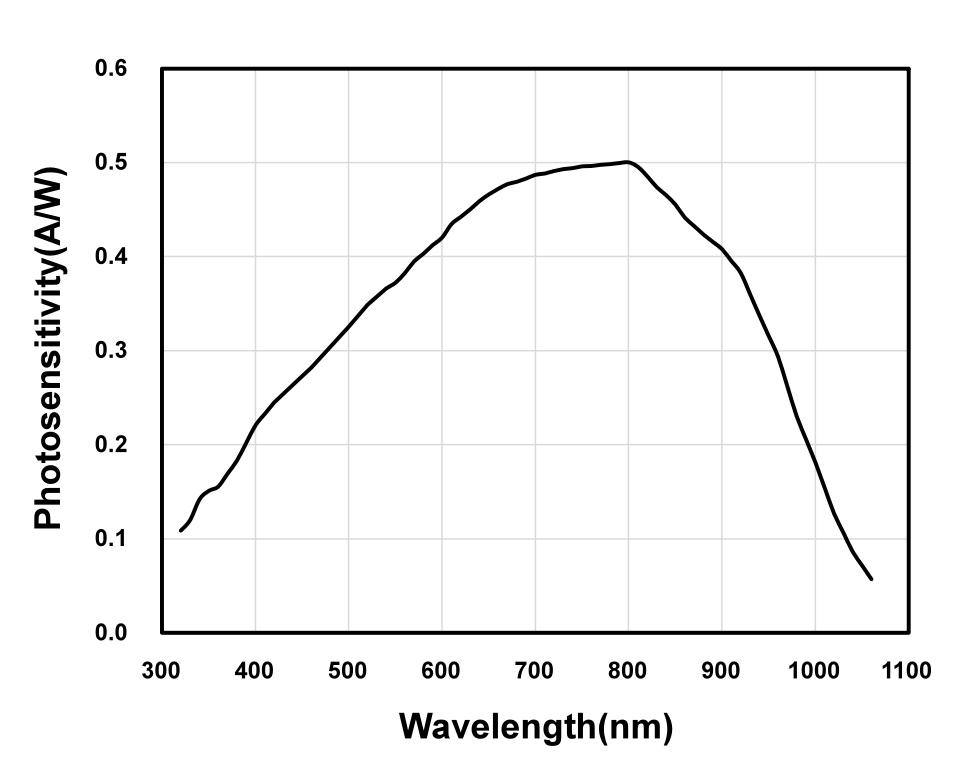

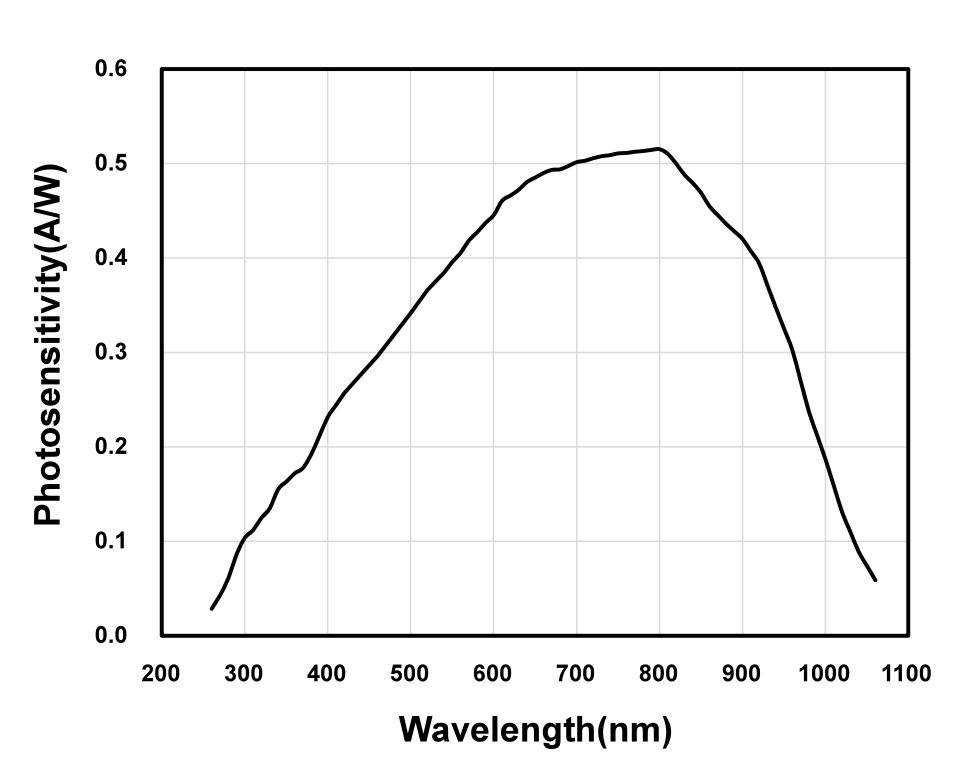

   Corresponding product - Optical glass window                    Corresponding product - Quartz window

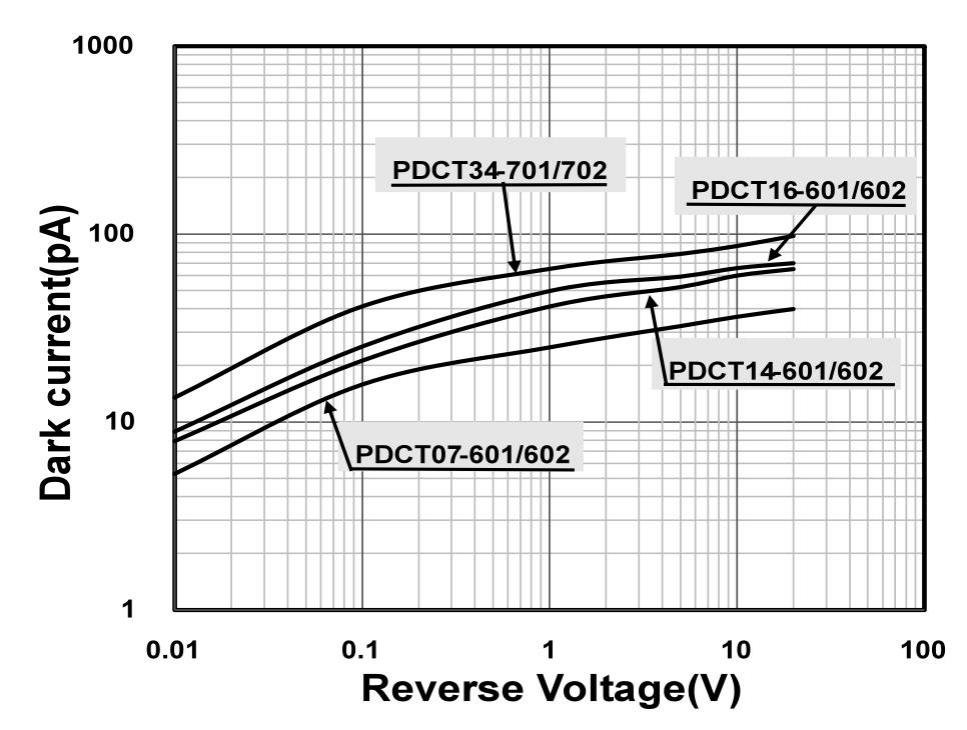

Dark current vs. reverse voltage

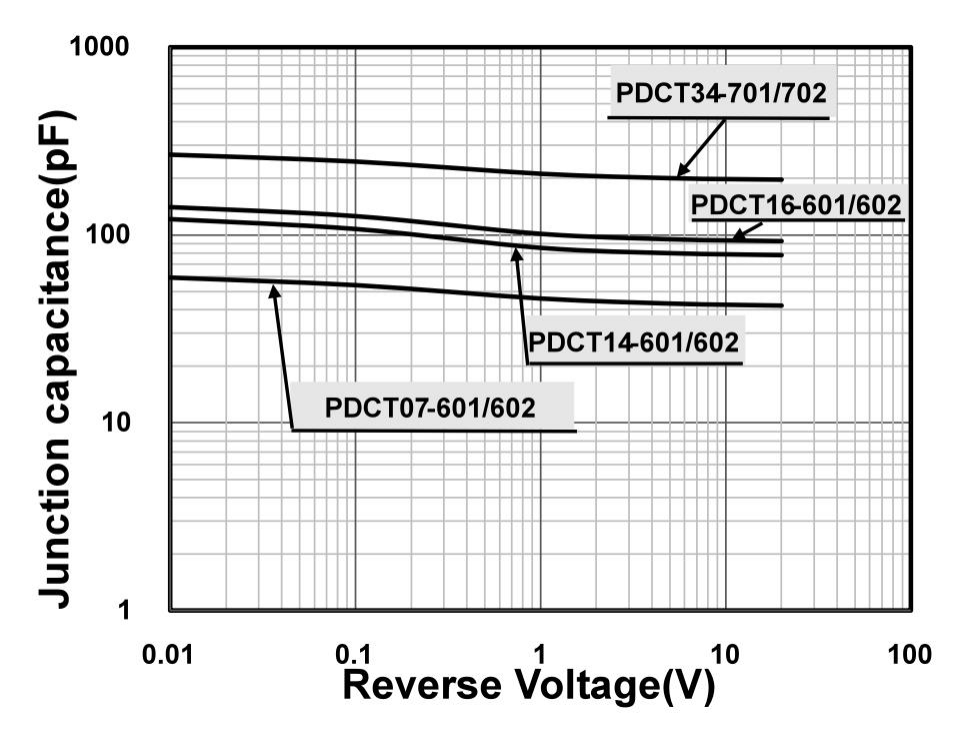

Junction capacitance vs. reverse voltage

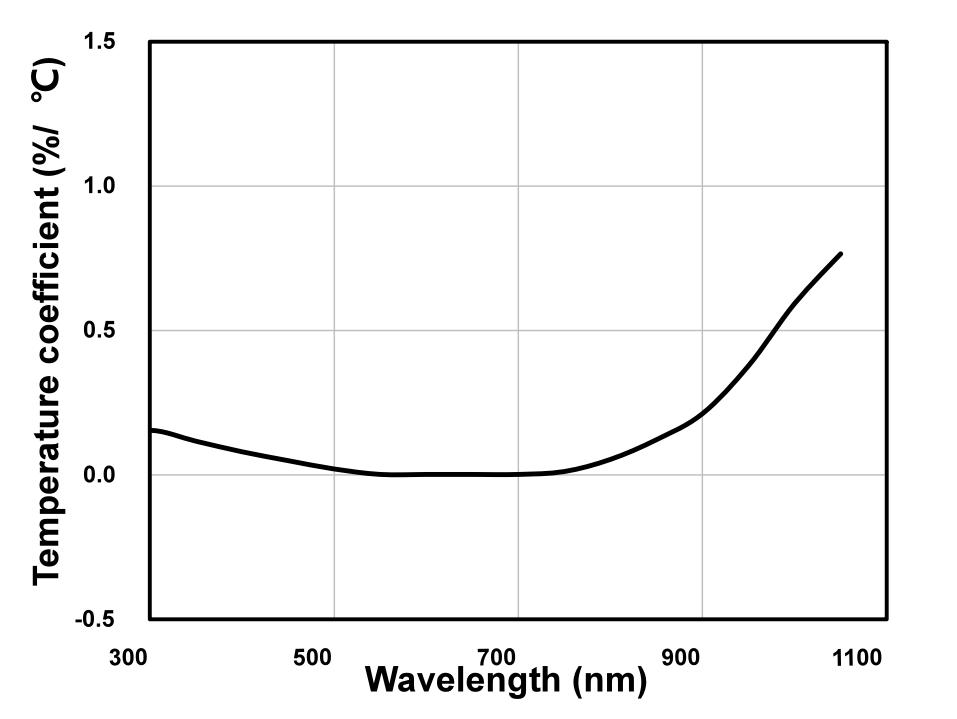

Photosensitivity temperature characteristic
