Silicon PIN photodiode in the ultraviolet to near-infrared band
产品编号: PDCT25-F01
It has better linearity of photocurrent, can withstand extreme storage environments, and has strong adaptability to transportation and inventory. The transmittance of quartz optical window to ultraviolet light is 30% higher than that of ordinary glass, improving the accuracy of ultraviolet detection.
It is suitable for ambient light monitoring equipment, such as outdoor ultraviolet radiation intensity detection (relying on quartz optical window and wide temperature working range), and weak light near-infrared signal capture (relying on large photosensitive surface and high shunt resistance).
注意事项

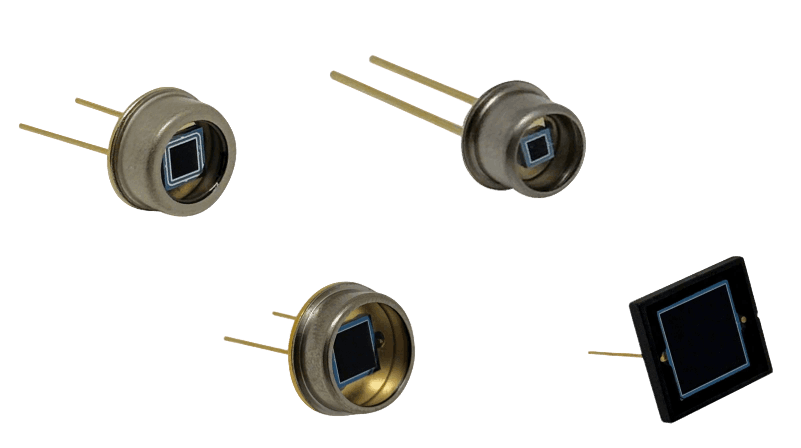

- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Package Type | TO8 | Photosensitive Area Size (mm) | 5.0×5.0 |
| Operating Temperature (℃) | -40 to +100 | Dark Current (Max, pA) | 120 |
| Junction Capacitance (pF) | 350 | Rise Time (μs) | 0.77 |
浏览全部型号
Silicon PIN photodiode in the ultraviolet to near-infrared band
PDCT01-F01
Spectral response: 190~1100nm, captures light across UV to near-infrared.
Silicon PIN photodiode in the ultraviolet to near-infrared band
PDCT06-F01
Pectral response 190~1100nm, peak wavelength 1000nm, excellent near-infrared responsivity.
Silicon PIN photodiode in the ultraviolet to near-infrared band
PDCD06-F01
No UV-NIR response gap, strong full-wavelength adaptability.
