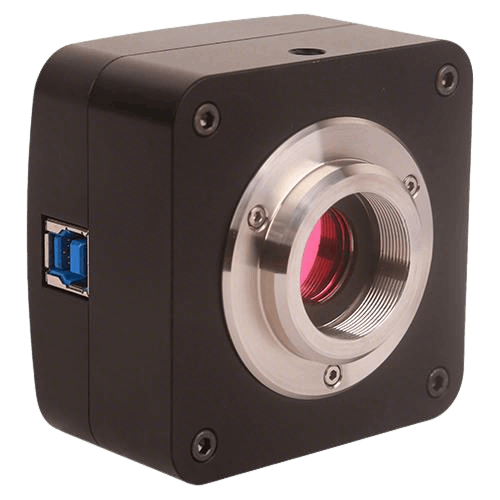

Venuslab ExView U3 Camera

Part Number: NM112000A

Dark current covers 580nm (1/30s, 12mV) + 660nm (F8.0), suitable for green fluorescence (such as GFP, around 580nm) and red light labeling.

4.4FPS@3388×2712 (full resolution), 4.4FPS@1694×1356 (×2 downsampling), exposure 0.06ms~1000s.

Images are for display purposes only.

Specifications

Sensor Model and Size	Pixel Pitch (μm)	Green Light Sensitivity & Dark Current	FPS/Resolution	Sampling Averaging	Exposure Time
12M/ICX834ALG(M) 1“ (13.15x8.77)	3.1x3.1	420mv with 1/30s 12mv with 1/30s (F8.0)	3.6@4248x2836 3.6@2124x1418	1x1 2x2	0.06ms~1000s

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Green Light Sensitivity & Dark Current	Sensor Model and Size	Exposure Time	Sampling Averaging	FPS/Resolution	Pixel Pitch (μm)
	NP112000A	420mv with 1/30s 15.2mv with 1/30s	12M/ICX834AQG(C) 1“ (13.15x8.77)	0.06ms~1000s	1x1 2x2	3.6@4248x2836 3.6@2124x1418	3.1x3.1		NP109000A	580mv with 1/30s 12mv with 1/30s	9.0M/ICX814AQG(C) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NM109000A	660mv with 1/30s 12mv with 1/30s (F8.0)	9.0M/ICX814ALG(M) 1“ (12.47x9.98)	0.06ms~1000s	1x1 2x2	4.4@3388x2712 4.4@1694x1356	3.69x3.69		NP106000A	880mv with 1/30s 8mv with 1/30s	6.0M/ICX694AQG(C) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NM106000A	1000mv with 1/30s 8mv with 1/30s	6.0M/ICX694ALG(M) 1“ (12.48x9.99)	0.06ms~1000s	1x1	7.5@2748x2200 14@2748x1092	4.54x4.54		NP102800A	800mv with 1/30s 4mv with 1/30s	2.8M/ICX674AQG(C) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NM102800A	950mv with 1/30s 4mv with 1/30s	2.8M/ICX674ALG(M) 2/3“ (8.81x6.63)	0.05ms~1000s	1x1	15@1938x1460 17@1610x1212 18@1930x1092	4.54x4.54		NP101400B	2000mv with 1/30s 4.8mv with 1/30s	1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)	0.07ms~1000s	1x1	25@1376x1040	6.45x6.45		NM101400B	2000mv with 1/30s 4.8mv with 1/30s	1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)	0.07ms~1000s	1x1	25@1376x1040	6.45x6.45
